HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Carburetor Installation - FE350 Parts Diagram

4x2 Utility Vehicle

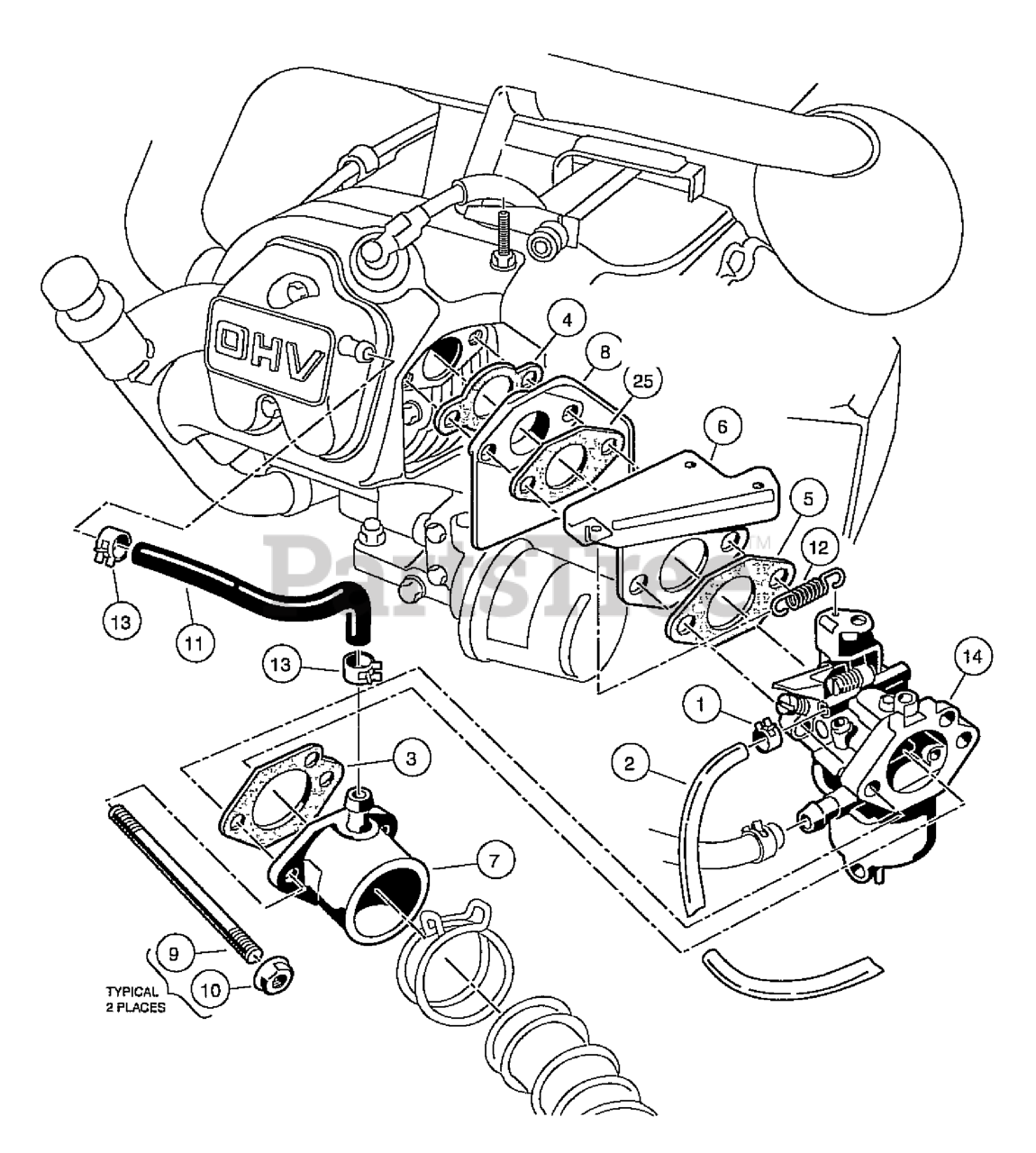

Carburetor Installation - FE350 Parts Diagram

  • Title

1

Husqvarna 603000185

CLAMP

$

$

Not available

2

Husqvarna 603000240

FUEL LINE

Note: (available by the foot)

$

$

Not available

3

Husqvarna 603000298

GASKET, CARB TO INTAKE MANIFOL

$

$

Not available

4

Husqvarna 603000299

GASKET, ENGINE TO INSULATOR

$

$

Not available

5

Husqvarna 603000300

GASKET, SPRG BRKT TO CARB OHV

$

$

Not available

6

Husqvarna 603000302

BRACKET, THROTTLE SPRG RETURN

$

$

Not available

7

Husqvarna 603000317

PIPE, INTAKE MANIFOLD

$

$

Not available

8

Husqvarna 603000470

INSULATOR, CARBURETOR

$

$

Not available

9

Husqvarna 603000472

STUD, M6-1.00 2-ENDED

$

$

Not available

10

Husqvarna 603000341

NUT

$

$

Not available

11

Husqvarna 603000352

TUBE, CRANKCASE VENT

$

$

Not available

12

Husqvarna 603000358

SPRING, THROTTLE RETURN

$

$

Not available

13

Husqvarna 603000411

CLAMP

$

$

Not available

14

Husqvarna 603002225

CARBURETOR ASSY, FE350D
(Superseded to 603003219)

Note: (includes items 15 through 24)

$

$

Not available

15

Husqvarna 603000468

HIGH ALTITUDE JET

$

$

Not available

16

Husqvarna 603000297

GASKET, CARB. BOWL OHV

$

$

Not available

17

Husqvarna 603000319

FLOAT ASSEMBLY

$

$

Not available

18

Husqvarna 603000325

SCREW ASSEMBLY

$

$

Not available

19

Husqvarna 603000361

BOLT

$

$

Not available

20

Husqvarna 603000409

CHAMBER ASSEMBLY - FLOAT

Note: (includes item 21)

$

$

Not available

21

Husqvarna 603000324

SCREW ASSEMBLY

$

$

Not available

22

Husqvarna 603002250

JET, #40 PILOT
(Superseded to 603003242)

$

$

Not available

23

Husqvarna 603002252

NOZZLE MAIN
(Superseded to 603003244)

$

$

Not available

24

Assembly, Pilot Air Screw

$

$

Not available

25

Husqvarna 603000620

GASKET, INSULATOR TO BRACKET

$

$

Not available
