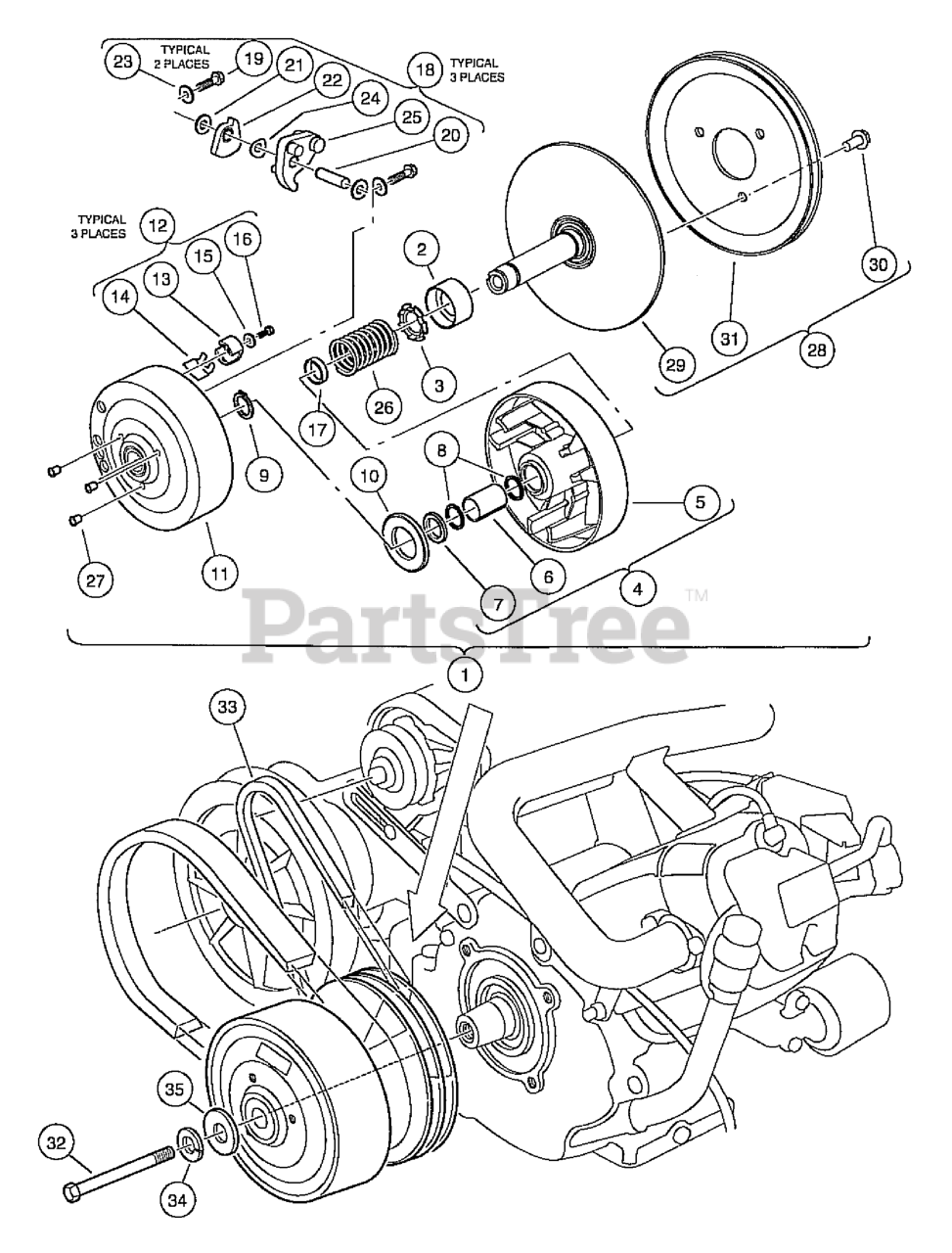

HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Drive Clutch Parts Diagram

4x2 Utility Vehicle

Drive Clutch Parts Diagram

  • Title

1

Husqvarna 603002360

DRIVE CLUTCH ASSY. FE 350/272

Note: (includes items 2 through 28)

$

$

Not available

2

Husqvarna 603000195

BEARING IDLER

$

$

Not available

3

Husqvarna 603000196

RETAINER, SPRING

$

$

Not available

4

Husqvarna 603000197

MOVABLE FACE ASSEMBLY

Note: (includes items 5 through 7)

$

$

Not available

5

Drive Clutch Movable Face

$

$

Not available

6

Bushing, Split

$

$

Not available

7

Husqvarna 603000198

RETAINER

$

$

Not available

8

Husqvarna 603000199

RING, SPIRAL BACKUP

$

$

Not available

9

Husqvarna 603000200

RING .810" INTERNAL

$

$

Not available

10

Husqvarna 603000201

WASHER, THRUST

$

$

Not available

11

Husqvarna 603000202

DRIVE HUB ASSY

$

$

Not available

12

Husqvarna 603000227

DRIVE CLUTCH BUTTON KIT

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000203

DRIVER, DRIVE CLUTCH

$

$

Not available

14

Husqvarna 603000219

SPRING, DRIVE BUTTON

$

$

Not available

15

Husqvarna 603000051

WASHER FLAT

$

$

Not available

16

Husqvarna 603000092

SCREW, # 10-24 X .50 HEX

$

$

Not available

17

Husqvarna 603000285

SPACER, FIXED FACE SHAFT

$

$

Not available

18

Husqvarna 603000369

DRIVE CLUTCH WEIGHT KIT DS OHV

Note: (includes items 19 through 25)

$

$

Not available

19

Husqvarna 603002064

SCREW, 1/4-20 X 1.00 HEX HEAD
(Superseded to 603003068)

$

$

Not available

20

Husqvarna 603002065

Pin, 0.3752 X 1.50 Dowel

$

$

Currently unavailable

21

Husqvarna 603000204

WASHER

$

$

Not available

22

Husqvarna 603002067

Clutch Weight, Secondary

$

$

Currently unavailable

23

Husqvarna 603002079

Washer

$

$

Currently unavailable

24

Husqvarna 603000282

WASHER, WAVE

$

$

Not available

25

Husqvarna 603002090

Weight, Primary

$

$

Currently unavailable

26

Husqvarna 603002156

SPRING-DRIVE CLUTCH FE350
(Superseded to 603003152)

$

$

Not available

27

Cap Plug

$

$

Not available

28

Husqvarna 603002361

KIT, FXD FACE DR ASM FE290/350

Note: (Includes items 29 through 31)

$

$

Not available

29

Fixed Face Assembly, Drive Clutch

$

$

Not available

30

Husqvarna 603000220

SCREW

$

$

Not available

31

Pulley, Clutch

$

$

Not available

32

Husqvarna 603000588

SCREW, 3/8-24 X 5.50 HEX HEAD
(Superseded to 603004380)

$

$

Not available

33

Husqvarna 603000589

BELT, STARTER-GENERATOR

$

$

Not available

34

Husqvarna 603000056

WASHER,LOCK,HEL SP 3/8 REG

$

$

Not available

35

Husqvarna 603000060

WASHER, 3/8 B FLAT
(Superseded to 603003617)

$

$

Not available
