HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Exhaust System - FE290 Engine Parts Diagram

4x2 Utility Vehicle

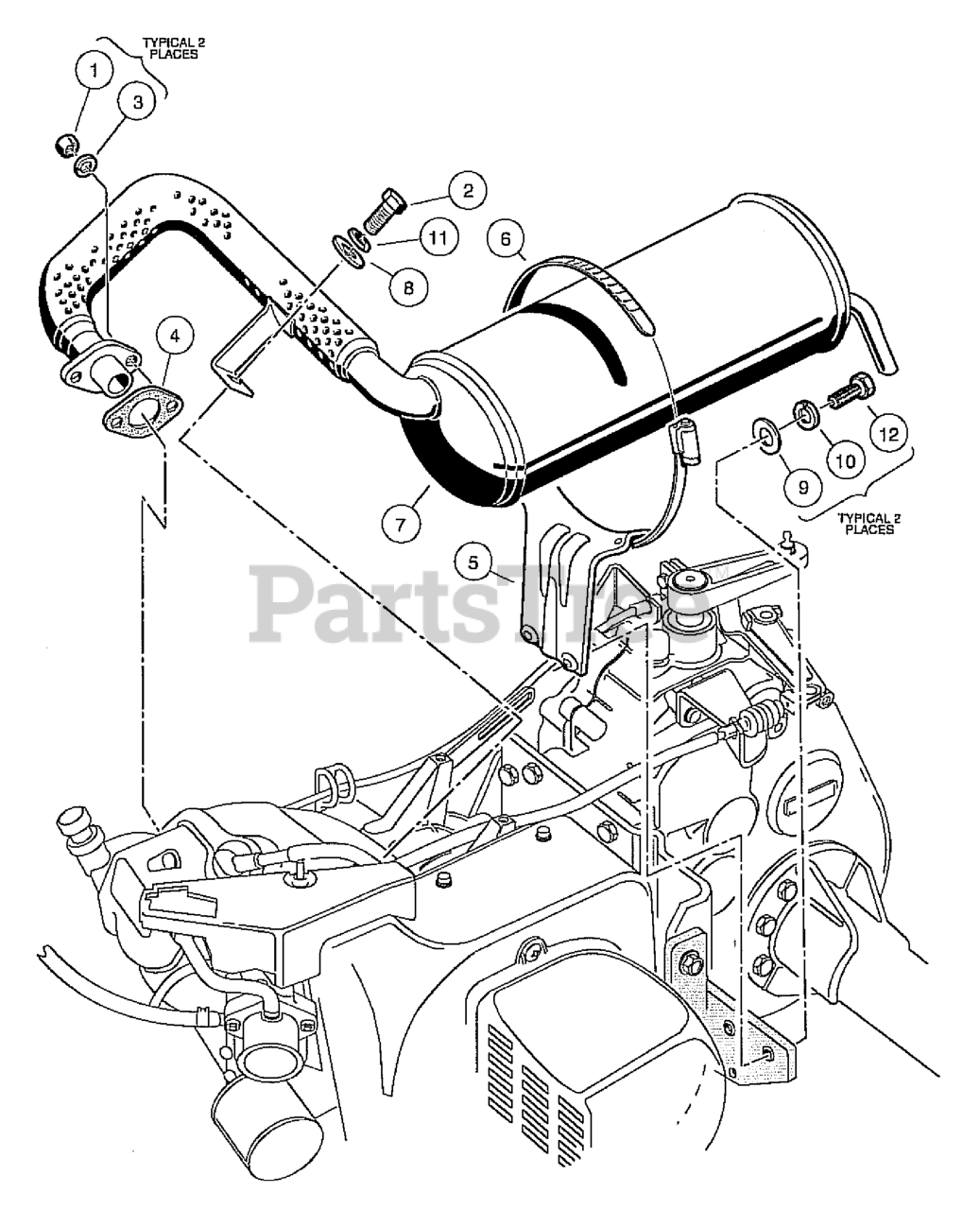

Exhaust System - FE290 Engine Parts Diagram

  • Title

1

Husqvarna 603000142

NUT, M8-1.25 HEX

$

$

Not available

2

Husqvarna 603000158

SCREW
(Superseded to 603000579)

$

$

Not available

3

Husqvarna 603000184

LOCKWASH

$

$

Not available

4

Husqvarna 603002084

GASKET, OHV EXHAUST
(Superseded to 603003083)

$

$

Not available

5

Husqvarna 603000270

BRACKET, MUFFLER MOUNTING

$

$

Not available

6

Husqvarna 603000431

CLAMP, 5" MUFFLER HOSE

$

$

Not available

7

Husqvarna 603002203

EXHAUST SYSTEM, FE290
(Superseded to 603003197)

$

$

Not available

8

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

9

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

10

Husqvarna 603000058

LOCKWASHER, 1/4 HELICAL SPLIT

$

$

Not available

11

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

12

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available
