HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Cylinder Head Parts Diagram

4x2 Utility Vehicle

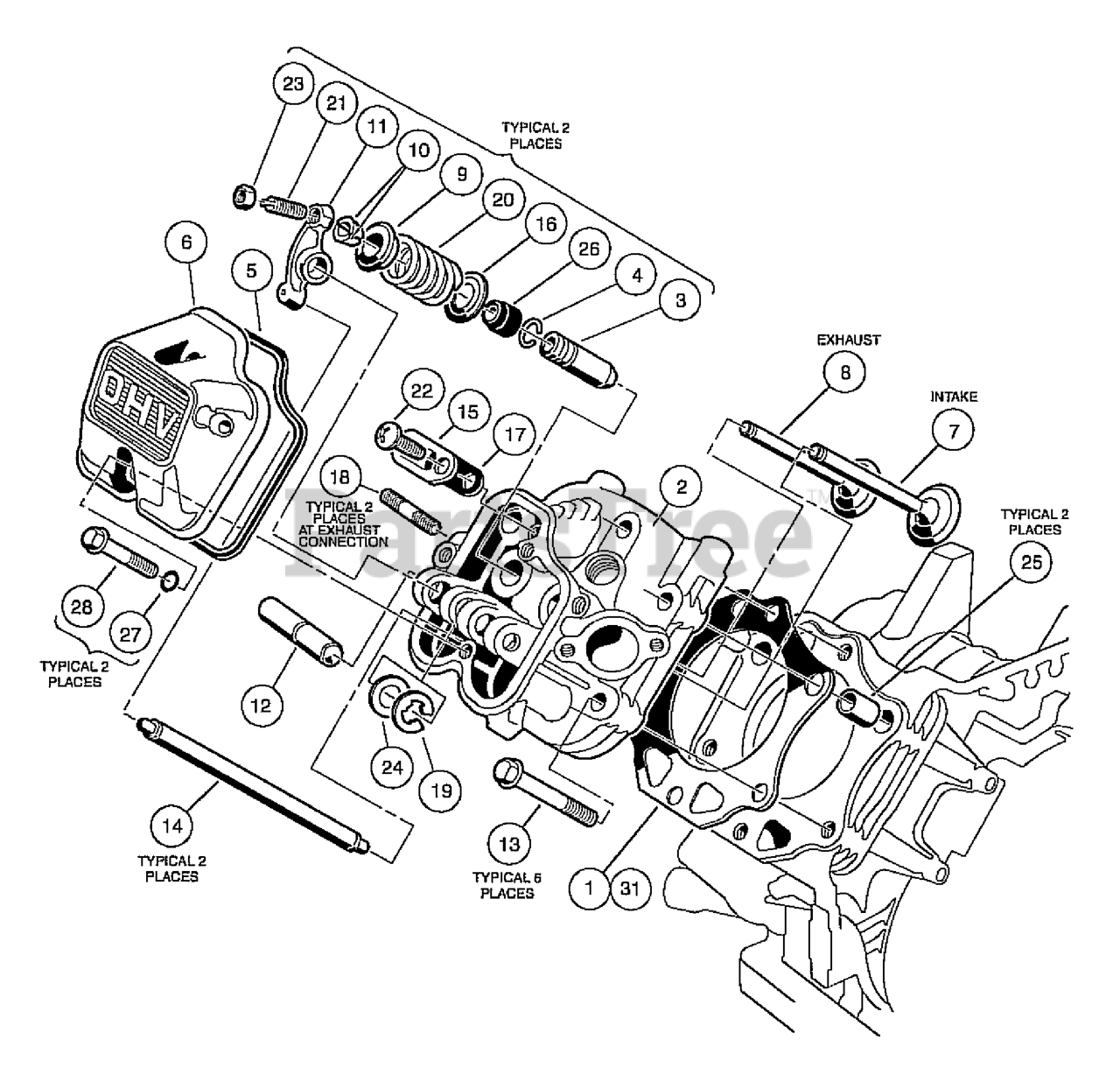

FE290 Engine - Cylinder Head Parts Diagram

  • Title

1

Husqvarna 603002101

GASKET, FE290 HEAD
(Superseded to 603003097)

$

$

Not available

2

Husqvarna 603002102

HEAD ASSY, FE290 CYLINDER
(Superseded to 603003098)

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna 603000331

GUIDE, VALVE, INTAKE

$

$

Not available

4

Husqvarna 603000343

SNAP RING

$

$

Not available

5

Husqvarna 603000296

GASKET, ROCKER CASE

$

$

Not available

6

Husqvarna 603000301

CASE, ROCKER -W/O LOGO FE290

$

$

Not available

7

Husqvarna 603002107

VALVE - INTAKE
(Superseded to 603003103)

$

$

Not available

8

Husqvarna 603002108

VALVE - EXHAUST
(Superseded to 603003104)

$

$

Not available

9

Husqvarna 603000304

RETAINER - VALVE SPRING

$

$

Not available

10

Husqvarna 603000305

COLLET

$

$

Not available

11

Husqvarna 603002109

ARM - ROCKER
(Superseded to 603003105)

$

$

Not available

12

Husqvarna 603000306

SHAFT - ROCKER

$

$

Not available

13

Husqvarna 603000311

BOLT, FLANGED

$

$

Not available

14

Husqvarna 603002119

ROD, PUSH
(Superseded to 603003115)

$

$

Not available

15

Husqvarna 603000315

PLATE

$

$

Not available

16

Husqvarna 603000316

SEAT, SPRING

$

$

Not available

17

Husqvarna 603000318

VALVE

$

$

Not available

18

Husqvarna 603000320

STUD, M8-1.25 2-ENDED

$

$

Not available

19

Husqvarna 603000330

CIRCLIP - TYPE - E

$

$

Not available

20

Husqvarna 603002130

SPRING, ENGINE VALVE
(Superseded to 603003126)

$

$

Not available

21

Husqvarna 603002137

SCREW
(Superseded to 603003133)

$

$

Not available

22

Husqvarna 603000339

SCREW

$

$

Not available

23

Husqvarna 603002138

NUT
(Superseded to 603003134)

$

$

Not available

24

Husqvarna 603000342

WASHER, 12.1X19X1.8

$

$

Not available

25

Husqvarna 603000346

PIN

$

$

Not available

26

Husqvarna 603000348

SEAL, OIL

$

$

Not available

27

Husqvarna 603000349

O-RING

$

$

Not available

28

Husqvarna 603000359

BOLT, 6X35

$

$

Not available

29

Husqvarna 603002266

GASKET KIT, FE290
(Superseded to 603003255)

Note: (includes items 30 through 33)

$

$

Not available

30

Husqvarna 603002084

GASKET, OHV EXHAUST
(Superseded to 603003083)

$

$

Not available

31

Husqvarna 603002101

GASKET, FE290 HEAD
(Superseded to 603003097)

$

$

Not available

32

Husqvarna 603000299

GASKET, ENGINE TO INSULATOR

$

$

Not available

33

Husqvarna 603002106

GASKET, CRANKCASE COVER
(Superseded to 603003102)

$

$

Not available
