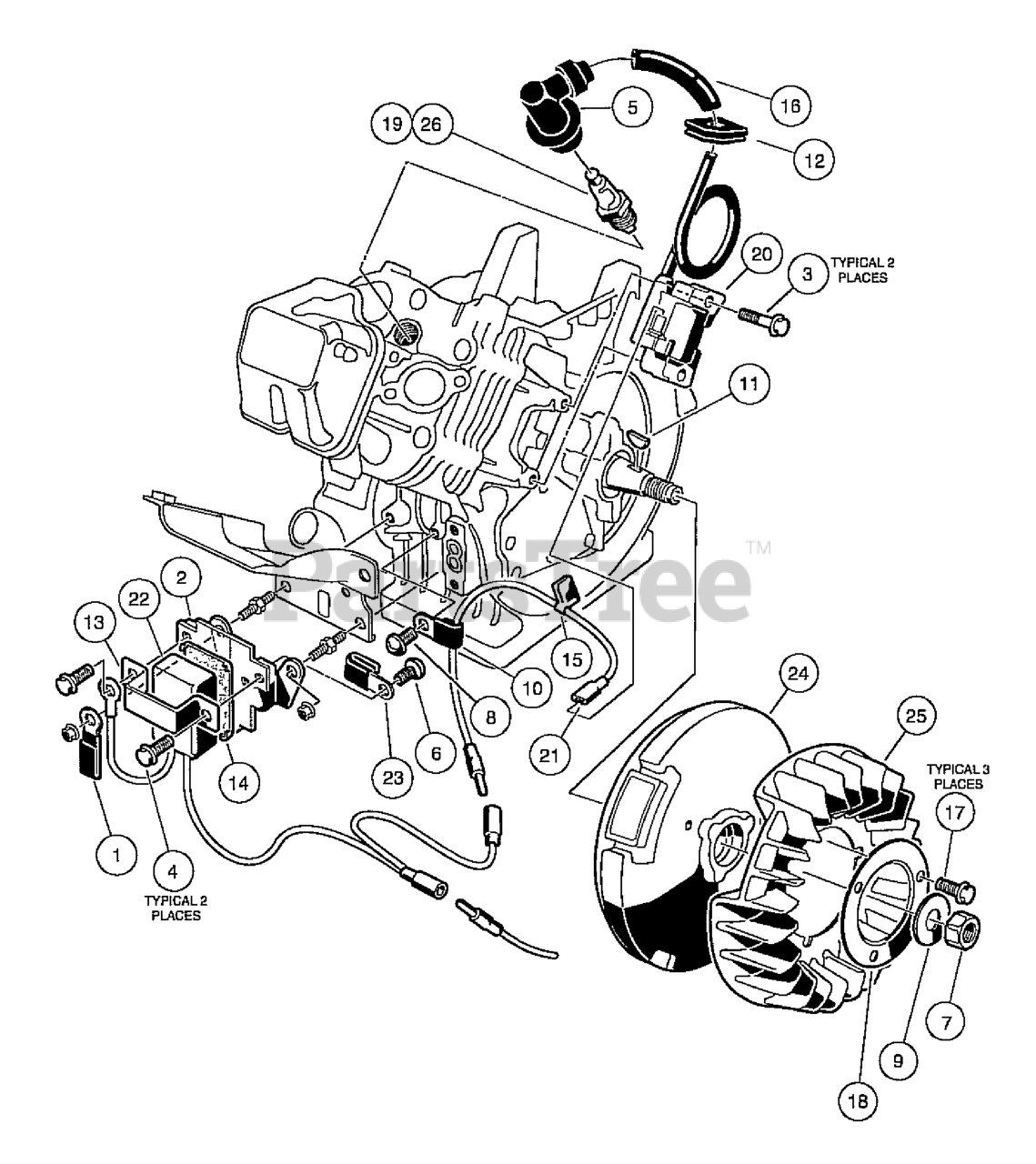

HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Ignition Components And Flywheel Parts Diagram

4x2 Utility Vehicle

FE290 Engine - Ignition Components And Flywheel Parts Diagram

  • Title

1

Husqvarna 603000160

CLAMP
(Superseded to 603004379)

$

$

Not available

2

Husqvarna 603000303

BRACKET, RPM LIMITER

$

$

Not available

3

Husqvarna 603000308

BOLT, FLANGED

$

$

Not available

4

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

5

Husqvarna 603002123

CAP ASSEMBLY, PLUG
(Superseded to 603003119)

$

$

Not available

6

Husqvarna 603000323

SCREW, PAN WP CROSS

$

$

Not available

7

Husqvarna 603002124

NUT, HEX, FINE
(Superseded to 603003120)

$

$

Not available

8

Husqvarna 603000339

SCREW

$

$

Not available

9

Husqvarna 603002139

WASHER, M16 FLAT
(Superseded to 603003135)

$

$

Not available

10

Husqvarna 603000344

CLAMP

$

$

Not available

11

Husqvarna 603000345

KEY

$

$

Not available

12

Husqvarna 603000355

GROMMET

$

$

Not available

13

Husqvarna 603000356

BAND, RPM LIMITER MOUNT

$

$

Not available

14

Husqvarna 603000362

DAMPER, RPM LIMITER

$

$

Not available

15

Husqvarna 603000363

CLAMP

$

$

Not available

16

Husqvarna 603000364

TUBE, 7MM X 10MM X 70MM

$

$

Not available

17

Husqvarna 603000402

BOLT - FLANGED

$

$

Not available

18

Husqvarna 603000405

PLATE

$

$

Not available

19

Husqvarna 603000007

SPARK PLUG OHV

$

$

Not available

20

Husqvarna 603000581

COIL, IGNITION

$

$

Not available

21

Husqvarna 603000582

LEAD WIRE ASSY

$

$

Not available

22

Husqvarna 603000583

LIMITER, RPM

$159.99

$

Usually ships in 3-10 days

0

23

Husqvarna 603000584

Clamp, Steel

$

$

Not available

24

Husqvarna 603002233

FLYWHEEL COMPLETE, FE290
(Superseded to 603003227)

$

$

Not available

25

Husqvarna 603002234

FAN, FE290 CW
(Superseded to 603003228)

$

$

Not available

26

Husqvarna 603000580

NGK OHV SPARK PLUG

$3.99

$

In Stock, Qty 20+

0
