HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Shrouds And Brackets Parts Diagram

4x2 Utility Vehicle

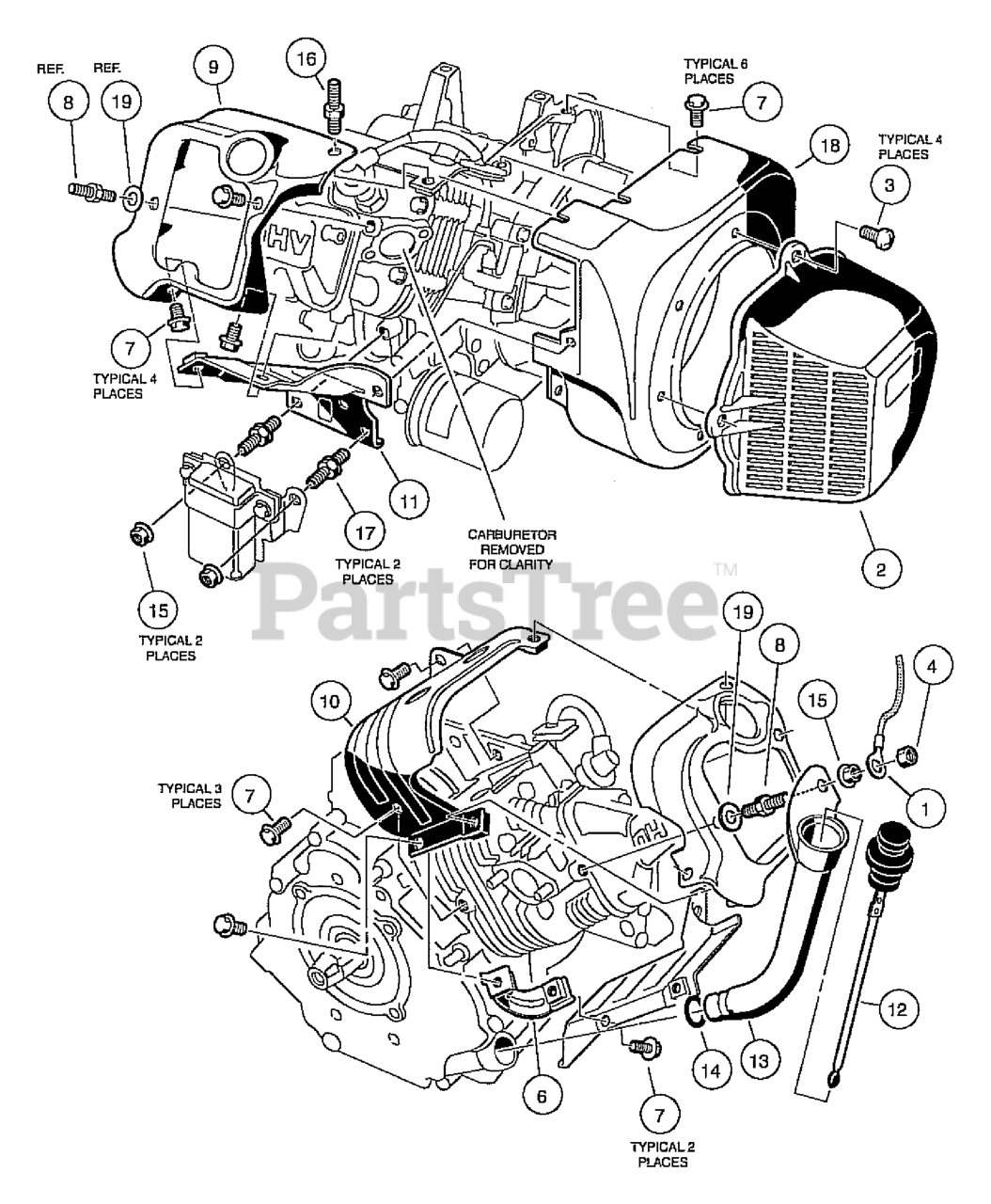

FE290 Engine - Shrouds And Brackets Parts Diagram

  • Title

1

Husqvarna 603000247

WIRE ASM

$

$

Not available

2

Husqvarna 603000265

SHROUD, FAN

$

$

Not available

3

Husqvarna 603000274

SCREW, M6-1.00 X 10MM PAN HD

$

$

Not available

4

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

5

Husqvarna 603002247

ENGINE, FE290 (CW)
(Superseded to 603003239)

Note: (includes items 6 through 19) FE290 engine component listings span several pages.

$

$

Not available

6

Husqvarna 603002105

BRACKET
(Superseded to 603003101)

$

$

Not available

7

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

8

Husqvarna 603000328

BOLT

$

$

Not available

9

Husqvarna 603002131

SHROUD, ENGINE, FE290D
(Superseded to 603003127)

$

$

Not available

10

Husqvarna 603002132

SHROUD, ENGINE, FE290D
(Superseded to 603003128)

$

$

Not available

11

Husqvarna 603002133

SHROUD, ENGINE, FE290D
(Superseded to 603003129)

$

$

Not available

12

Husqvarna 603000333

DIPSTICK

$

$

Not available

13

Husqvarna 603002136

OIL FILLER TUBE, FE290D
(Superseded to 603003132)

$

$

Not available

14

Husqvarna 603000337

O-RING

$

$

Not available

15

Husqvarna 603000341

NUT

$

$

Not available

16

Husqvarna 603002163

SCREW, M6-1.00 STUD
(Superseded to 603003158)

$

$

Not available

17

Husqvarna 603002226

STUD, M6 - 1.00 2-ENDED
(Superseded to 603003220)

$

$

Not available

18

Husqvarna 603002232

HOUSING, FE290 FAN
(Superseded to 603003226)

$

$

Not available

19

Washer, 6 mm Flat

$

$

Not available
