HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE350 Engine - Cylinder Head Parts Diagram

4x2 Utility Vehicle

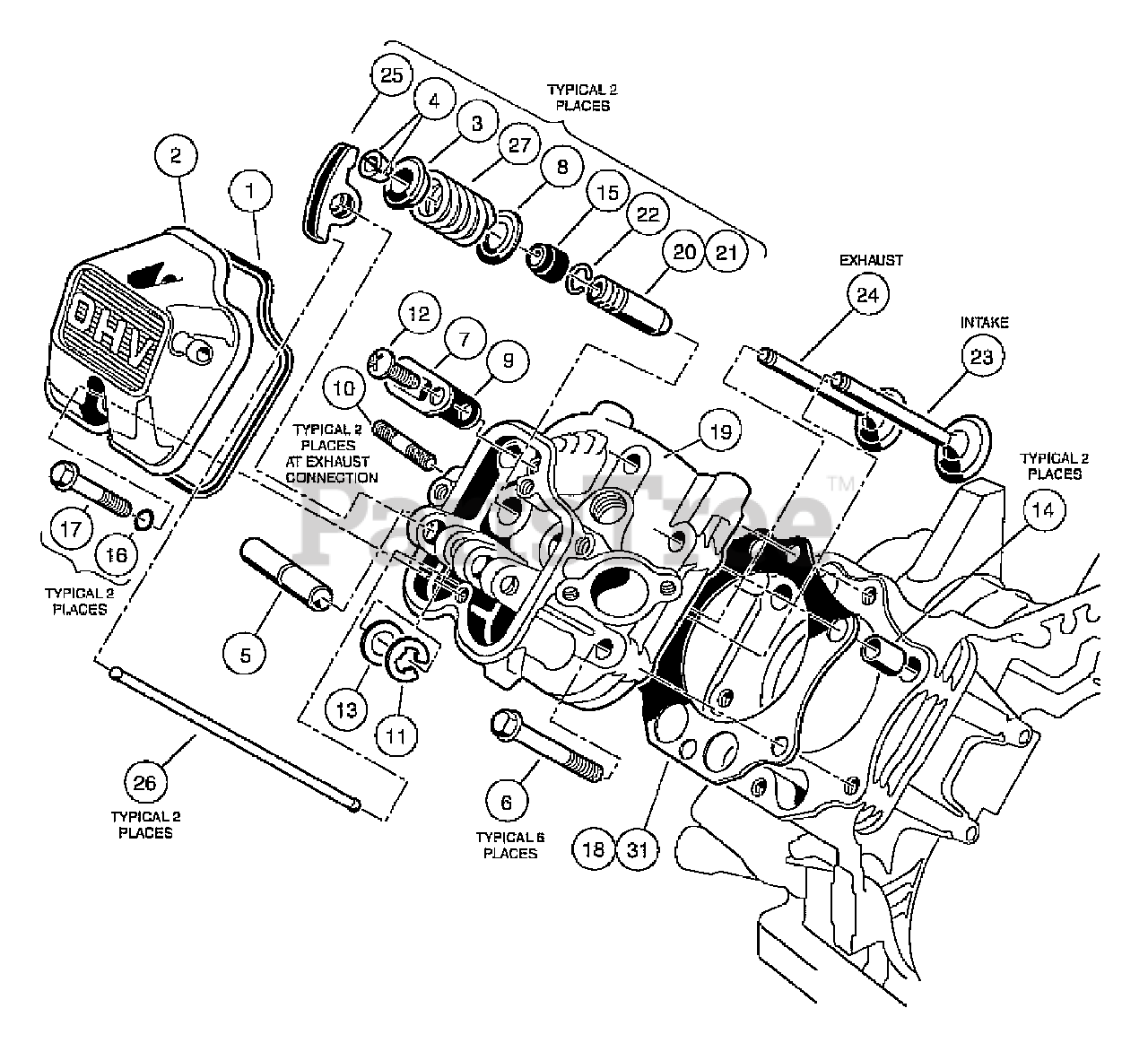

FE350 Engine - Cylinder Head Parts Diagram

  • Title

1

Husqvarna 603000296

Gasket, Rocker Case

$

$

Not available

2

Husqvarna 603000301

Case, Rocker

$

$

Not available

3

Husqvarna 603000304

Retainer, Valve Spring

$

$

Not available

4

Husqvarna 603000305

Collet

$

$

Not available

5

Husqvarna 603000306

Shaft, Rocker

$

$

Not available

6

Husqvarna 603000311

Bolt, Flange Head, M8 x 1.25 x 45 mm

$

$

Not available

7

Husqvarna 603000315

Plate

$

$

Not available

8

Husqvarna 603000316

Seat, Spring

$

$

Not available

9

Husqvarna 603000318

Valve

$

$

Not available

10

Husqvarna 603000320

Stud, Two-Ended, M8-1.25

$

$

Not available

11

Husqvarna 603000330

Circlip, Type-E

$

$

Not available

12

Husqvarna 603000339

Screw

$

$

Not available

13

Husqvarna 603000342

Washer, 12.lxl9xl.8

$

$

Not available

14

Husqvarna 603000346

Pin

$

$

Not available

15

Husqvarna 603000348

Seal, Oil

$

$

Not available

16

Husqvarna 603000349

O-Ring

$

$

Not available

17

Husqvarna 603000359

Bolt, 6x35

$

$

Not available

18

Husqvarna 603002169

Gasket, Head
(Superseded to 603003164)

$

$

Not available

19

Husqvarna 603002170

Assembly, Cylinder Head, FE350
(Superseded to 603003165)

Note: (includes items 20 through 22)

$

$

Not available

20

Husqvarna 603002128

Guide, Valve, Exhaust
(Superseded to 603003124)

$

$

Not available

21

Husqvarna 603000331

Guide, Valve, Intake

$

$

Not available

22

Husqvarna 603000343

Snap Ring

$

$

Not available

23

Husqvarna 603000398

Valve, Intake

$

$

Not available

24

Husqvarna 603000399

Valve, Exhaust

$

$

Not available

25

Husqvarna 603000400

Arm, Rocker

$

$

Not available

26

Husqvarna 603000404

Rod, Push

$

$

Not available

27

Husqvarna 603000413

Spring, Engine Valve

$

$

Not available

28

Husqvarna 603002267

Kit, Gasket, FE350
(Superseded to 603003256)

Note: (includes items 29 through 32); Not a component of the FE350 engine.

$

$

Not available

29

Husqvarna 603000299

Gasket, Engine To Insulator

$

$

Not available

30

Husqvarna 603000377

Gasket, Exhaust
(Superseded to 603002993)

$

$

Not available

31

Husqvarna 603002169

Gasket, Head
(Superseded to 603003164)

$

$

Not available

32

Husqvarna 603000397

Gasket, Crankcase Cover

$

$

Not available
