HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) FE350 Engine - Shrouds And Brackets Parts Diagram

4x2 Utility Vehicle

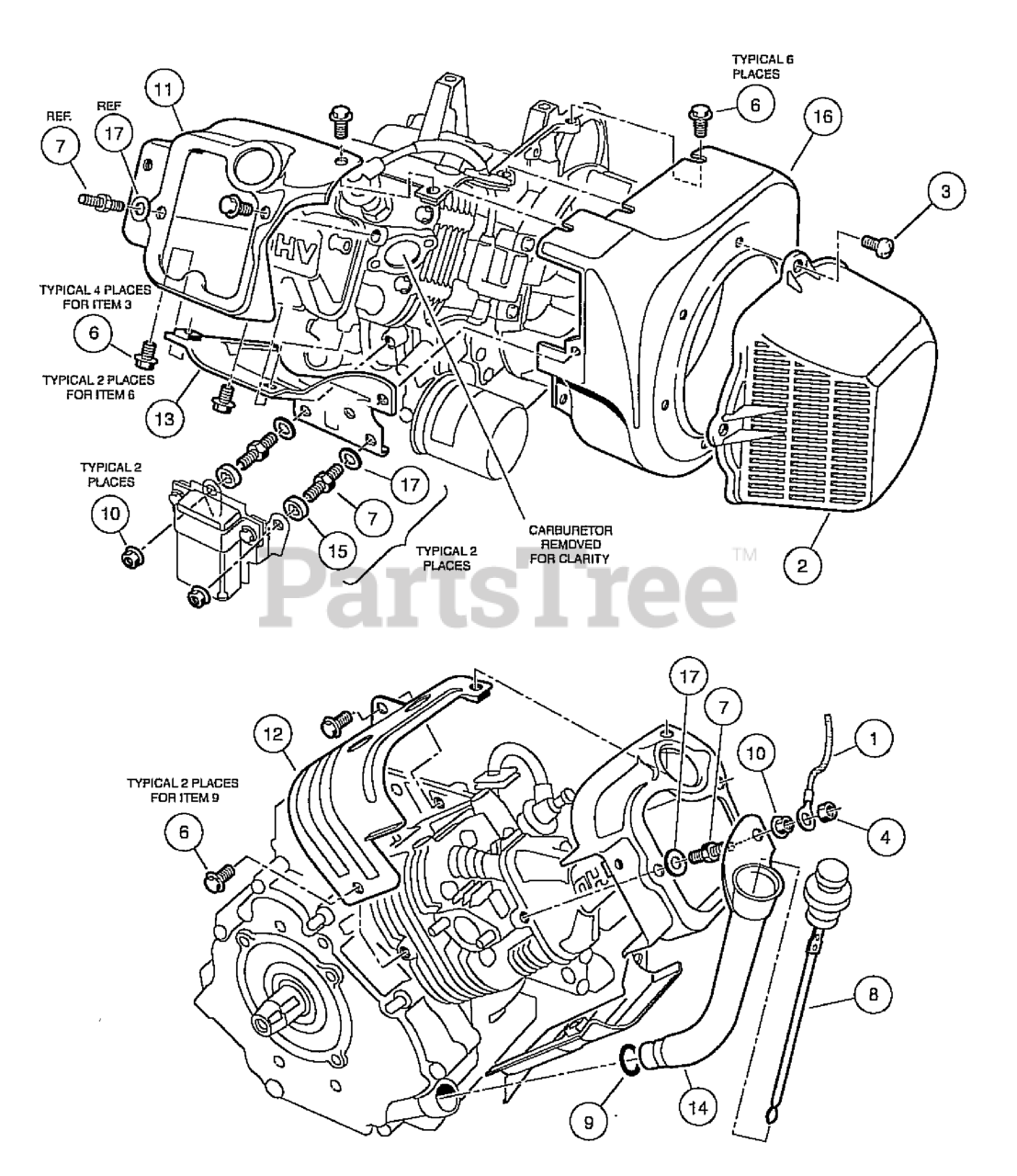

FE350 Engine - Shrouds And Brackets Parts Diagram

  • Title

1

Husqvarna 603000247

WIRE ASM

$

$

Not available

2

Husqvarna 603000265

SHROUD, FAN

$

$

Not available

3

Husqvarna 603000274

SCREW, M6-1.00 X 10MM PAN HD

$

$

Not available

4

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

5

Husqvarna 603002246

ENGINE, FE350 CW W/O COMP. REL
(Superseded to 603003238)

Note: (Includes items 6 through 17)

$

$

Not available

6

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

7

Husqvarna 603000328

BOLT

$

$

Not available

8

Husqvarna 603000333

DIPSTICK

$

$

Not available

9

Husqvarna 603000337

O-RING

$

$

Not available

10

Husqvarna 603000341

NUT

$

$

Not available

11

Husqvarna 603000414

SHROUD ENGINE

$

$

Not available

12

Husqvarna 603000415

SHROUD - ENGINE

$

$

Not available

13

Husqvarna 603000416

SHROUD ENGINE

$

$

Not available

14

Husqvarna 603000417

OIL FILLER TUBE

$

$

Not available

15

Husqvarna 603000420

SPACER 6.50 X 12 X 5.5

$

$

Not available

16

Husqvarna 603002236

HOUSING, FE350 FAN
(Superseded to 603003230)

$

$

Not available

17

Washer, 6mm Flat

$

$

Not available
