HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

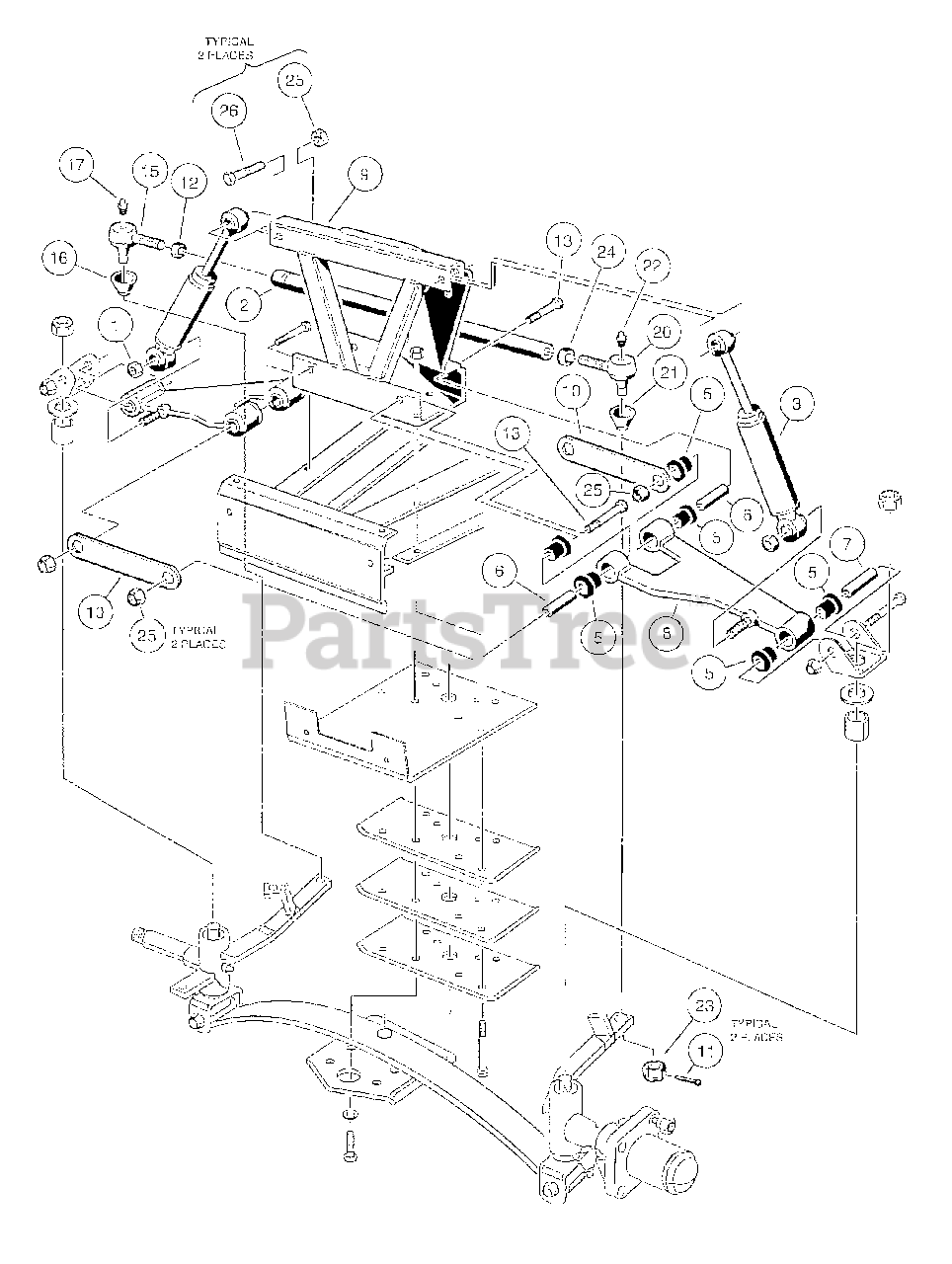

Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603000101

Locknut, 3/8-16 Dimpled

$

$

Not available

2

Husqvarna 603002026

Tie Rod
(Superseded to 603003036)

$

$

Not available

3

Husqvarna 603002074

Shock Absorber
(Superseded to 603004377)

$

$

Not available

4

Husqvarna 603002093

Sub-Assembly, Delta A-Plate
(Superseded to 603003632)

Note: (includes items 5 through 8)

$

$

Not available

5

Husqvarna 603000290

Bushing, Urethane

$

$

Not available

6

Husqvarna 603002091

Sleeve, Delta Inner
(Superseded to 603003087)

$5.49

$

In Stock, only 1 left!

0

7

Husqvarna 603002092

Sleeve, Delta Outer
(Superseded to 603003088)

$

$

Not available

8

Husqvarna N/A

Detla A-Plate

$

$

Not available

9

Husqvarna 603002095

Delta Shock and Gear Support Assembly
(Superseded to 603003091)

$

$

Not available

10

Husqvarna 603002165

A-Plate Strap
(Superseded to 603003160)

$

$

Not available

11

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

12

Husqvarna 603002342

Nut, 1/2-20 Hex
(Superseded to 603003303)

$

$

Not available

13

Husqvarna 603002343

Screw, 3/8-16 X 2.25 Hx Hd Cap
(Superseded to 603003304)

$

$

Not available

14

Husqvarna 603002345

Ball Joint, Right-Hand
(Superseded to 603002039)

Note: (includes items 15 through 18)

$

$

Not available

15

Husqvarna 603002039

Socket, RH Vertical

$

$

Not available

16

Husqvarna 603002041

Seal, Vertical Socket Dust
(Superseded to 603003047)

$

$

Not available

17

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 603002348

Nut, 3/8-24 UNF Hex
(Superseded to 603003309)

$

$

Not available

19

Husqvarna 603002346

Ball Joint, Left
(Superseded to 603002040)

Note: (includes items 20 through 23)

$

$

Not available

20

Husqvarna 603002040

Socket, LH Vertical

$

$

Not available

21

Husqvarna 603002041

Seal, Vertical Socket Dust
(Superseded to 603003047)

$

$

Not available

22

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$6.99

$

In Stock, only 1 left!

0

23

Husqvarna 603002348

Nut, 3/8-24 UNF Hex
(Superseded to 603003309)

$

$

Not available

24

Husqvarna 603002347

Nut, 1/2-20 Hex, Left-Hand Thread
(Superseded to 603003308)

$

$

Not available

25

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

26

Husqvarna 603002351

Bolt, 3/8-16 X 1.75 Hex
(Superseded to 603003311)

$

$

Not available
