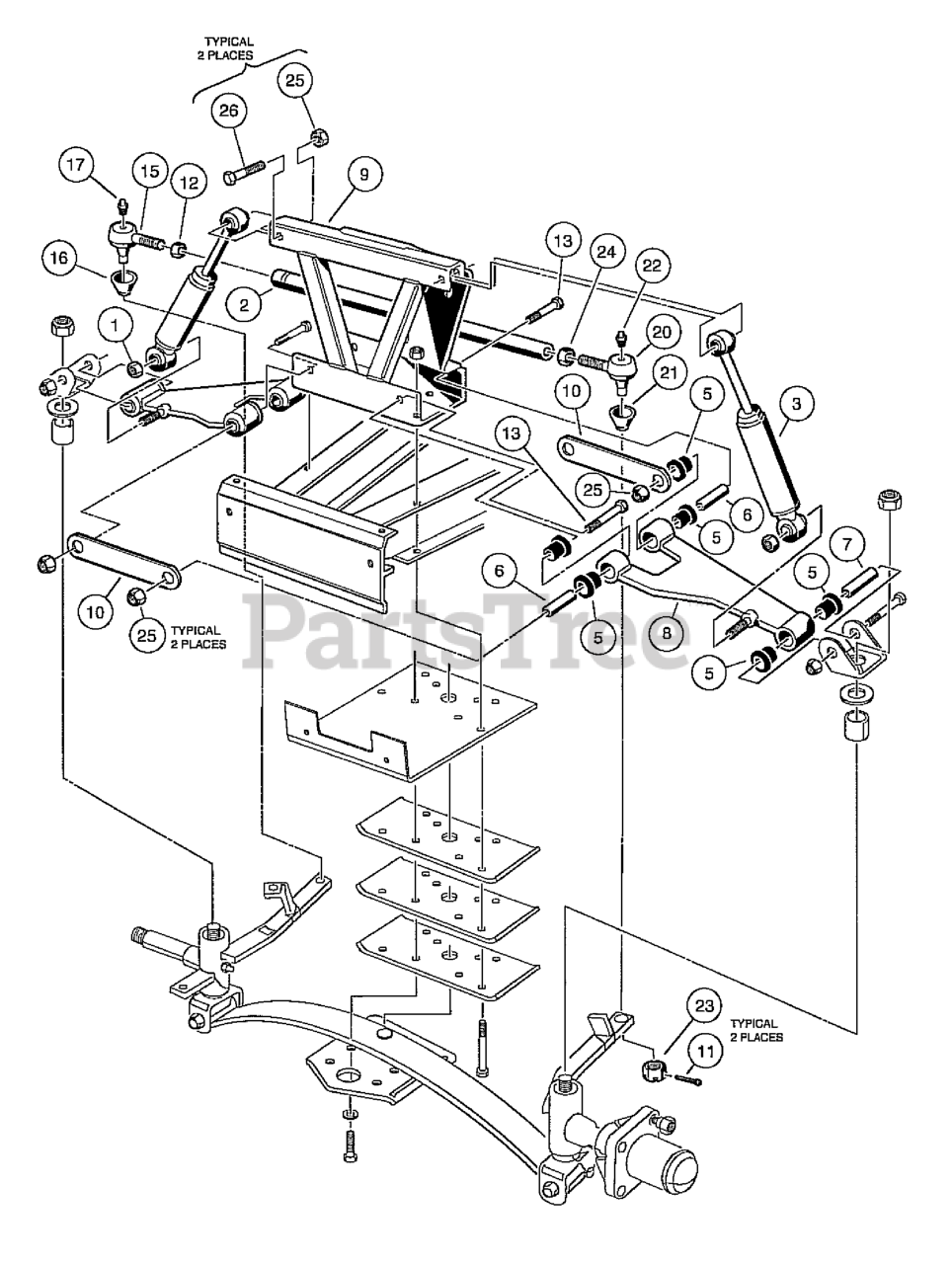

HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

Front Suspension, Upper - Vehicles With Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603000101

LOCKNUT, DIMPLED

$

$

Not available

2

Husqvarna 603002026

TIE ROD PLATING
(Superseded to 603003036)

$

$

Not available

3

Husqvarna 603002074

SHOCK ABSORBER, FRONT COMMON
(Superseded to 603004377)

$

$

Not available

4

Husqvarna 603002093

DELTA A PLATE SUB ASSEMBLY
(Superseded to 603003632)

Note: (includes items 5 through 8)

$

$

Not available

5

Husqvarna 603000290

BUSHING, URETHANE

$

$

Not available

6

Husqvarna 603002091

SLEEVE, DELTA INNER
(Superseded to 603003087)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 603002092

SLEEVE, DELTA OUTER
(Superseded to 603003088)

$

$

Not available

8

Detla A-Plate

$

$

Not available

9

Husqvarna 603002095

ASM, DELTA SHOCK & GEAR SUPPOR
(Superseded to 603003091)

$

$

Not available

10

Husqvarna 603002165

A PLATE STRAP
(Superseded to 603003160)

$

$

Not available

11

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

12

Husqvarna 603002342

NUT, 1/2-20 HEX
(Superseded to 603003303)

$

$

Not available

13

Husqvarna 603002343

SCREW, 3/8-16 X 2.25 HX HD CAP
(Superseded to 603003304)

$

$

Not available

14

Husqvarna 603002345

BALL JOINT, RH
(Superseded to 603002039)

Note: (includes items 15 through 18)

$

$

Not available

15

Husqvarna 603002039

BALL JOINT, RH

$

$

Not available

16

Husqvarna 603002041

SEAL, VERTICAL SOCKET DUST
(Superseded to 603003047)

$

$

Not available

17

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 603002348

NUT, 3/8-24 UNF HEX THICK SLOT
(Superseded to 603003309)

$

$

Not available

19

Husqvarna 603002346

BALL JOINT, LH
(Superseded to 603002040)

Note: (includes items 20 through 23)

$

$

Not available

20

Husqvarna 603002040

BALL JOINT, LH

$

$

Not available

21

Husqvarna 603002041

SEAL, VERTICAL SOCKET DUST
(Superseded to 603003047)

$

$

Not available

22

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 603002348

NUT, 3/8-24 UNF HEX THICK SLOT
(Superseded to 603003309)

$

$

Not available

24

Husqvarna 603002347

NUT, 1/2-20 HEX
(Superseded to 603003308)

$

$

Not available

25

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

26

Husqvarna 603002351

BOLT, 3/8-16 X 1.75 HEX
(Superseded to 603003311)

$

$

Not available
