HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Maintenance And Service Tools, Continued (Part 3) Parts Diagram

4x2 Utility Vehicle

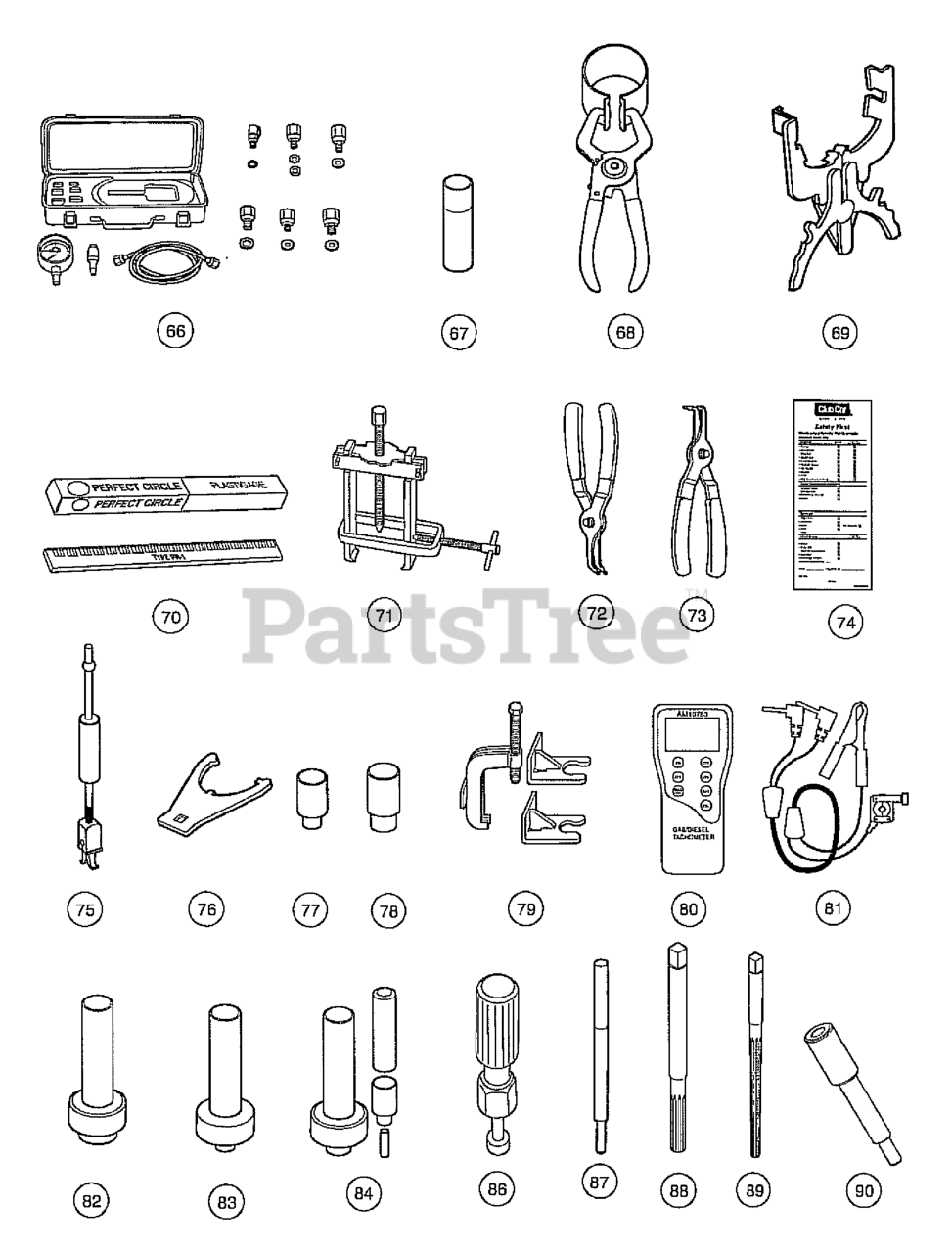

Maintenance And Service Tools, Continued (Part 3) Parts Diagram

  • Title

66

Oil Pressure Tester

Note: Not used.

$

$

Not available

67

Husqvarna 603001900

TOUCH UP PAINT BEIGE
(Superseded to 603003370)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001901

TOUCH UP PAINT BLACK
(Superseded to 603003371)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001902

TOUCH UP PAINT BURGANDY
(Superseded to 603003372)

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001903

TOUCH UP PAINT CLASSIC BLUE

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001904

TOUCH UP PAINT DARK GRAY

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001905

TOUCH UP PAINT DARK GREEN

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001906

TOUCH UP PAINT GRAY

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001907

TOUCH UP PAINT RED

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001908

TOUCH UP PAINT ROYAL BLUE

Note: Not for use on Surlyn® body material.

$

$

Not available

67

Husqvarna 603001909

TOUCH UP PAINT WHITE

Note: Not for use on Surlyn® body material.

$

$

Not available

68

Husqvarna 603001910

KIT, PISTON RING COMPRESSOR

$

$

Not available

69

Husqvarna 603001911

PISTON RING PLIER

Note: (for Kawasaki Engines)

$

$

Not available

70

Husqvarna 603001912

Plastigage

Note: (for Kubota D722 Diesel Engines)

$

$

Currently unavailable

71

Husqvarna 603001913

SPECIAL-USE PULLER SET

Note: (for Kubota D722 Diesel Engines); Not For use on Surlyn® body material.

$

$

Not available

72

Husqvarna 603001914

EXTERNAL SNAP RING PLIERS

$

$

Not available

73

Husqvarna 603001915

INTERNAL SNAP RING PLIER 9O

$

$

Not available

74

Husqvarna 603001916

SAFETY FIRST CARD

$

$

Not available

75

Husqvarna 603001917

SEAL PULLER

$

$

Not available

76

Husqvarna 603001918

WRENCH, SPANNER

Note: (for coil over shock front suspension vehicles only)

$

$

Not available

77

Husqvarna 603001919

Steering Column Bearing Press Tool

$

$

Not available

78

Husqvarna 603001920

TOOL-STEERING RETAINING RING

$

$

Not available

79

Husqvarna 603001921

PULLER, STEERING WHEEL

$

$

Not available

80

Husqvarna 603001922

TACHOMETER GAS/DIESEL
(Superseded to 603002007)

Note: (includes gasoline engine pick up lead only)

$

$

Not available

81

Tachometer Diesel Probe

Note: Not used.

$

$

Not available

82

Husqvarna 603001924

TRANS-AXLE, AXLE SEAL TOOL

$

$

Not available

83

Husqvarna 603001925

Transaxle Pinion Seal Tool

$

$

Not available

84

Husqvarna 603001926

Transmission Tool Kit

$

$

Not available

85

Husqvarna 603000005

Tune-Up Kit, All OHV

Note: (for Kawasaki Engines),(Includes air filter, spark plug, oil filter, fuel filters),(not shown)

$

$

Not available

86

Husqvarna 603001928

VALVE CLEAR ADJ SCREW HOLDER

Note: (for FE290 engines only)

$

$

Not available

87

Husqvarna 603001929

DRIVER, VALVE GUIDE, 6.6. MM

Note: (for Honda GX620 Gasoline Engines)

$

$

Not available

88

Husqvarna 603001930

VALVE GUIDE REAMER

$

$

Not available

89

Husqvarna 603001931

REAMER-VALVE GUIDE

Note: (for Honda GX620 Gasoline Engines)

$

$

Not available

90

Valve Guide Replacement Tool

Note: Not used.

$

$

Not available
