HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Seat Back Parts Diagram

4x2 Utility Vehicle

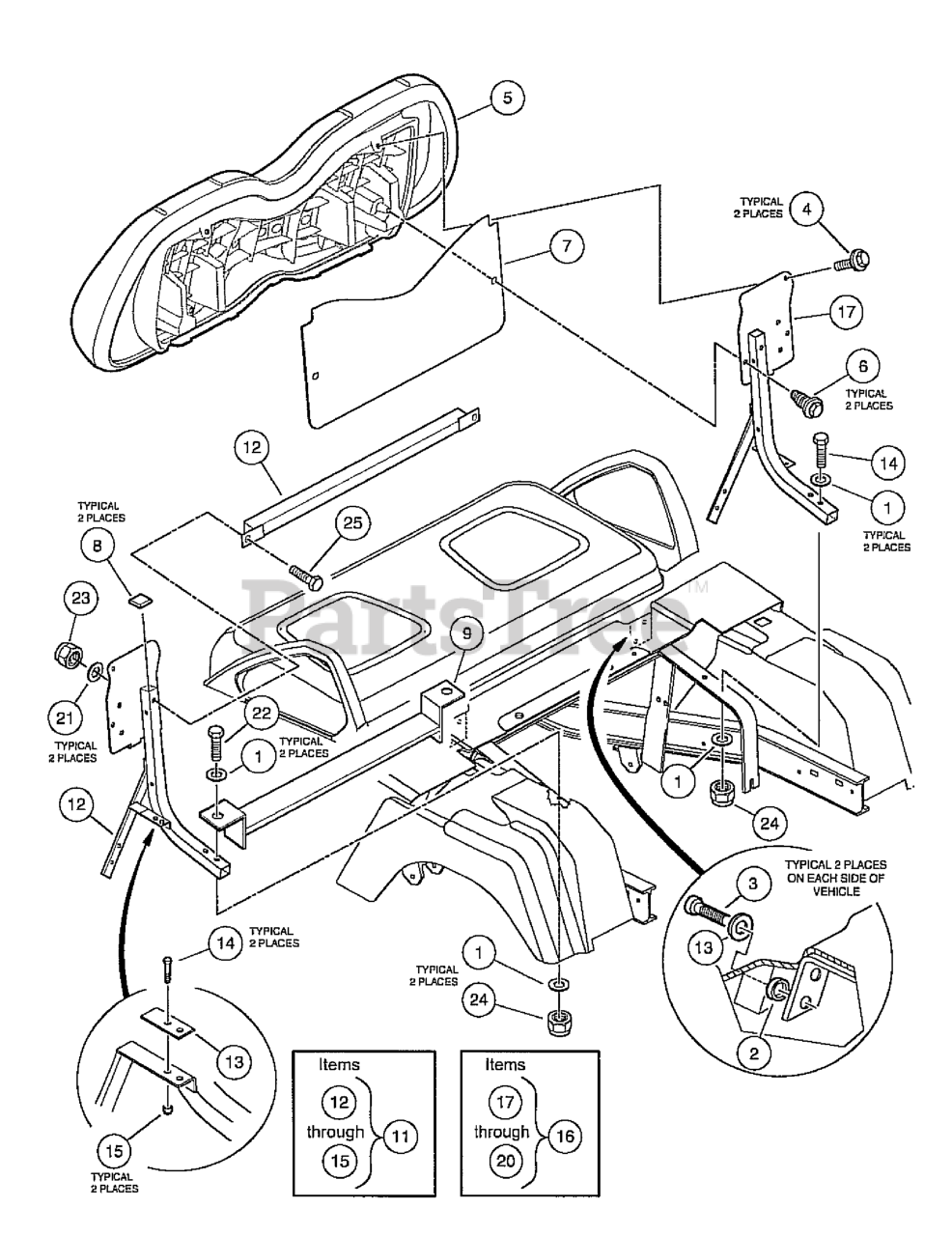

Seat Back Parts Diagram

  • Title

1

Husqvarna 603002042

WASHER, 1/4 FLAT
(Superseded to 603003048)

$

$

Not available

2

Husqvarna 603000434

BODY SPACER

$

$

Not available

3

Husqvarna 603002227

SCREW, 5/16-18 X 1.25 THRD FRM
(Superseded to 603003221)

$

$

Not available

4

Husqvarna 603002265

SCREW - M6 X 1.0 X 30 SEMS
(Superseded to 603003254)

$

$

Not available

5

Husqvarna 603002281

BACKREST ASM - GRAY

$

$

Not available

6

Husqvarna 603002283

SCREW, M6 HEX W "CA" POINT
(Superseded to 603003268)

$

$

Not available

7

Husqvarna 603002284

Backrest Cover Plate

$

$

Currently unavailable

8

Husqvarna 6030022B5

Plug, Square - 25.4 mm

$

$

Currently unavailable

9

Husqvarna 603002302

WELDMENT-BED SUPPORT

$

$

Not available

10

Husqvarna 603002316

SEAT SUPPORT, X BRACE

$

$

Not available

11

Husqvarna 603002370

SEAT SUPPORT W/STRIKER, DRV
(Superseded to 603002304)

Note: (includes items 12 through 15)

$

$

Not available

12

Husqvarna 603002304

SEAT SUPPORT W/STRIKER,DRIVER

$

$

Not available

13

Husqvarna 603002366

STRIKER PLATE

$

$

Not available

14

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

15

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

16

Husqvarna 603002371

SEAT SUPPORT W/STRIKER, PASS
(Superseded to 603002305)

Note: (includes items 17 through 20)

$

$

Not available

17

Husqvarna 603002305

SEAT SUPPORT W/STRIKER, PASSEN

$

$

Not available

18

Husqvarna 603002366

STRIKER PLATE

$

$

Not available

19

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

20

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

21

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

22

Husqvarna 603000074

SCREW, 1/4-20 X 2.00 HX HD CAP

$

$

Not available

23

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

24

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

25

Husqvarna 603002352

SCREW, 5/16-18 X 1.75 HX HD CP

$

$

Not available
