HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2005-06) Transaxle - Gasoline Vehicles, Differential And Axles Parts Diagram

4x2 Utility Vehicle

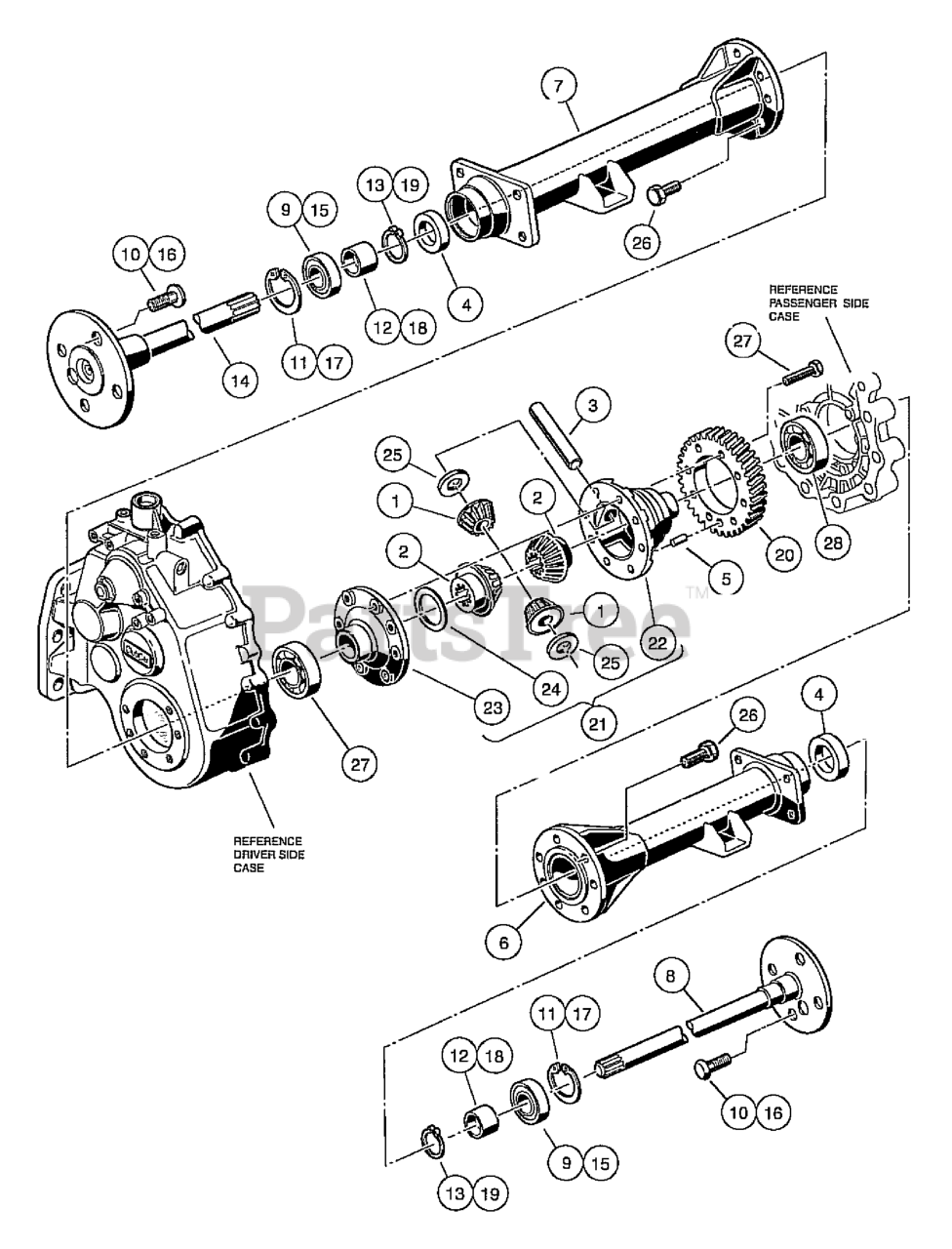

Transaxle - Gasoline Vehicles, Differential And Axles Parts Diagram

  • Title

1

Husqvarna 603000186

DIFFERENTIAL IDLER GEAR

$

$

Not available

2

Husqvarna 603002055

DIFFERENTIAL GEAR
(Superseded to 603003060)

$

$

Not available

3

Husqvarna 603000187

DIFFERENTIAL PIN

$

$

Not available

4

Husqvarna 603002057

AXLE SHAFT OIL SEAL
(Superseded to 603003062)

$

$

Not available

5

Husqvarna 603002069

Dowel Pin

$

$

Not available

6

Husqvarna 603002215

PIPE - COMP.
(Superseded to 603003209)

$

$

Not available

7

Husqvarna 603002216

PIPE - COMP.
(Superseded to 603003210)

$

$

Not available

8

Husqvarna 603002217

AXLE ASSEMBLY
(Superseded to 603003211)

Note: (includes items 9 through 13)

$

$

Not available

9

Husqvarna 603000120

OUTER AXLE, TUBE BEARING

$

$

Not available

10

Husqvarna 603000189

LUG STUD

$

$

Not available

11

Husqvarna 603000190

CIRCLIP TYPE C

$

$

Not available

12

Husqvarna 603002070

BUSHING W/25 MM L.D.
(Superseded to 603003070)

$

$

Not available

13

Husqvarna 603002155

RETAINING RING
(Superseded to 603003151)

$

$

Not available

14

Husqvarna 603002218

AXLE ASSEMBLY
(Superseded to 603003212)

Note: (includes items 15 through 19)

$

$

Not available

15

Husqvarna 603000120

OUTER AXLE, TUBE BEARING

$

$

Not available

16

Husqvarna 603000189

LUG STUD

$

$

Not available

17

Husqvarna 603000190

CIRCLIP TYPE C

$

$

Not available

18

Husqvarna 603002070

BUSHING W/25 MM L.D.
(Superseded to 603003070)

$

$

Not available

19

Husqvarna 603002155

RETAINING RING
(Superseded to 603003151)

$

$

Not available

20

Husqvarna 603002222

GEAR HELICAL
(Superseded to 603003216)

$

$

Not available

21

Husqvarna 603002228

DIFF. GEAR CASE KIT
(Superseded to 603003222)

Note: (includes items 22 through 25)

$

$

Not available

22

Husqvarna 603002053

DIFFERENTIAL GEAR CASE L.H.
(Superseded to 603003058)

$

$

Not available

23

Husqvarna 603002054

DIFFERENTIAL GEAR CASE R.H.
(Superseded to 603003059)

$

$

Not available

24

Husqvarna 603002056

PLATE, THRUST (DIFF. GEAR)
(Superseded to 603003061)

$

$

Not available

25

Husqvarna 603000188

PLATE

$

$

Not available

26

Husqvarna 603000596

SCREW, M8-1.25 X 40MM HEX HEAD

$

$

Not available

27

Husqvarna 603000605

SCREW, M8-1.25 X 35MM HEX HEAD

$

$

Not available

28

Husqvarna 603000075

INNER AXLE, TUBE BEARING

$

$

Not available
