HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Carburetor Assembly - FE290 Parts Diagram

4x2 Utility Vehicle

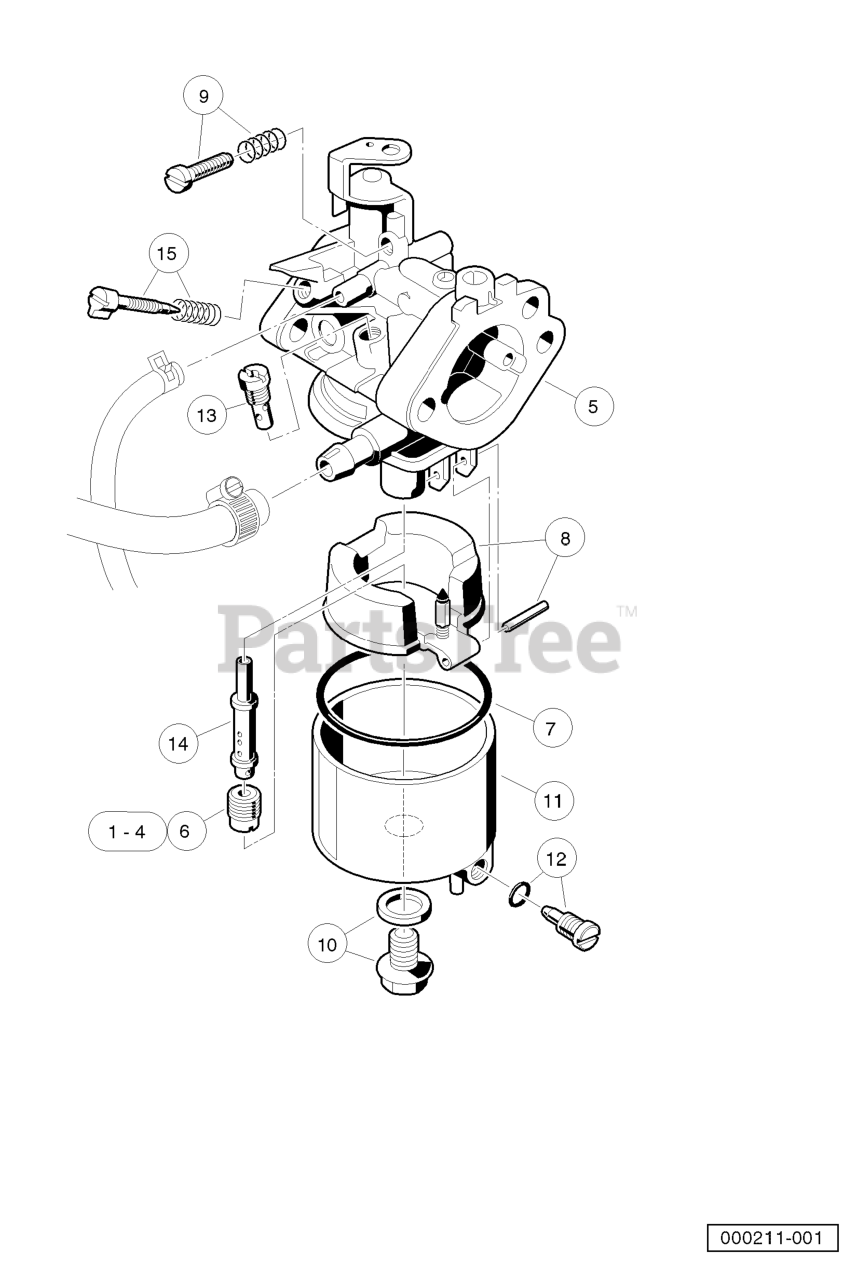

Carburetor Assembly - FE290 Parts Diagram

  • Title

1

Husqvarna 603003093

JET, HIGH ALTITUDE OHV

$

$

Not available

2

Husqvarna 603003094

JET, HIGH ALTITUDE OHV

$

$

Not available

3

Husqvarna 603003095

JET, HIGH ALTITUDE OHV

$

$

Not available

4

Husqvarna 603003096

JET, HIGH ALTITUDE JET

$

$

Not available

5

Husqvarna 603003218

CARBURETOR ASSY, FE290D

Note: (includes items 6 through 15)

$

$

Not available

6

Husqvarna 603000467

JET, HIGH ALTITUDE OHV

$

$

Not available

7

Husqvarna 603000297

GASKET, CARB. BOWL OHV

$

$

Not available

8

Husqvarna 603000319

FLOAT ASSEMBLY

$

$

Not available

9

Husqvarna 603000325

SCREW ASSEMBLY

$

$

Not available

10

Husqvarna 603000361

BOLT

$

$

Not available

11

Husqvarna 603000409

CHAMBER ASSEMBLY - FLOAT

Note: (includes item 12)

$

$

Not available

12

Husqvarna 603000324

SCREW ASSEMBLY

$

$

Not available

13

Husqvarna 603003242

JET, #40 PILOT

$

$

Not available

14

Husqvarna 603003243

NOZZLE, MAIN

$

$

Not available

15

Assembly, Pilot Air Screw

$

$

Not available
