HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Carburetor Installation - FE290 Parts Diagram

4x2 Utility Vehicle

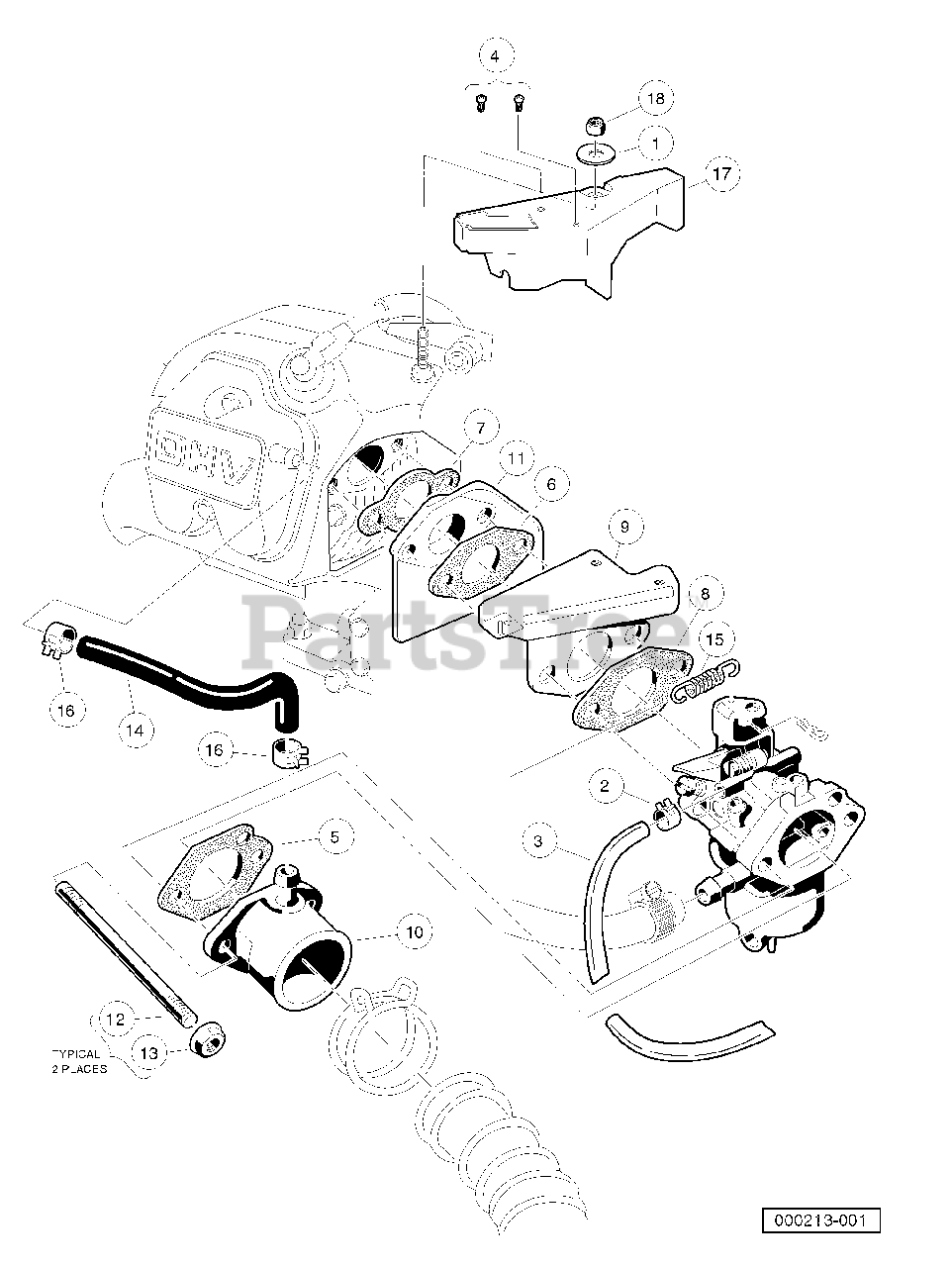

Carburetor Installation - FE290 Parts Diagram

  • Title

1

Husqvarna 603000127

Washer, 5/16 Flat

$

$

Not available

2

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

3

Husqvarna 603000240

Fuel Line

Note: (available by the foot)

$

$

Not available

4

Husqvarna 603003631

Screw, Pan Hd Tx, Taptite 6-32

$

$

Not available

5

Husqvarna 603000298

Gasket, Carb To Intake Manifold

$

$

Not available

6

Husqvarna 603003100

Gasket, Insulator

$

$

Not available

7

Husqvarna 603000299

Gasket, Engine to Insulator

$

$

Not available

8

Husqvarna 603000300

Gasket, Sprg Brkt To Carb OHV

$

$

Not available

9

Husqvarna 603000302

Bracket, Throttle Spring Return

$

$

Not available

10

Husqvarna 603000317

Pipe, Intake Manifold

$

$

Not available

11

Husqvarna 603000470

Insulator, Carburetor

$

$

Not available

12

Husqvarna 603000472

Stud, M6-1.00 Two-Ended

$

$

Not available

13

Husqvarna 603000341

Nut

$

$

Not available

14

Husqvarna 603000352

Tube, Crankcase Vent

$

$

Not available

15

Husqvarna 603000358

Spring, Throttle Return

$

$

Not available

16

Husqvarna 603000411

Clamp

$

$

Not available

17

Husqvarna 603003184

Shield, Governor

$

$

Not available

18

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available
