HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Driven Clutch Parts Diagram

4x2 Utility Vehicle

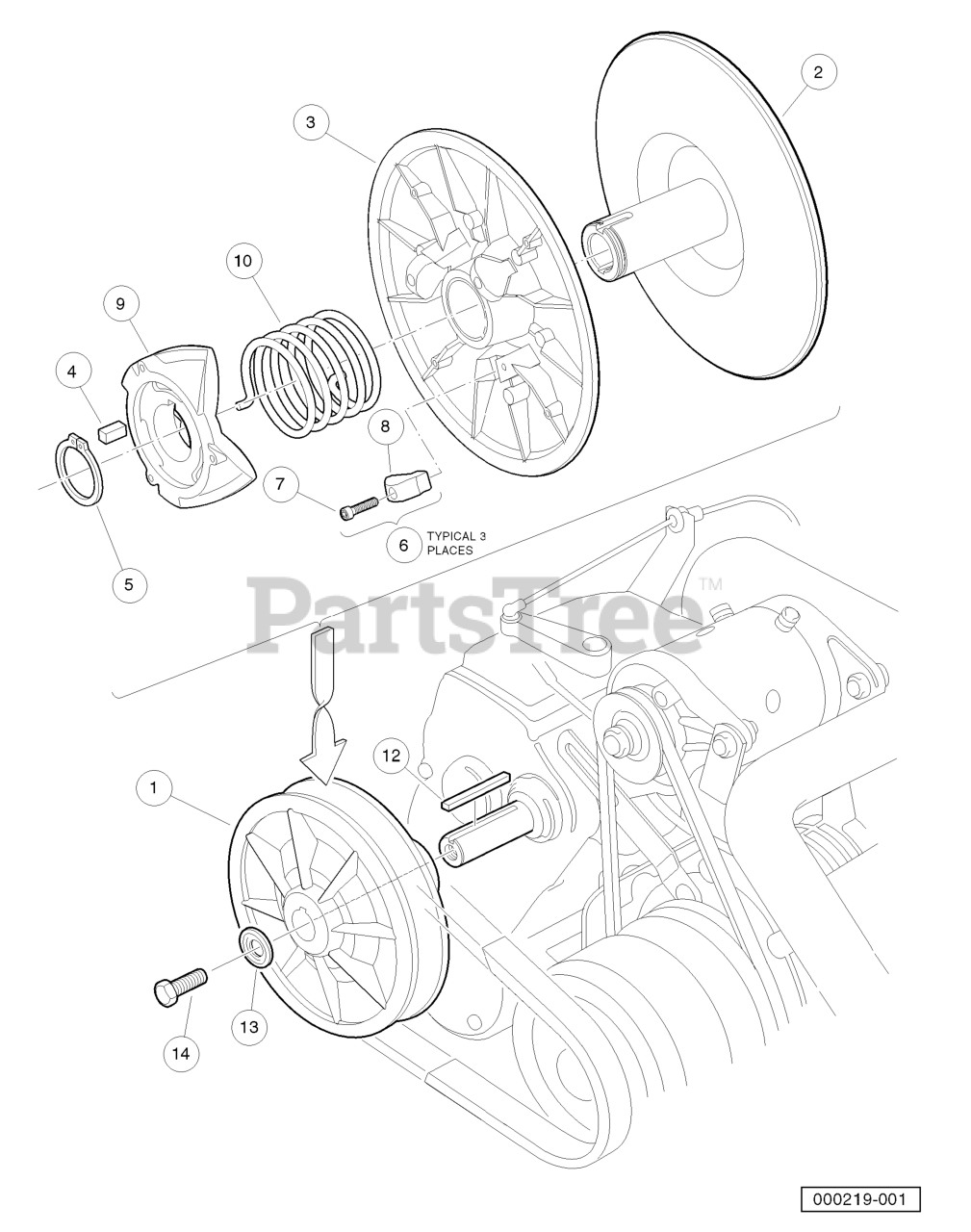

Driven Clutch Parts Diagram

  • Title

1

Husqvarna 603000518

DRIVEN CLUTCH ASM - FE290D

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 603000205

FIXED FACE ASSY

$

$

Not available

3

Husqvarna 603000206

MOVEABLE FACE ASSY

$

$

Not available

4

Husqvarna 603000207

KEY, DRIVEN CLUTCH

$

$

Not available

5

Husqvarna 603000208

RING

$

$

Not available

6

Husqvarna 603002066

KIT, DRIVEN CLUTCH BUTTON

Note: (includes items 7 and 8)

$

$

Not available

7

Husqvarna 603003055

SCREW, #8-32 X 3/4 SOC HD CAP

$

$

Not available

8

Button, Drive

$

$

Not available

9

Husqvarna 603000430

CAM, DRIVEN CLUTCH

$

$

Not available

10

Husqvarna 603000522

SPRING, DRIVEN CLUTCH REVERSED

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 603000391

WASHER, DRVN CLUTCH BELLEVILLE

Note: (includes items 12 through 14)

$

$

Not available

12

Husqvarna 603000515

KEY, 3/16 SQ X 1.50"

$

$

Not available

13

Washer, Driven Clutch

$

$

Not available

14

Husqvarna 603000817

SCREW, 5/16-18X3/4 HX HD W/PTC

$

$

Not available
