HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE290 Engine - Shrouds and Brackets Parts Diagram

4x2 Utility Vehicle

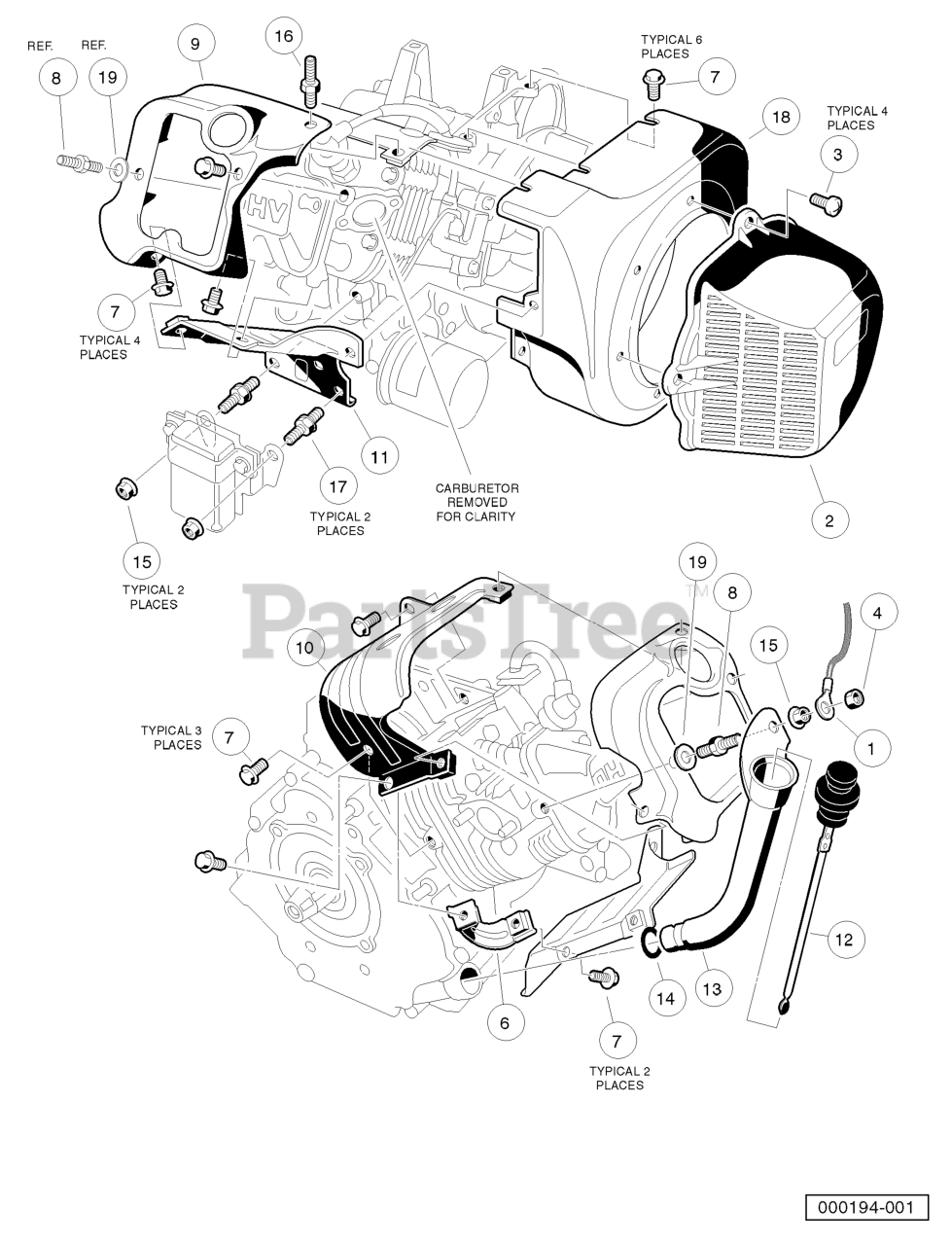

FE290 Engine - Shrouds and Brackets Parts Diagram

  • Title

1

Husqvarna 603000247

WIRE ASM

$

$

Not available

2

Husqvarna 603000265

SHROUD, FAN

$

$

Not available

3

Husqvarna 603000274

SCREW, M6-1.00 X 10MM PAN HD

$

$

Not available

4

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

5

Husqvarna 603003239

ENGINE, FE290 (CW) 101953901

Note: (cw) (includes items 6 through 19) FE290 engine component listings span several pages.

$

$

Not available

6

Husqvarna 603003101

BRACKET

$

$

Not available

7

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

8

Husqvarna 603000328

BOLT

$

$

Not available

9

Husqvarna 603003127

SHROUD, ENGINE, FE290D

$

$

Not available

10

Husqvarna 603003128

SHROUD, ENGINE, FE290D

$

$

Not available

11

Husqvarna 603003129

SHROUD, ENGINE, FE290D

$

$

Not available

12

Husqvarna 603000333

DIPSTICK

$

$

Not available

13

Husqvarna 603003132

OIL FILLER TUBE, FE290D

$

$

Not available

14

Husqvarna 603000337

O-RING

$

$

Not available

15

Husqvarna 603000341

NUT

$

$

Not available

16

Husqvarna 603003158

SCREW, M6-1.00 STUD

$

$

Not available

17

Husqvarna 603003220

STUD, M6-1.00 2-ENDED

$

$

Not available

18

Husqvarna 603003226

HOUSING, FE290 FAN

$

$

Not available

19

Washer, 6 mm Flat

$

$

Not available
