HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE350 Engine - Crankcase and Crankshaft Parts Diagram

4x2 Utility Vehicle

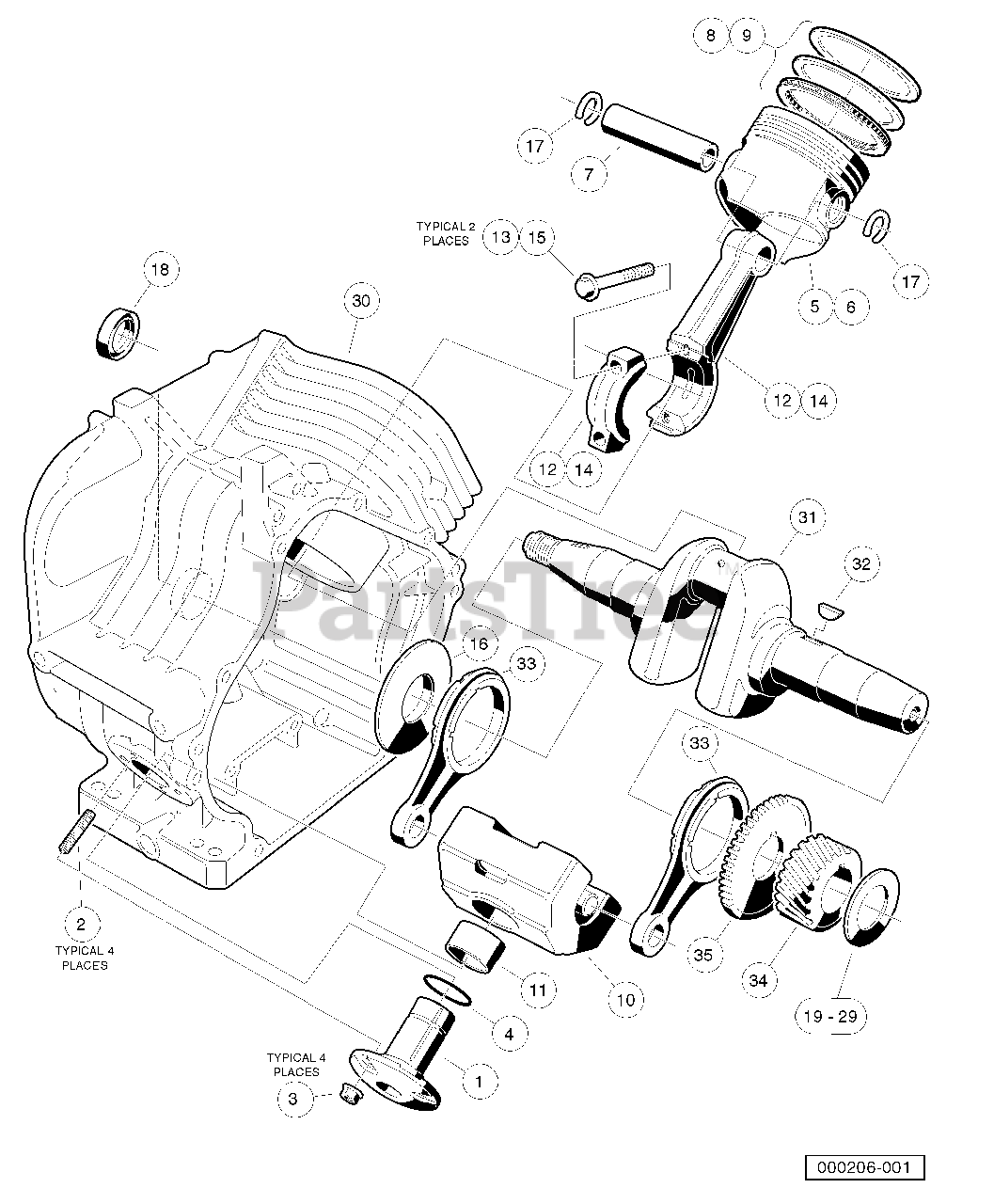

FE350 Engine - Crankcase and Crankshaft Parts Diagram

  • Title

1

Husqvarna 603000312

Shaft, Guide, Counterbalance

$

$

Not available

2

Husqvarna 603000338

Stud, 6x14

$

$

Not available

3

Husqvarna 603000341

Nut

$

$

Not available

4

Husqvarna 603000351

O-Ring

$

$

Not available

5

Husqvarna 603003166

Piston, Standard

$

$

Not available

6

Husqvarna 603003167

Piston, 0.50 mm Oversize

$

$

Not available

7

Husqvarna 603000403

Pin, Piston

$

$

Not available

8

Husqvarna 603003168

Ring Set, Standard Piston

$

$

Not available

9

Husqvarna 603003169

Ring Set, Piston, 0.50 mm Oversize

$

$

Not available

10

Husqvarna 603003170

Weight

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603000426

Bearing, Plain

$

$

Not available

12

Husqvarna 603000474

Asm, Con. Rod Std

Note: (includes item 13)

$

$

Not available

13

Husqvarna 603003173

Bolt

$

$

Not available

14

Husqvarna 603000475

Rod Assembly Connnecting Rod 0.5mm

Note: (includes item 15)

$

$

Not available

15

Husqvarna 603003173

Bolt

$

$

Not available

16

Husqvarna 603000421

Spacer

$

$

Not available

17

Husqvarna 603000422

Snap Ring

$

$

Not available

18

Husqvarna 603000423

Seal, Oil

$

$

Not available

19

Husqvarna 603000479

Shim, Crankshaft, 1.18mm

$

$

Not available

20

Husqvarna 603000480

Shim, Crankshaft, 1.25mm

$

$

Not available

21

Husqvarna 603000481

Shim, Crankshaft, 1.32mm

$

$

Not available

22

Husqvarna 603000482

Shim, Crankshaft, 1.39mm

$

$

Not available

23

Husqvarna 603000483

Shim, Crankshaft, 1.46mm

$

$

Not available

24

Husqvarna 603000484

Shim, Crankshaft, 1.53mm

$

$

Not available

25

Husqvarna 603000485

Shim, Crankshaft, 1.60mm

$

$

Not available

26

Husqvarna 603000486

Shim, Crankshaft, 1.67mm

$

$

Not available

27

Husqvarna 603000487

Shim, Crankshaft, 1.74mm

$

$

Not available

28

Husqvarna 603000488

Shim, Crankshaft, 1.11mm

$

$

Not available

29

Husqvarna 603000489

Shim, Crankshaft, 1.81mm

$

$

Not available

30

Husqvarna 603003229

Crankcase Complete, FE350

Note: (cw)

$

$

Not available

31

Husqvarna 603000859

Crankshaft, FE350 Left-Hand, 22-Tooth

Note: (includes items 32 through 35)

$

$

Not available

32

Husqvarna 603000345

Key

$

$

Not available

33

Husqvarna 603000412

Rod

$

$

Not available

34

Gear, Helical

$

$

Not available

35

Gear, Spur

$

$

Not available
