HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE350 Engine - Crankcase and Crankshaft Parts Diagram

4x2 Utility Vehicle

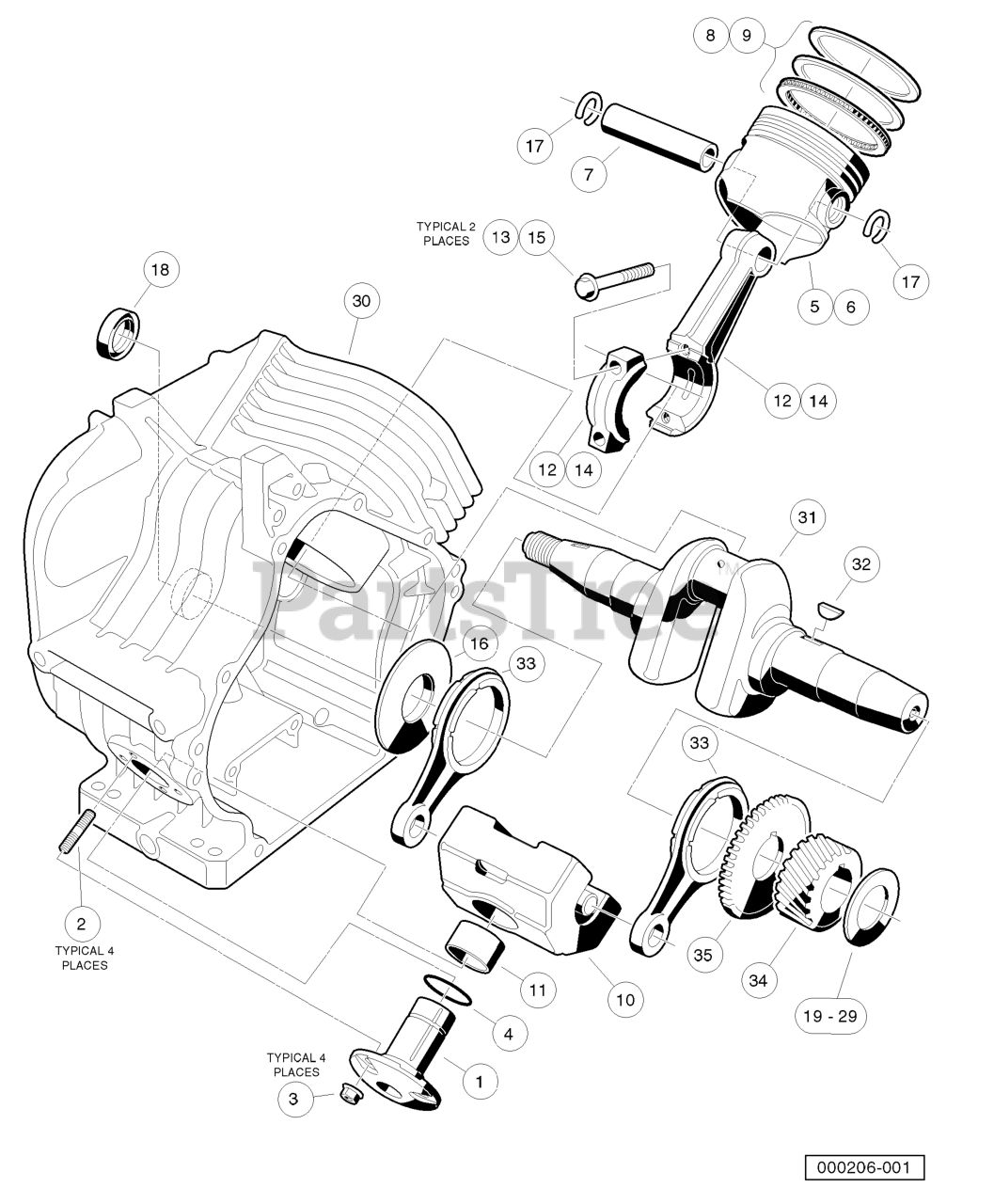

FE350 Engine - Crankcase and Crankshaft Parts Diagram

  • Title

1

Husqvarna 603000312

SHAFT, GUIDE, COUNTER-BALANCE

$

$

Not available

2

Husqvarna 603000338

STUD, 6X14

$

$

Not available

3

Husqvarna 603000341

NUT

$

$

Not available

4

Husqvarna 603000351

O-RING

$

$

Not available

5

Husqvarna 603003166

PISTON - ENGINE STD

$

$

Not available

6

Husqvarna 603003167

PISTON, .50MM OVERSIZE ENGINE

$

$

Not available

7

Husqvarna 603000403

PIN PISTON

$

$

Not available

8

Husqvarna 603003168

RING SET, STANDARD PISTON

$

$

Not available

9

Husqvarna 603003169

RING SET PISTON .50MM OVERSIZE

$

$

Not available

10

Husqvarna 603003170

WEIGHT

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603000426

BEARING - PLAIN

$

$

Not available

12

Husqvarna 603000474

ROD ASSY CONNECTING ROD STD

Note: (includes item 13)

$

$

Not available

13

Husqvarna 603003173

BOLT

$

$

Not available

14

Husqvarna 603000475

ROD ASSY CON ROD .5MM U/S

Note: (includes item 15)

$

$

Not available

15

Husqvarna 603003173

BOLT

$

$

Not available

16

Husqvarna 603000421

SPACER

$

$

Not available

17

Husqvarna 603000422

RING - SNAP

$

$

Not available

18

Husqvarna 603000423

SEAL - OIL

$

$

Not available

19

Husqvarna 603000479

SHIM JCRANKSHAFT FE350

$

$

Not available

20

Husqvarna 603000480

SHIM CRANKSHAFT FE350

$

$

Not available

21

Husqvarna 603000481

SHIM CRANKSHAFT FE350

$

$

Not available

22

Husqvarna 603000482

SHIM CRANKSHAFT FE350

$

$

Not available

23

Husqvarna 603000483

SHIM CRANKSHAFT FE350

$

$

Not available

24

Husqvarna 603000484

SHIM CRANKSHAFT FE350

$

$

Not available

25

Husqvarna 603000485

SHIM CRANKSHAFT FE350

$

$

Not available

26

Husqvarna 603000486

SHIM CRANKSHAFT FE350

$

$

Not available

27

Husqvarna 603000487

SHIM CRANKSHAFT FE350

$

$

Not available

28

Husqvarna 603000488

SHIM CRANKSHAFT FE350

$

$

Not available

29

Husqvarna 603000489

SHIM CRANKSHAFT FE350

$

$

Not available

30

Husqvarna 603003229

CRANKCASE COMPLETE, FE350 CW

Note: (cw)

$

$

Not available

31

Husqvarna 603000859

SPUR GEAR

Note: (includes items 32 through 35)

$

$

Not available

32

Husqvarna 603000345

KEY

$

$

Not available

33

Husqvarna 603000412

ROD

$

$

Not available

34

Gear, Helical

$

$

Not available

35

Gear, Spur

$

$

Not available
