HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) FE350 Starter and Generator Mounting Parts Diagram

4x2 Utility Vehicle

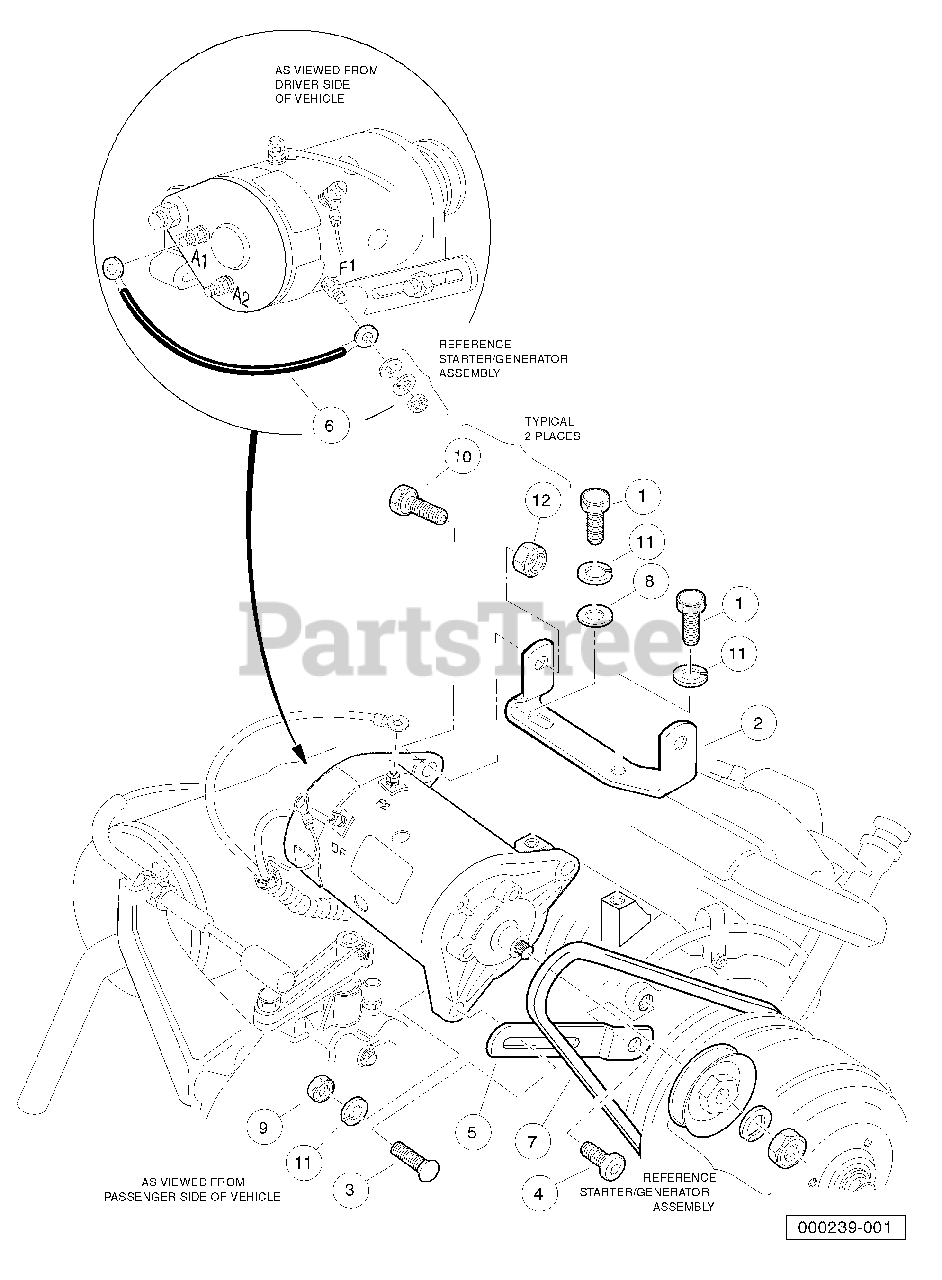

FE350 Starter and Generator Mounting Parts Diagram

  • Title

1

Husqvarna 603000579

Screw, M8-125 X 22 Hex-Head

$

$

Not available

2

Husqvarna 603000459

Bracket, Starter/Generator Mounting

$

$

Not available

3

Husqvarna 603000273

Bolt, Carriage, 5/16-18

$

$

Not available

4

Husqvarna 603000277

Screw, M8-1.25 X 18mm Torx

$

$

Not available

5

Husqvarna 603000375

Bracket, Starter/Generator Adjustment

$

$

Not available

6

Husqvarna 603000524

Wire Assy, #6 Green

$

$

Not available

7

Husqvarna 603000589

V-Belt

$

$

Not available

8

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

9

Husqvarna 603000066

Nut, 5/16-18 Hex

$

$

Not available

10

Husqvarna 603000059

Screw, Cap-hex Hd 3/8-16x1.25

$

$

Not available

11

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

12

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
