HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Front Spindles and Hubs - Later Style Parts Diagram

4x2 Utility Vehicle

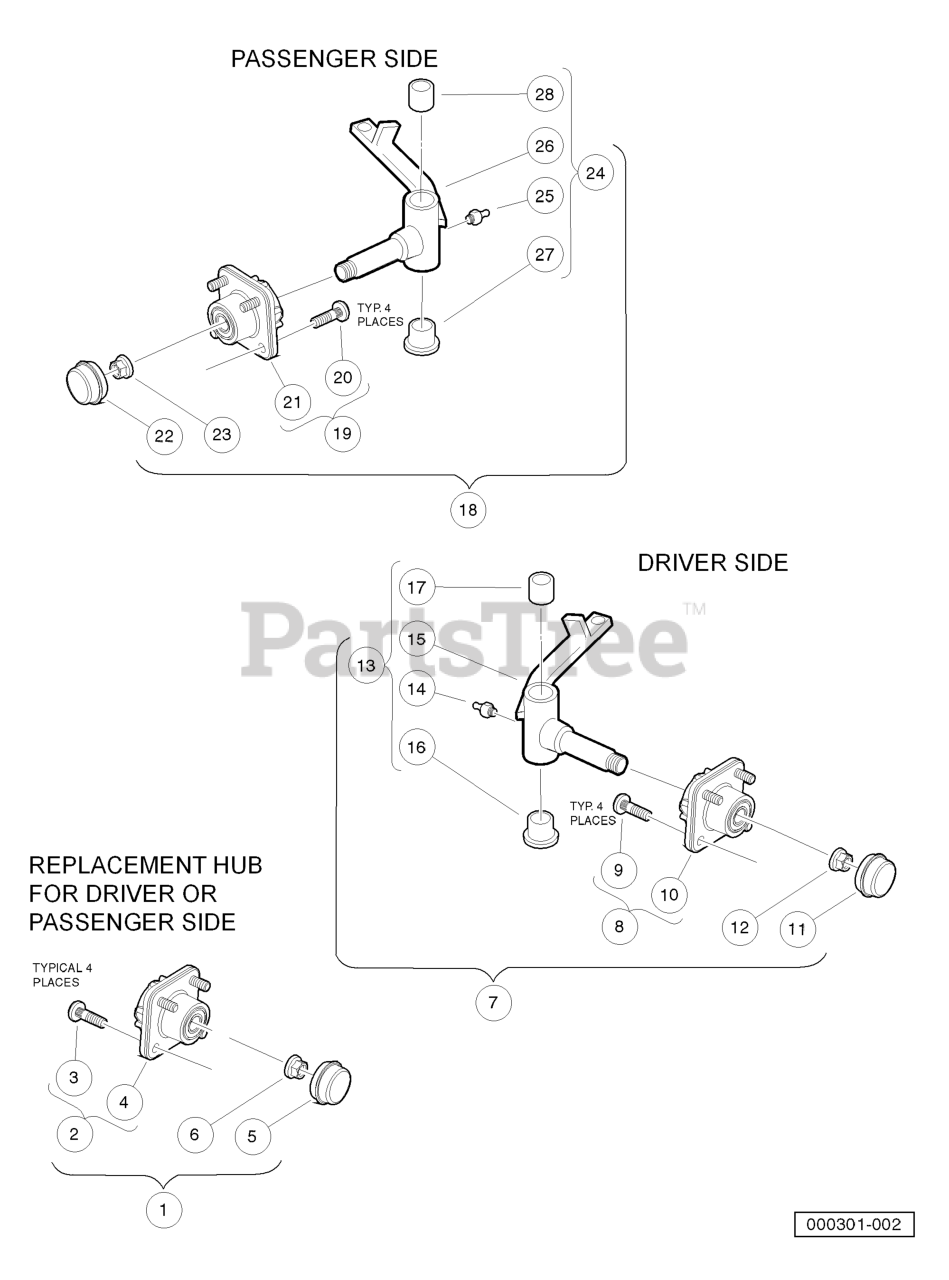

Front Spindles and Hubs - Later Style Parts Diagram

  • Title

1

Husqvarna 603002269

REPLACEMENT KIT, FRONT HUB

Note: (includes items 2 through 6)

$

$

Not available

2

Front Hub Assembly, Ball Bearing

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

4

Hub, Front

$

$

Not available

5

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

6

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

7

Asm, Hub And Spindle, Left-Hand Ext

Note: (includes items 8 through 13)

$

$

Not available

8

Front Hub Assembly, Ball Bearing

Note: (includes items 9 and 10)

$

$

Not available

9

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

10

Hub, Front

$

$

Not available

11

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

12

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

13

Husqvarna 603002363

ASM, SPINDLE, LH, EXT

Note: (includes items 14 through 17)

$

$

Not available

14

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 603002365

Subasm, Spindle, LH, Ext

$

$

Currently unavailable

16

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

17

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available

18

Asm, Hub And Spindle, Right-Hand Ext

Note: (includes items 19 through 24)

$

$

Not available

19

Front Hub Assembly, Ball Bearing

Note: (includes items 20 and 21)

$

$

Not available

20

Husqvarna 603003260

LUG STUD, 1/2-20 UNF, 4037 STL

$

$

Not available

21

Hub, Front

$

$

Not available

22

Husqvarna 603003258

CAP, FRONT HUB

$

$

Not available

23

Husqvarna 603003259

HEX NUT, LOCKING FLANGE, M14X2

$

$

Not available

24

Husqvarna 603002362

ASM, SPINDLE, RH, EXT

Note: (includes items 25 through 28)

$

$

Not available

25

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 603002364

Subasm, Spindle, RH, Ext

$

$

Currently unavailable

27

Husqvarna 603000070

BUSHING, FLANGED BROZE

$

$

Not available

28

Husqvarna 603000088

BUSHING BRONZE SPINDLE

$

$

Not available
