HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Fuel Tank With Fuel Level Sending Unit Parts Diagram

4x2 Utility Vehicle

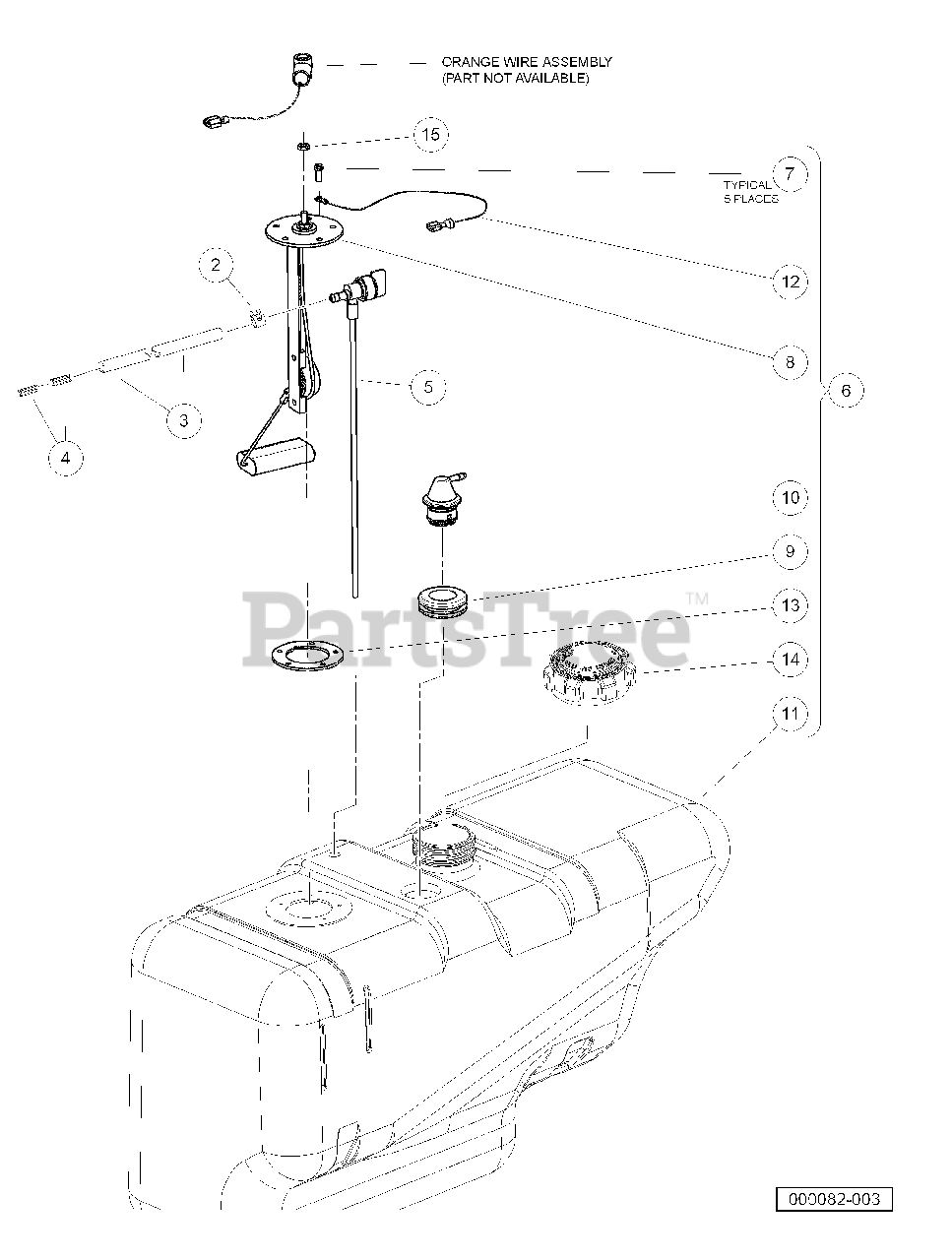

Fuel Tank With Fuel Level Sending Unit Parts Diagram

  • Title

1

Husqvarna 603000275

Tank Kit w/Sending Unit

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

3

Husqvarna 603000240

Fuel Line

Note: (available by the foot)

$

$

Not available

4

Husqvarna 603000503

Vent Barb

$

$

Not available

5

Husqvarna 603000575

Fuel Pickup w/Shut-Off Valve

$

$

Not available

6

Fuel Tank with Sending Unit

Note: (includes items 7 through 14)

$

$

Not available

7

Husqvarna 603000173

Screw, #10-16 Hex-Head Hi-Lo

$

$

Not available

8

Sending Unit, Fuel Level

$

$

Not available

9

Husqvarna 603000241

Insulation Grommet

$

$

Not available

10

Husqvarna 603000242

Vent, Fuel Tank
(Superseded to 589258901)

$

$

Not available

11

Fuel Tank with Vent and Sending Unit Hole

$

$

Not available

12

Wire Assembly #16 Black

$

$

Not available

13

Husqvarna 603003057

Gasket, Rubber

$

$

Not available

14

Husqvarna 531309543

Cap, Fuel Tank, Gasoline

$

$

Not available

15

Husqvarna 603000097

Nut, #10-32 Brass Hex

$

$

Not available
