HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Fuel Tank With Fuel Level Sending Unit Parts Diagram

4x2 Utility Vehicle

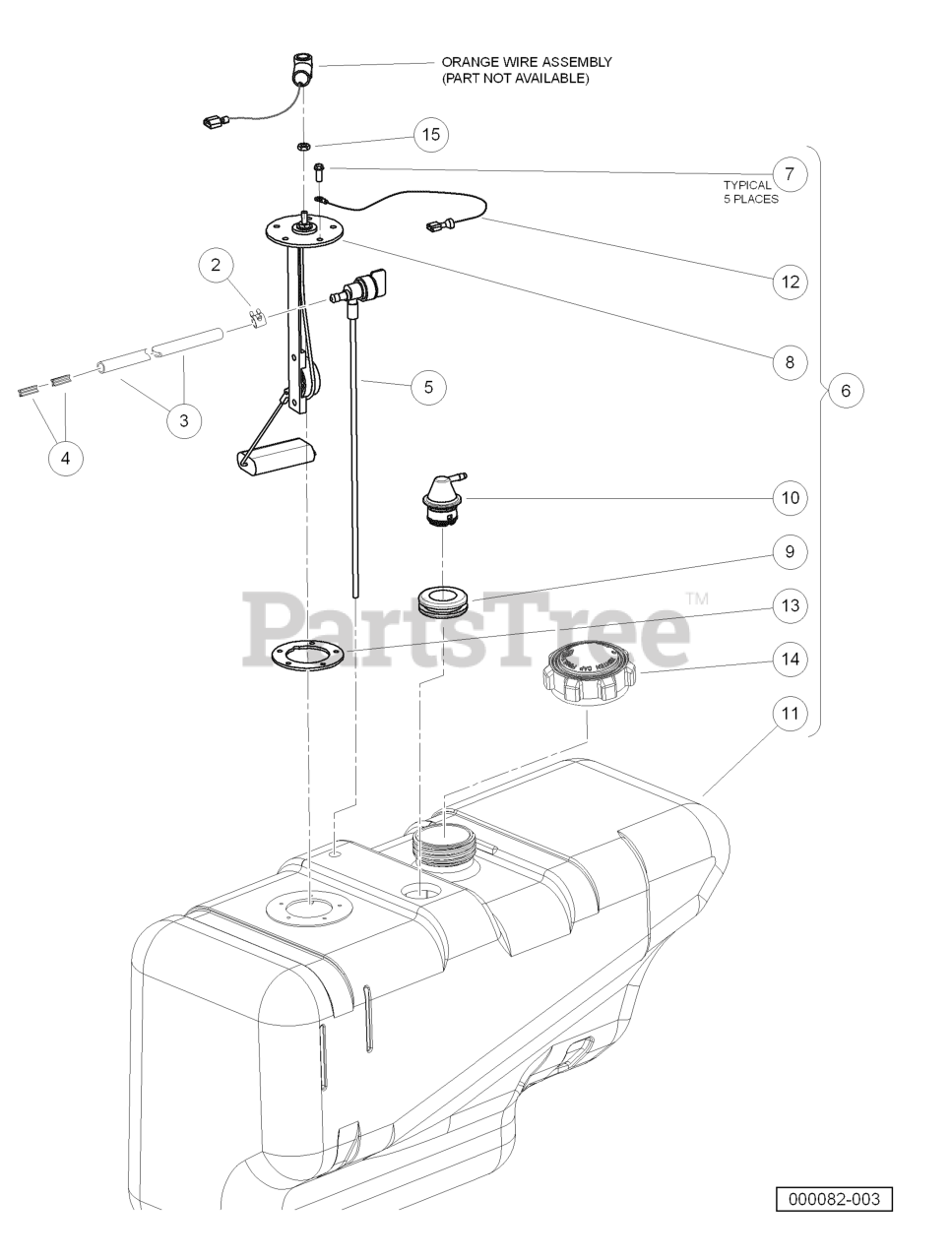

Fuel Tank With Fuel Level Sending Unit Parts Diagram

  • Title

1

Husqvarna 603000275

TANK KIT W/ SENDING UNIT

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 603000185

CLAMP

$

$

Not available

3

Husqvarna 603000240

FUEL LINE

Note: (available by the foot)

$

$

Not available

4

Husqvarna 603000503

VENT BARB

$

$

Not available

5

Husqvarna 603000575

FUEL PICKUP W/ SHUTOFF

$

$

Not available

6

Fuel Tank with Sending Unit

Note: (includes items 7 through 14)

$

$

Not available

7

Husqvarna 603000173

SCREW

$

$

Not available

8

Sending Unit, Fuel Level

Note: Special order item available upon request. Must replace fuel sending unit gasket when servicing this component.

$

$

Not available

9

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

10

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available

11

Fuel Tank with Vent and Sending Unit Hole

$

$

Not available

12

Wire Assembly #16 Black

$

$

Not available

13

Husqvarna 603003057

GASKET, SEND UNIT (RUBBER)

$

$

Not available

14

Husqvarna 531309543

CAP, FUEL TANK - GASOLINE

$

$

Not available

15

Husqvarna 603000097

NUT, #10-32 BRASS HEX

$

$

Not available
