HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Intake Duct, Choke, and Air Box Assembly Parts Diagram

4x2 Utility Vehicle

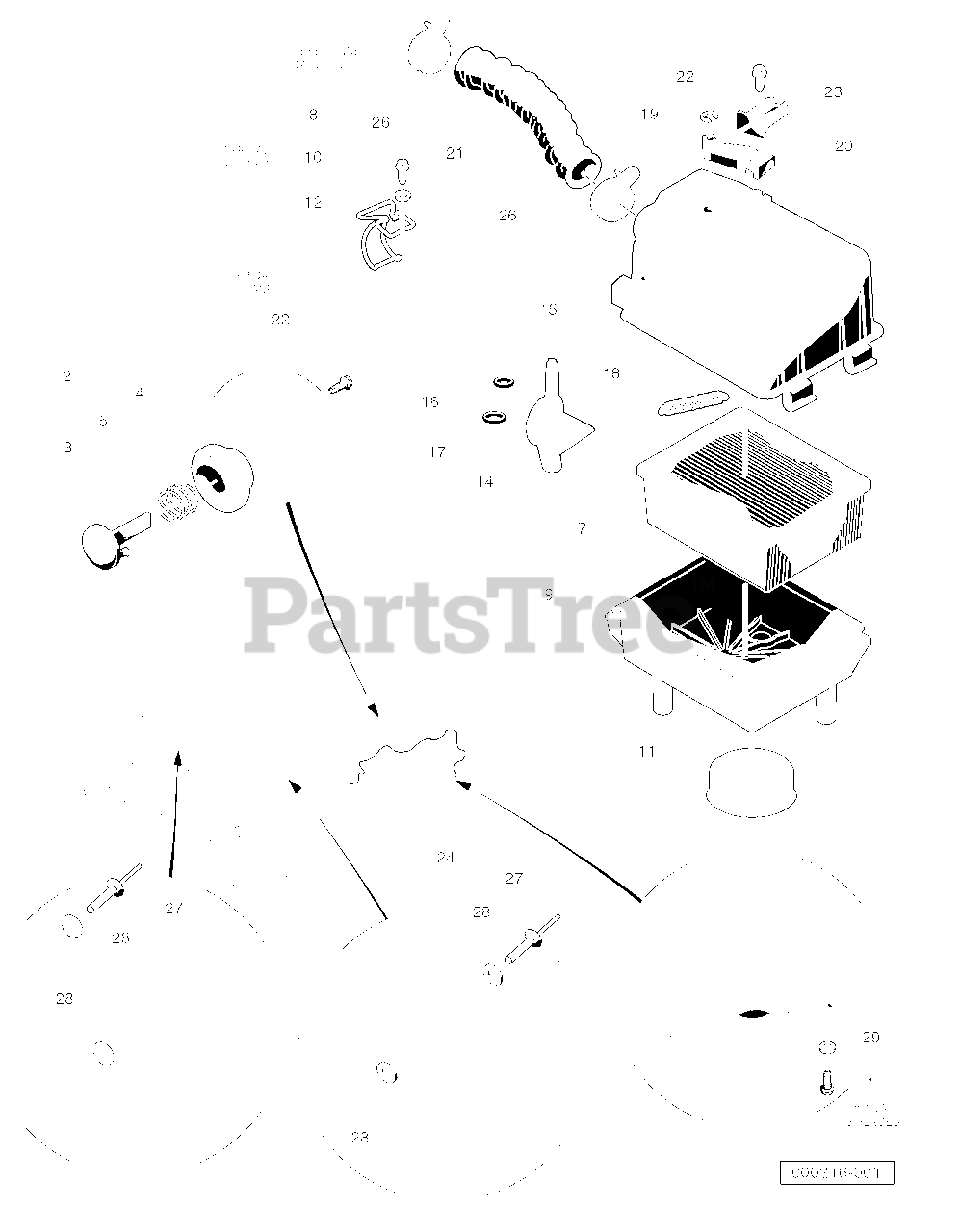

Intake Duct, Choke, and Air Box Assembly Parts Diagram

  • Title

1

Husqvarna 603000268

Screw, #12-16 X 0.625 Hi-Lo

$

$

Not available

2

Husqvarna 603003176

Button Assembly, Choke

Note: (includes items 3 through 5)

$

$

Not available

3

Husqvarna 603003177

Lever, Choke

$

$

Not available

4

Husqvarna 603003178

Guide, Choke Lever

$

$

Not available

5

Husqvarna 603003196

Compression Spring

$

$

Not available

6

Husqvarna 603000501

Assembly, Air Box

Note: (includes items 7 through 13)

$

$

Not available

7

Husqvarna 603000004

Filter, Air

$

$

Not available

8

Husqvarna 603000491

Screw, #8 X 0.500, Hex-Head Hi-Lo

$

$

Not available

9

Husqvarna 603000494

Bottom, Air Box

$

$

Not available

10

Husqvarna 603000555

Washer, #8 Stainless-Steel Flat

$

$

Not available

11

Husqvarna 603000592

Seal, Intake

$

$

Not available

12

Husqvarna 603000594

Latch, Wireform

$

$

Not available

13

Husqvarna 603000619

Top Assy, Air Box

Note: (includes items 14 through 20)

$

$

Not available

14

Valve, Choke

$

$

Not available

15

Top, Air Box

$

$

Not available

16

O-Ring, 5/16

$

$

Not available

17

O-Ring, 3/8

$

$

Not available

18

Husqvarna 603000497

Spring, Extension Return

$

$

Not available

19

Husqvarna 603000498

Retaining Ring 0.25, Shaft

$

$

Not available

20

Husqvarna 603000591

Lever, Choke

$

$

Not available

21

Husqvarna 603000523

Hose, Air Intake

$

$

Not available

22

Husqvarna 603003194

Screw, #12-16 X 0.50 Washer-Head Hi-Lo

$

$

Not available

23

Husqvarna 603003231

Choke Positioner

$

$

Not available

24

Husqvarna 603003241

Duct Assembly

$

$

Not available

25

Tape Kit, Air Duct Repair

Note: Item 25 is not illustrated.

$

$

Not available

26

Husqvarna 603000618

Clamp, 1.58" ID Hose

$

$

Not available

27

Husqvarna 603000067

Rivet, 3/16 X .500 Alum Pop

$

$

Not available

28

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

29

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available
