HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Rear Body And Fender Parts Diagram

4x2 Utility Vehicle

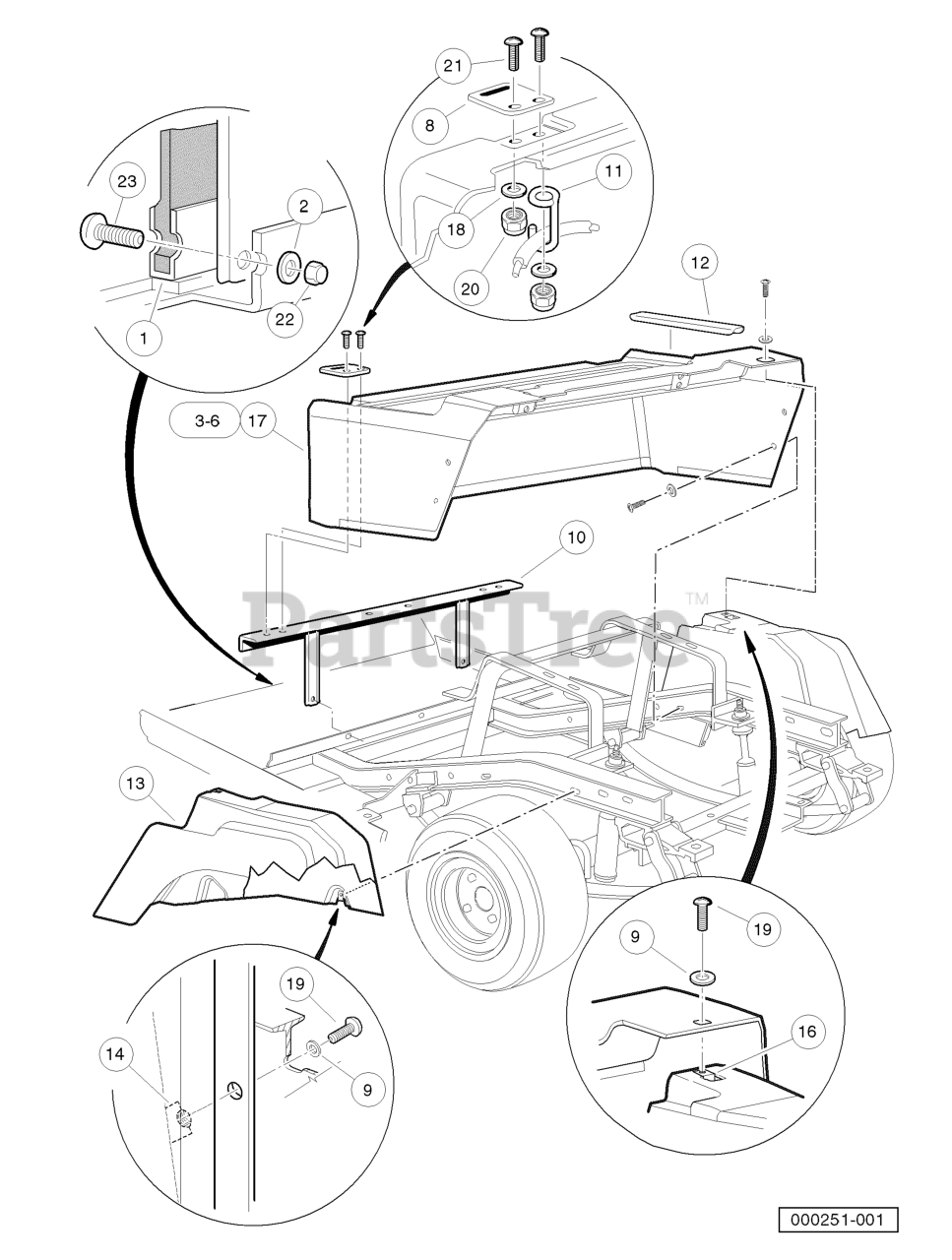

Rear Body And Fender Parts Diagram

  • Title

1

Husqvarna 603003629

BODY KICK PLATE

$

$

Not available

2

Husqvarna 603000222

WASHER

$

$

Not available

3

Husqvarna 102796801

Body, Rear, Gas, Red

$

$

Currently unavailable

4

Husqvarna 102796803

Body, Rear, Gas, Green

$

$

Currently unavailable

5

Husqvarna 102796804

Body, Rear, Gas, Classic Blue

$

$

Currently unavailable

6

Husqvarna 102796805

Body, Rear, Gas, Olive Green

$

$

Currently unavailable

7

Body Assembly

Note: (includes items 8 through 21)

$

$

Not available

8

Husqvarna 603000139

BODY, HINGE PLATE

$

$

Not available

9

Husqvarna 603000222

WASHER

$

$

Not available

10

Husqvarna 603003156

BODY SUPPORT FRONT

$

$

Not available

11

Husqvarna 603003195

CABLE RETAINER

$

$

Not available

12

Husqvarna 603003252

WEAR PAD

$

$

Not available

13

Husqvarna 603003275

FENDER ASM, BODY, DVR

Note: (includes item 14)

$

$

Not available

14

Husqvarna 603003154

U-NUT, 1/4-20 PALNUT BRAND

$

$

Not available

15

Husqvarna 603002292

FENDER ASM, BODY, PASS

Note: (includes item 16)

$

$

Not available

16

Husqvarna 603003154

U-NUT, 1/4-20 PALNUT BRAND

$

$

Not available

17

Husqvarna 603002317

BODY, REAR, GAS, CUT, ORG

$

$

Not available

18

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

19

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

20

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

21

Husqvarna 603000091

SCREW, 1/4-20 X 1.0 TRS HD MCH

$

$

Not available

22

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

23

Husqvarna 603000091

SCREW, 1/4-20 X 1.0 TRS HD MCH

$

$

Not available
