HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Starter and Generator Assembly Model G425419 Parts Diagram

4x2 Utility Vehicle

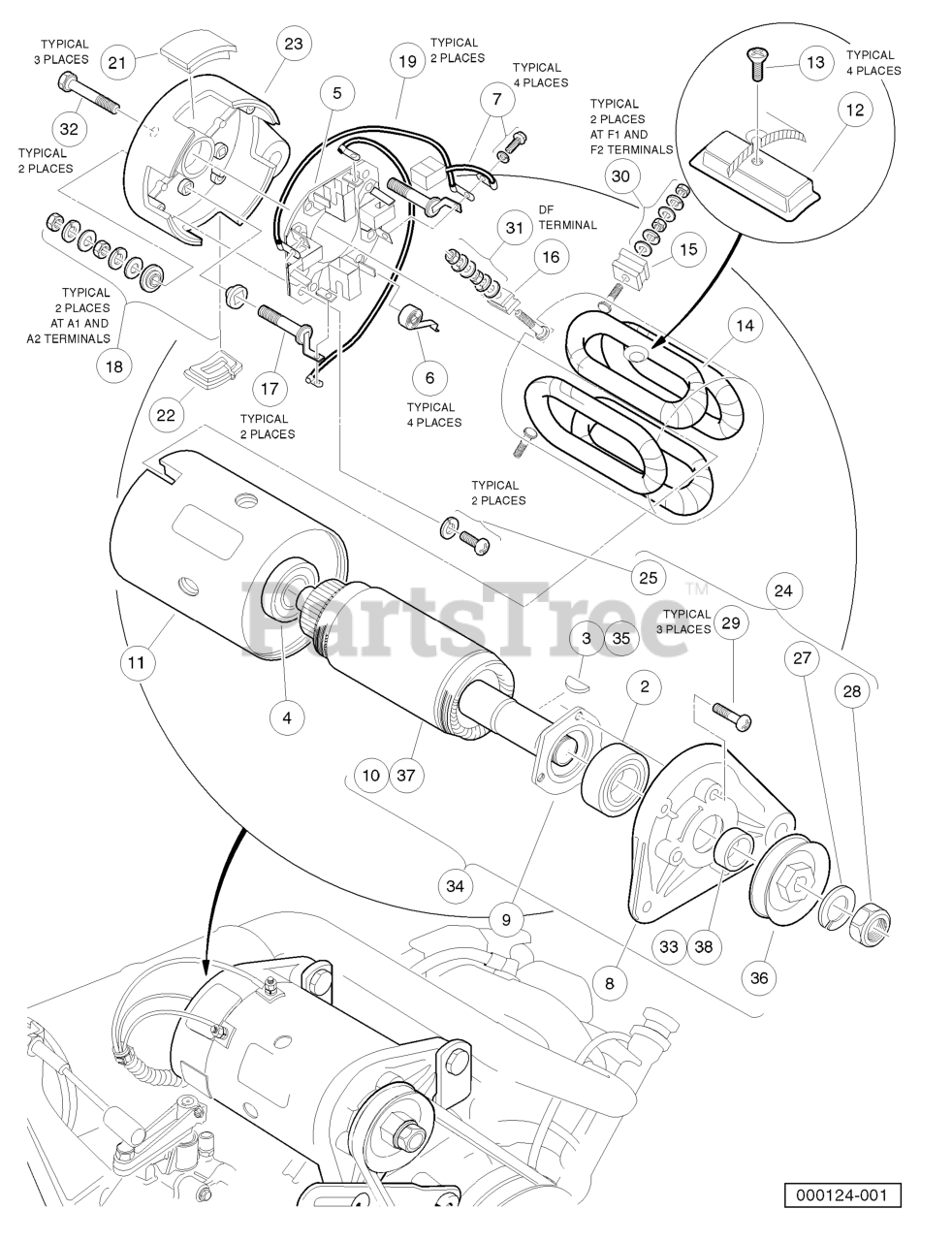

Starter and Generator Assembly Model G425419 Parts Diagram

  • Title

1

Husqvarna 603000516

STARTER-GENERATOR (CW)

Note: (cw) (includes items 2 through 33)

$

$

Not available

2

Husqvarna 603000163

BEARING

$

$

Not available

3

Husqvarna 603000164

KEY, STARTER GENERATOR

$

$

Not available

4

Husqvarna 603000165

BEARING, COMMUTATOR BALL

$

$

Not available

5

Husqvarna 603000456

BRUSH HOLDER ASSEMBLY (CW)

Note: (cw) (includes item 6)

$

$

Not available

6

Husqvarna 603000547

BRUSH SPRING SET

$

$

Not available

7

Husqvarna 603000529

BRUSH & SCREW SET (CW)

Note: (cw)

$

$

Not available

8

Husqvarna 603000530

FRONT BRACKET

$

$

Not available

9

Husqvarna 603000531

RETAINER

$

$

Not available

10

Armature

$

$

Not available

11

Husqvarna 603000533

FIELD COIL HOUSING

$

$

Not available

12

Husqvarna 603000534

POLE SET

$

$

Not available

13

Husqvarna 603000535

SCREW SET

$

$

Not available

14

Husqvarna 603000536

FIELD STATOR COIL ASSEMBLY

$

$

Not available

15

Husqvarna 603000537

F INSULATOR SET

$

$

Not available

16

Husqvarna 603000538

DF INSULATOR

$

$

Not available

17

Husqvarna 603000539

A CONNECTOR (CW)

Note: (cw)

$

$

Not available

18

Husqvarna 603000540

SCREW & MOLD ASSEMBLY SET

$

$

Not available

19

Husqvarna 603000541

BRUSH CONNECTOR ASSEMBLY (CW)

Note: (cw)

$

$

Not available

20

Husqvarna 603000542

COVER SET

Note: (includes items 21 and 22)

$

$

Not available

21

Brush Inspection Port Cover

$

$

Not available

22

Brush Port Cover w/Drain

$

$

Not available

23

Husqvarna 603000543

REAR BRACKET (CW)

Note: (cw)

$

$

Not available

24

Husqvarna 603000544

NUT & SCREW SET

Note: (includes items 25 through 29)

$

$

Not available

25

Husqvarna 603000574

BRUSH HOLDER ASM SCREW

$

$

Not available

26

Washer, M5 Flat

$

$

Not available

27

Washer, M14 Lock

$

$

Not available

28

Nut, Hex, M14 x 2

$

$

Not available

29

Screw, M5 x 0.8 x 18mm

$

$

Not available

30

Husqvarna 603000545

NUT & WASHER SET

$

$

Not available

31

Husqvarna 603000546

NUT & WASHER SET

$

$

Not available

32

Husqvarna 603000548

THROUGH BOLT SET

$

$

Not available

33

Husqvarna 603000609

SPACER

$

$

Not available

34

Husqvarna 603000532

Armature Asm Conversion Kit

Note: (includes items 35 through 38)

$

$

Not available

35

Husqvarna 603000164

KEY, STARTER GENERATOR

$

$

Not available

36

Husqvarna 603000221

PULLEY, STARTER GENERATOR

Note: Item 36 will ONLY fit Model G425419 Starter/Generator.

$

$

Not available

37

Armature

$

$

Not available

38

Husqvarna 603000609

SPACER

$

$

Not available
