HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2006-11) Transaxle / Transmission and Gear Reduction Parts Diagram

4x2 Utility Vehicle

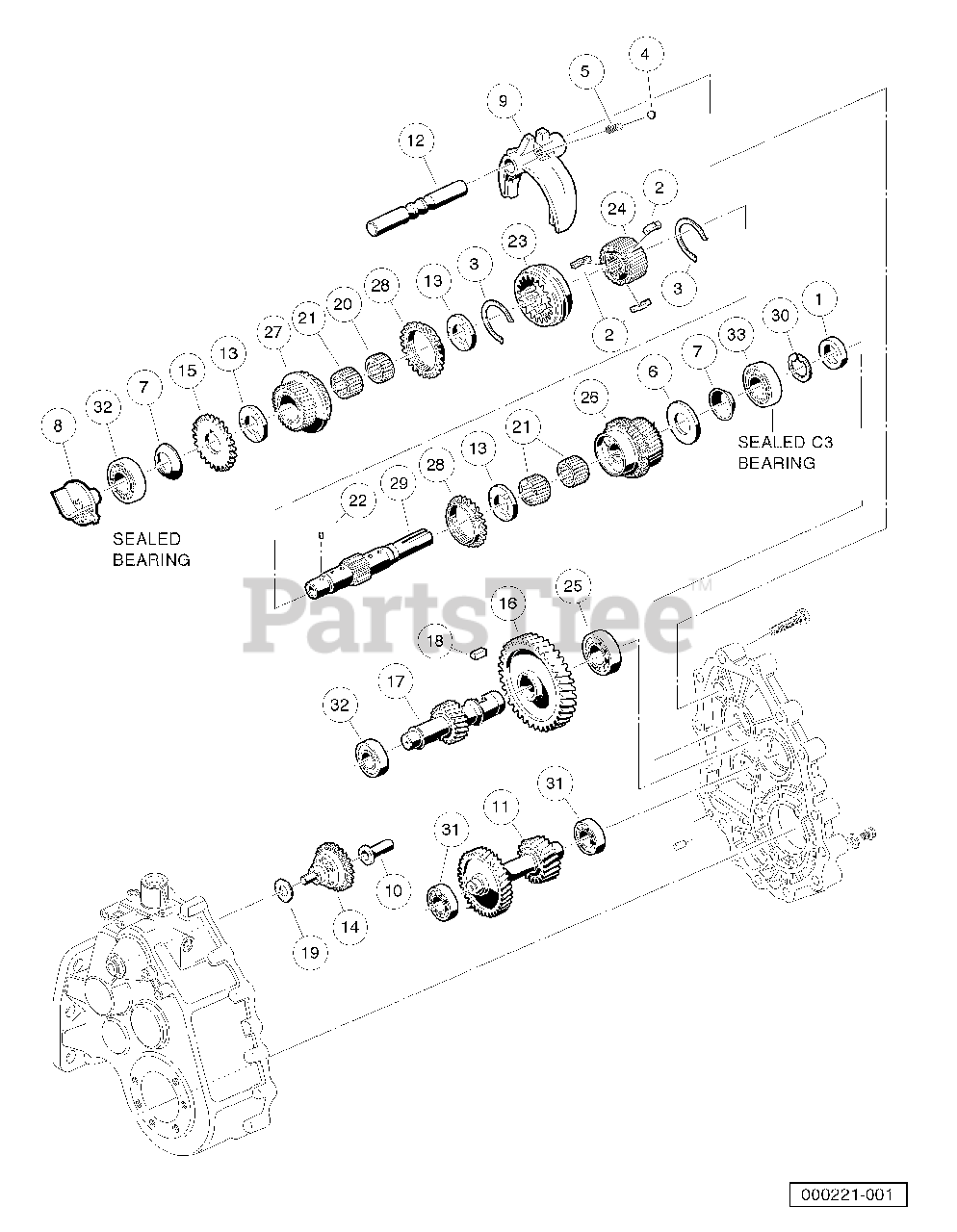

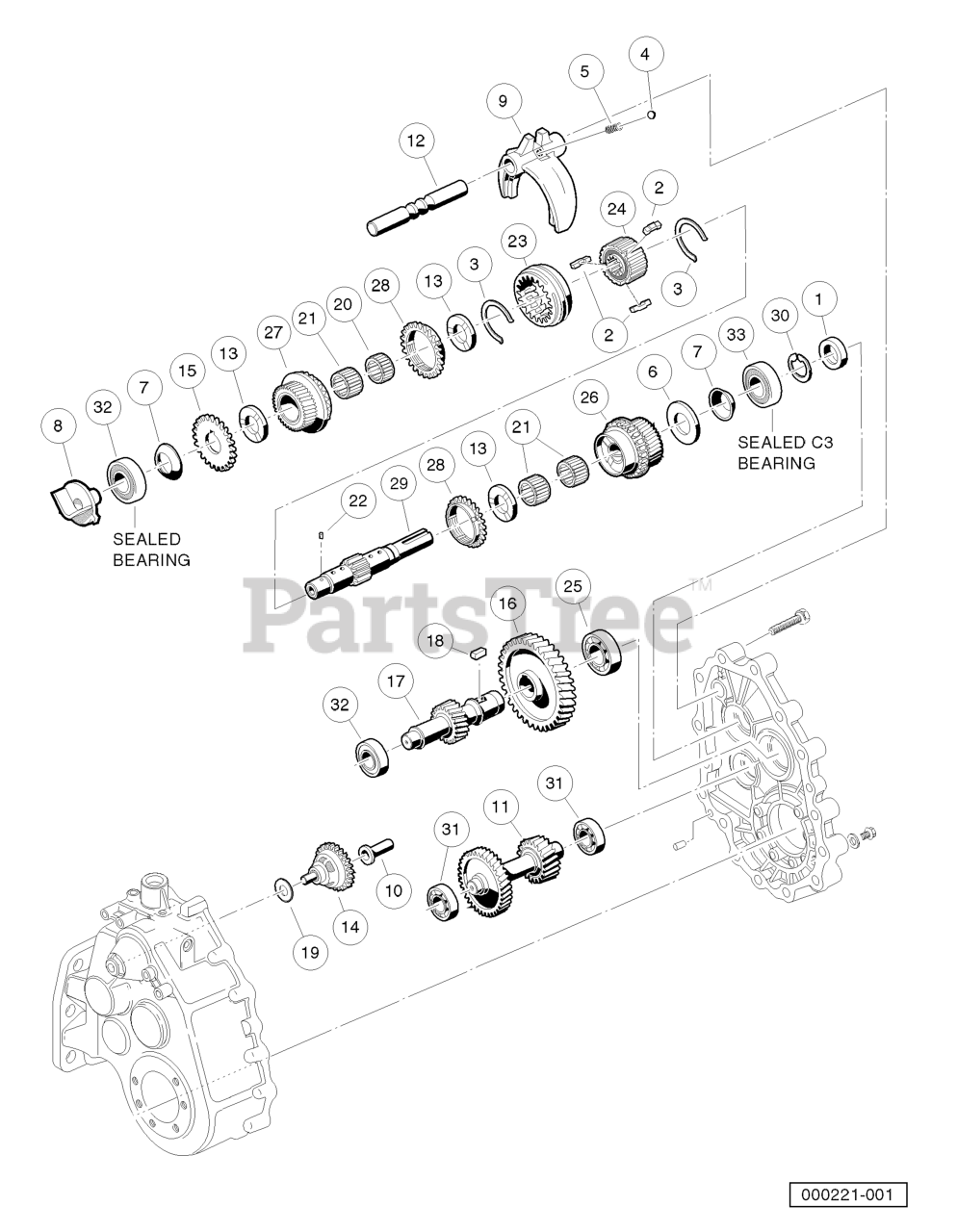

Transaxle / Transmission and Gear Reduction Parts Diagram

  • Title

1

Husqvarna 603000151

Oil Seal

$26.99

$

In Stock, only 1 left!

0

2

Husqvarna 603000152

Synchro Insert

$

$

Not available

3

Husqvarna 603000153

Synchro Spring

$

$

Not available

4

Husqvarna 603000154

Shifter Ball

$

$

Not available

5

Husqvarna 603000155

Shifter Spring

$

$

Not available

6

Husqvarna 603000286

Washer, Thrust

$

$

Not available

7

Husqvarna 603000287

Washer, Spring

$

$

Not available

8

Husqvarna 603000559

Guide

$

$

Not available

9

Husqvarna 603000560

Fork - Shift

$

$

Not available

10

Husqvarna 603000564

Sleeve, Governor

$

$

Not available

11

Husqvarna 603003213

Gear, Cluster

$

$

Not available

12

Husqvarna 603000565

Rod, Shift

$

$

Not available

13

Husqvarna 603000566

Plate, Thrust

$

$

Not available

14

Husqvarna 603000567

Governor Assembly

$

$

Not available

15

Husqvarna 603000568

Gear, Spur

$

$

Not available

16

Husqvarna 603003214

Gear, Helical

Note: (61 Tooth)

$

$

Not available

17

Husqvarna 603003215

Gear, Helical

Note: (17 Tooth)

$

$

Not available

18

Husqvarna 603000570

Key Sunk

$

$

Not available

19

Husqvarna 603000572

Washer

$

$

Not available

20

Husqvarna 603000600

Needle Bearing

$

$

Not available

21

Husqvarna 603000601

Needle Bearing

$

$

Not available

22

Husqvarna 603000602

Pin, .116" Dia X 0.264 Dowel

$

$

Not available

23

Husqvarna 603000603

Sleeve, Synchro

$

$

Not available

24

Husqvarna 603000604

Hub, Synchro Clutch

$

$

Not available

25

Husqvarna 603003234

Bearing, Ball

$

$

Not available

26

Husqvarna 603000622

Gear Assembly, 16-Degree Synchro

Note: (25 Tooth)

$

$

Not available

27

Husqvarna 603003245

Gear Assembly, 16-Degree Rear Synchro

Note: (28 Tooth)

$

$

Not available

28

Husqvarna 603000623

Ring, 16-Degree Synchronizer

$

$

Not available

29

Husqvarna 603001082

Shaft, Trans, with Circlip

$

$

Not available

30

Husqvarna 603001083

Circlip

$

$

Not available

31

Husqvarna 603000076

Bearing

$

$

Not available

32

Husqvarna 603001802

Bearing, Ball, Sealed

$

$

Not available

33

Husqvarna 603001803

Bearing, Ball, Sealed

$

$

Not available
