HUV 4210 G - Husqvarna 4x2 Utility Vehicle (2008-04) IGNITION SYSTEM Parts Diagram

4x2 Utility Vehicle

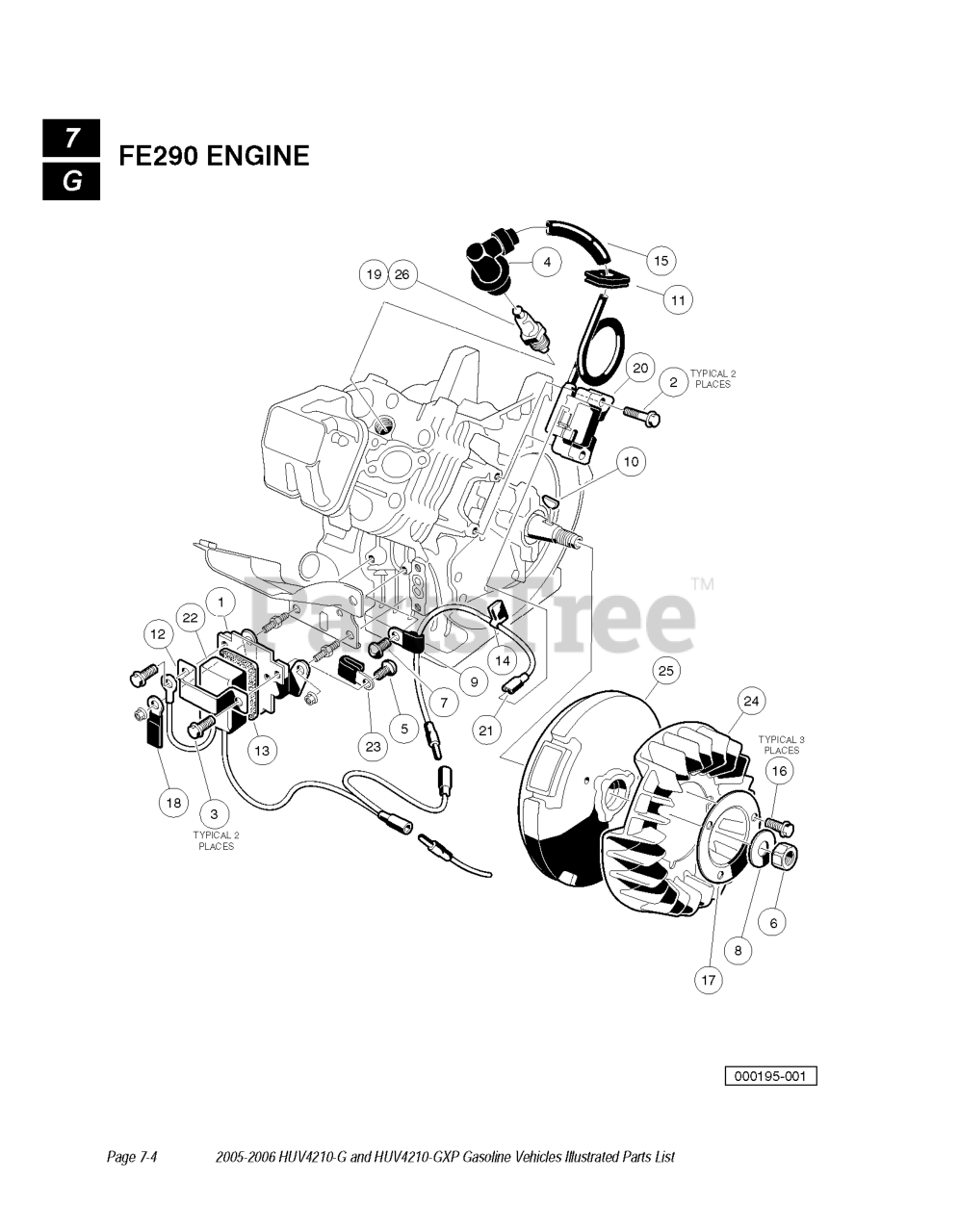

IGNITION SYSTEM Parts Diagram

  • Title

9

Husqvarna 603000344

CLAMP

$

$

Not available

13

Husqvarna 603000362

DAMPER, RPM LIMITER

$

$

Not available

22

Husqvarna 603000583

LIMITER, RPM

$145.99

$

Usually ships in 3-10 days

0

5

Husqvarna 603000323

SCREW, PAN WP CROSS

$

$

Not available

15

Husqvarna 603000364

TUBE, 7MM X 10MM X 70MM

$

$

Not available

25

Husqvarna 603004482

Flywheel, Complete

$

$

Currently unavailable

14

Husqvarna 603000363

CLAMP

$

$

Not available

17

Husqvarna 603000405

PLATE

$

$

Not available

21

Husqvarna 603000582

LEAD WIRE ASSY

$

$

Not available

2

Husqvarna 603000308

BOLT, FLANGED

$

$

Not available

11

Husqvarna 603000355

GROMMET

$

$

Not available

3

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

10

Husqvarna 603000345

KEY

$

$

Not available

16

Husqvarna 603000402

BOLT - FLANGED

$

$

Not available

4

Husqvarna 603003119

CAP ASSEMBLY, PLUG

$

$

Not available

12

Husqvarna 603000356

BAND, RPM LIMITER MOUNT

$

$

Not available

26

Husqvarna 603000580

NGK OHV SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 603000339

SCREW

$

$

Not available

8

Husqvarna 603003135

WASHER, M16 FLAT

$

$

Not available

1

Husqvarna 603000303

BRACKET, RPM LIMITER

$

$

Not available

20

Husqvarna 603000581

COIL, IGNITION

$

$

Not available

19

Husqvarna 603000007

SPARK PLUG OHV

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 603003120

NUT, HEX, FINE

$

$

Not available

24

Husqvarna 603003228

FAN, FE290 CW

$

$

Not available

18

Husqvarna 603004379

CLAMP

$

$

Not available
