HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Accelerator Pedal Assembly Parts Diagram

4x2 Utility Vehicle

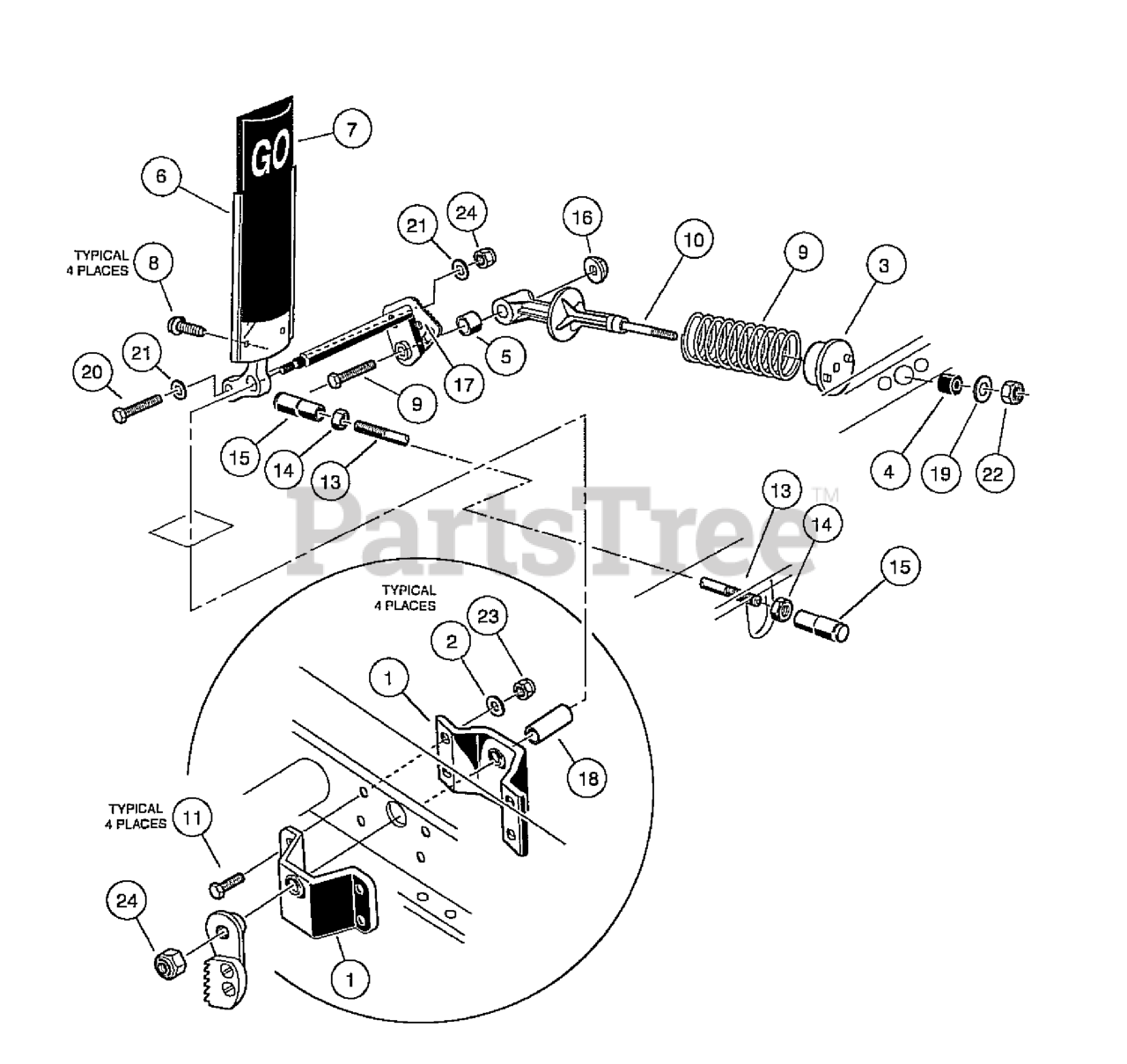

Accelerator Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 603000126

ACCEL BRKT & BEARING ASSY

$

$

Not available

2

Husqvarna 603000194

WASHER

$

$

Not available

3

Husqvarna 603000392

CUP, SPRING

$

$

Not available

4

Husqvarna 603000393

BUMPER, SPRING RETURN

$

$

Not available

5

Husqvarna 603000395

BEARING, PIVOT SUPPORT

$

$

Not available

6

Husqvarna 603000432

SUB ASM, ACCELERATOR PEDAL

Note: (includes items 7 and 8)

$

$

Not available

7

Husqvarna 603000192

PAD , ACCL PEDAL

$

$

Not available

8

Husqvarna 603000081

SCREW TYPE AB SHT MTL

$

$

Not available

9

Husqvarna 603000490

SPRING, ACCELERATOR RETURN

$

$

Not available

10

Husqvarna 603000499

RETAINER, SPRING

$

$

Not available

11

Husqvarna 603000528

SCREW, 1/4-20 X 1.125 HEX CAP

$

$

Not available

12

Husqvarna 603002205

SCREW, 1/4-20 X 1.500 FLANGE
(Superseded to 603003199)

$

$

Not available

13

Husqvarna 603002229

ACCEL ROD ASM STD GAS
(Superseded to 603003223)

Note: (includes items 14 and 15)

$

$

Not available

14

Husqvarna 603000119

NUT

$

$

Not available

15

Husqvarna 603000129

JOINT, BALL

$

$

Not available

16

Husqvarna 603000617

LOCKNUT, 1/4-28 HEX FLANGE NYL
(Superseded to 603000094)

$

$

Not available

17

Husqvarna 603000697

ACCEL. PIVOT ROD ASM. KIT

Note: (includes item 18)

$

$

Not available

18

Husqvarna 603002238

SPACER ASSEMBLY

$

$

Not available

19

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

20

Husqvarna 603000068

SCREW, 3/8-16 X 1.5 HX HD CAP

$

$

Not available

21

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

22

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

23

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

24

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available
