HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Brake Pedal And Cable Assembly - Vehicle With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

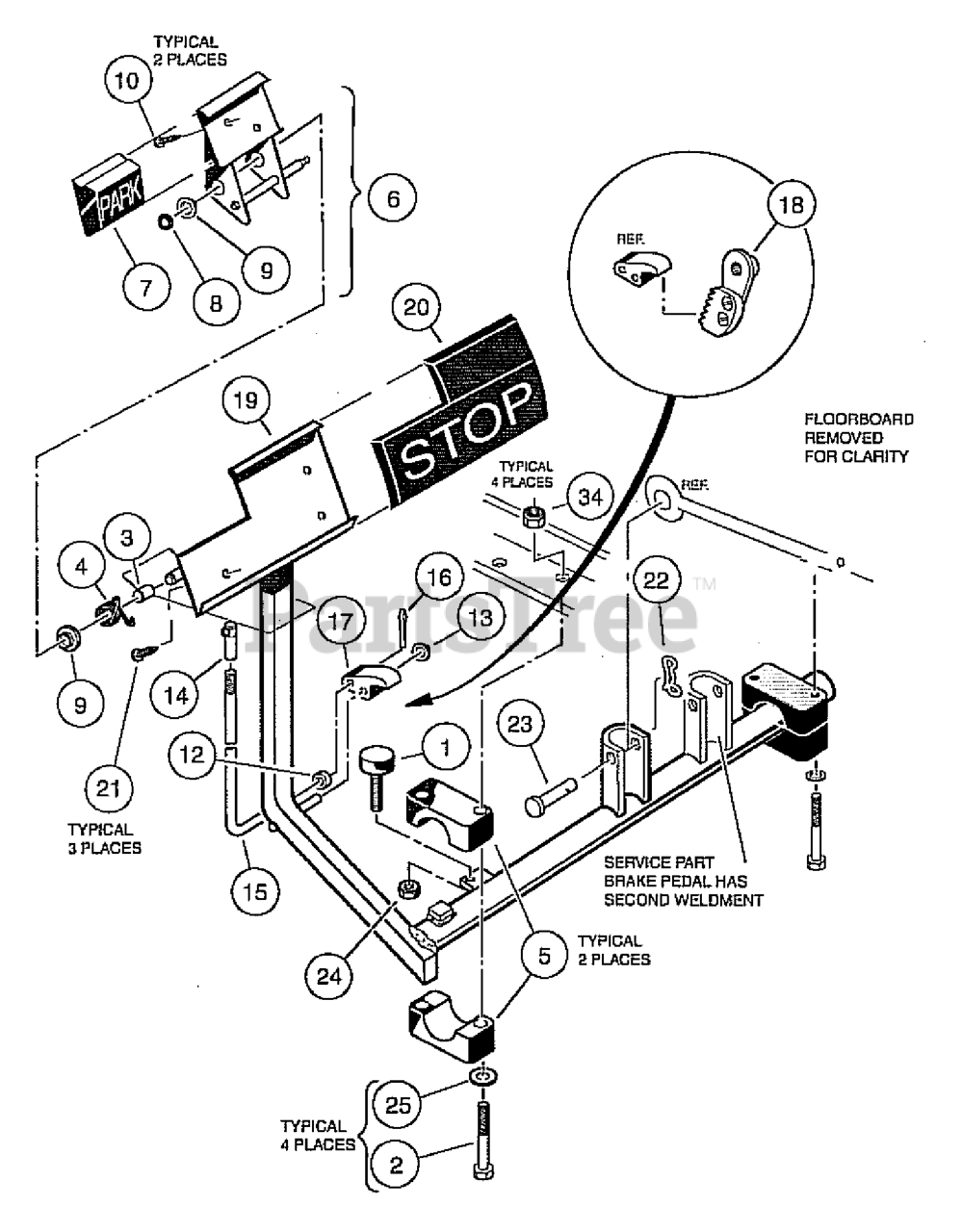

Brake Pedal And Cable Assembly - Vehicle With Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603000113

BUMPER, BRAKE PEDAL RUBBER

$

$

Not available

2

Husqvarna 603000115

SCREW HEX CAP

$

$

Not available

3

Husqvarna 603002030

Hill Brake Spacer

$

$

Not available

4

Husqvarna 603002032

SPRING, HILL BRAKE TORSION
(Superseded to 603003042)

$

$

Not available

5

Husqvarna 603000121

PACKAGE, BRAKE MOUNTING BLOCK

$

$

Not available

6

Husqvarna 603002035

KIT, HILL BRAKE PEDAL
(Superseded to 603003043)

Note: (Includes items 7 through 10)

$

$

Not available

7

Husqvarna 603002061

PAD, HILL BRAKE
(Superseded to 603003065)

$

$

Not available

8

Husqvarna 603002062

PUSHNUT, 3/8
(Superseded to 603003066)

$

$

Not available

9

Husqvarna 603002340

BUSHING, NYLON
(Superseded to 603003302)

$

$

Not available

10

Husqvarna 603000081

SCREW TYPE AB SHT MTL

$

$

Not available

11

Husqvarna 603002038

HILL BRK LATCH KIT 9529&LTR
(Superseded to 603003046)

Note: (includes items 12 through 18)

$

$

Not available

12

Husqvarna 603002027

SLEEVE, HILL BRAKE ROD
(Superseded to 603003037)

$

$

Not available

13

Husqvarna 603002029

PUSHNUT, 3/8
(Superseded to 603003039)

$

$

Not available

14

Husqvarna 603002031

BALL JOINT, 1/4-28
(Superseded to 603003041)

$

$

Not available

15

Rod, Hlll Brake

$

$

Not available

16

Husqvarna 603002159

COTTER PIN 7/64 X 1/2 SS
(Superseded to 603003155)

$

$

Not available

17

Pawl, Hill Brake

$

$

Not available

18

Ratchet Assembly

$

$

Not available

19

Husqvarna 603002206

BRAKE PEDAL KIT
(Superseded to 603003200)

Note: (includes items 20 and 21)

$

$

Not available

20

Husqvarna 603002060

PAD, BRAKE PEDAL
(Superseded to 603003064)

$

$

Not available

21

Husqvarna 603000081

SCREW TYPE AB SHT MTL

$

$

Not available

22

Husqvarna 603000882

PIN, BOW TIE LOCKING

$

$

Not available

23

Husqvarna 603000883

PIN, 3/8 X 1 5/16 CLEVIS
(Superseded to 603002601)

$

$

Not available

24

Husqvarna 603000062

NUT, 1/4-20 HEX

$

$

Not available

25

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available
