HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Driven Clutch Parts Diagram

4x2 Utility Vehicle

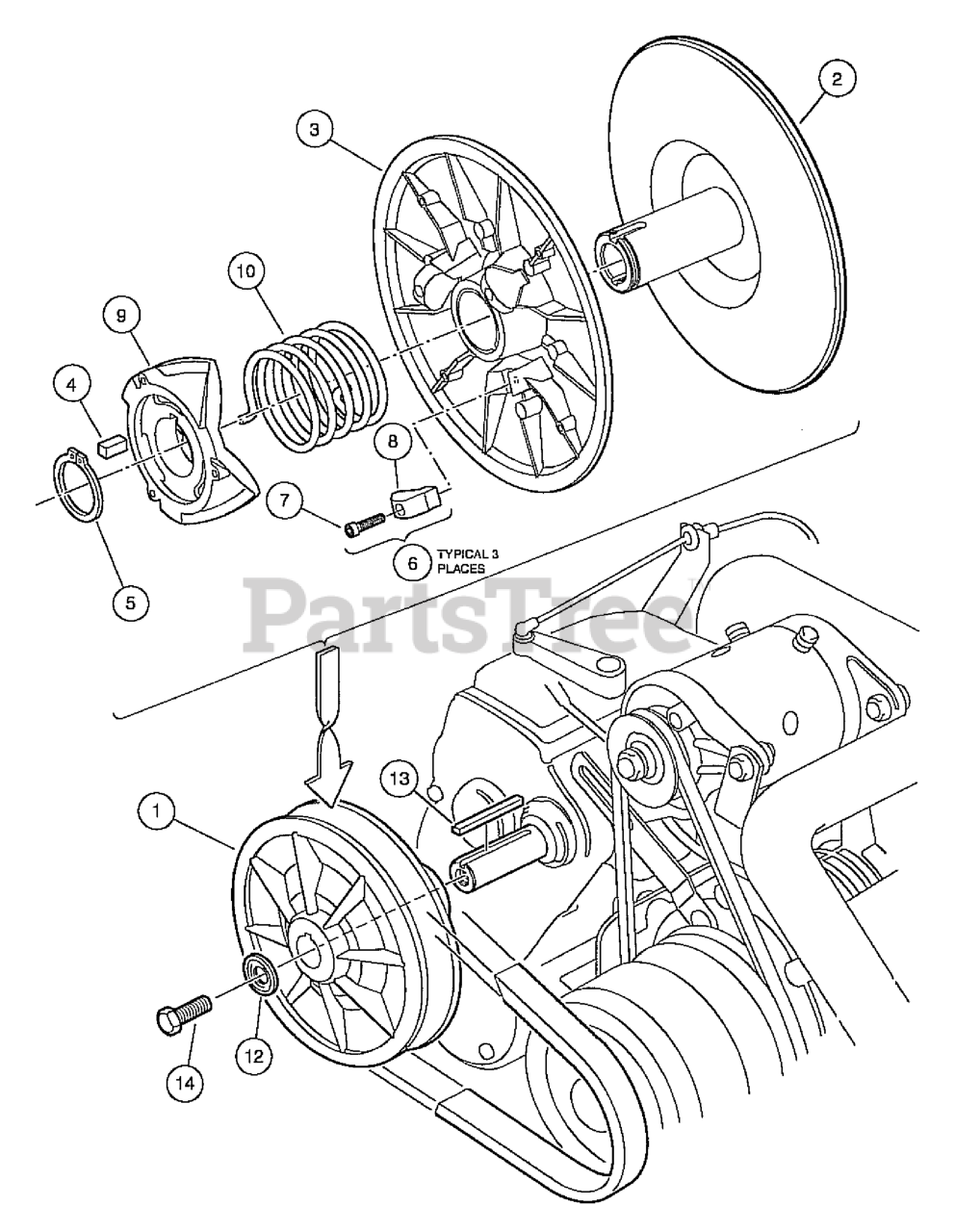

Driven Clutch Parts Diagram

  • Title

1

Husqvarna 603000518

DRIVEN CLUTCH ASM - FE290D

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 603000205

FIXED FACE ASSY

$

$

Not available

3

Husqvarna 603000206

MOVEABLE FACE ASSY

$

$

Not available

4

Husqvarna 603000207

KEY, DRIVEN CLUTCH

$

$

Not available

5

Husqvarna 603000208

RING

$

$

Not available

6

Husqvarna 60300022B

Kit, Driven Clutch Button

Note: (includes items 7 and 8)

$

$

Currently unavailable

7

Husqvarna 603002049

SCREW, #8/32 X 3/4 SOC HD CAP
(Superseded to 603003055)

$

$

Not available

8

Husqvarna 603002066

KIT, DRIVEN CLUTCH BUTTON

$

$

Not available

9

Husqvarna 603000430

CAM, DRIVEN CLUTCH

$

$

Not available

10

Husqvarna 603000522

SPRING, DRIVEN CLUTCH REVERSED

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 603001801

CLUTCH REPAIR KIT

Note: (includes items 12 through 14)

$

$

Not available

12

Husqvarna 603000391

WASHER, DRVN CLUTCH BELLEVILLE

$

$

Not available

13

Husqvarna 603000515

KEY, 3/16 SQ X 1.50"

$

$

Not available

14

Husqvarna 603000817

SCREW, 5/16-18X3/4 HX HD W/PTC

$

$

Not available
