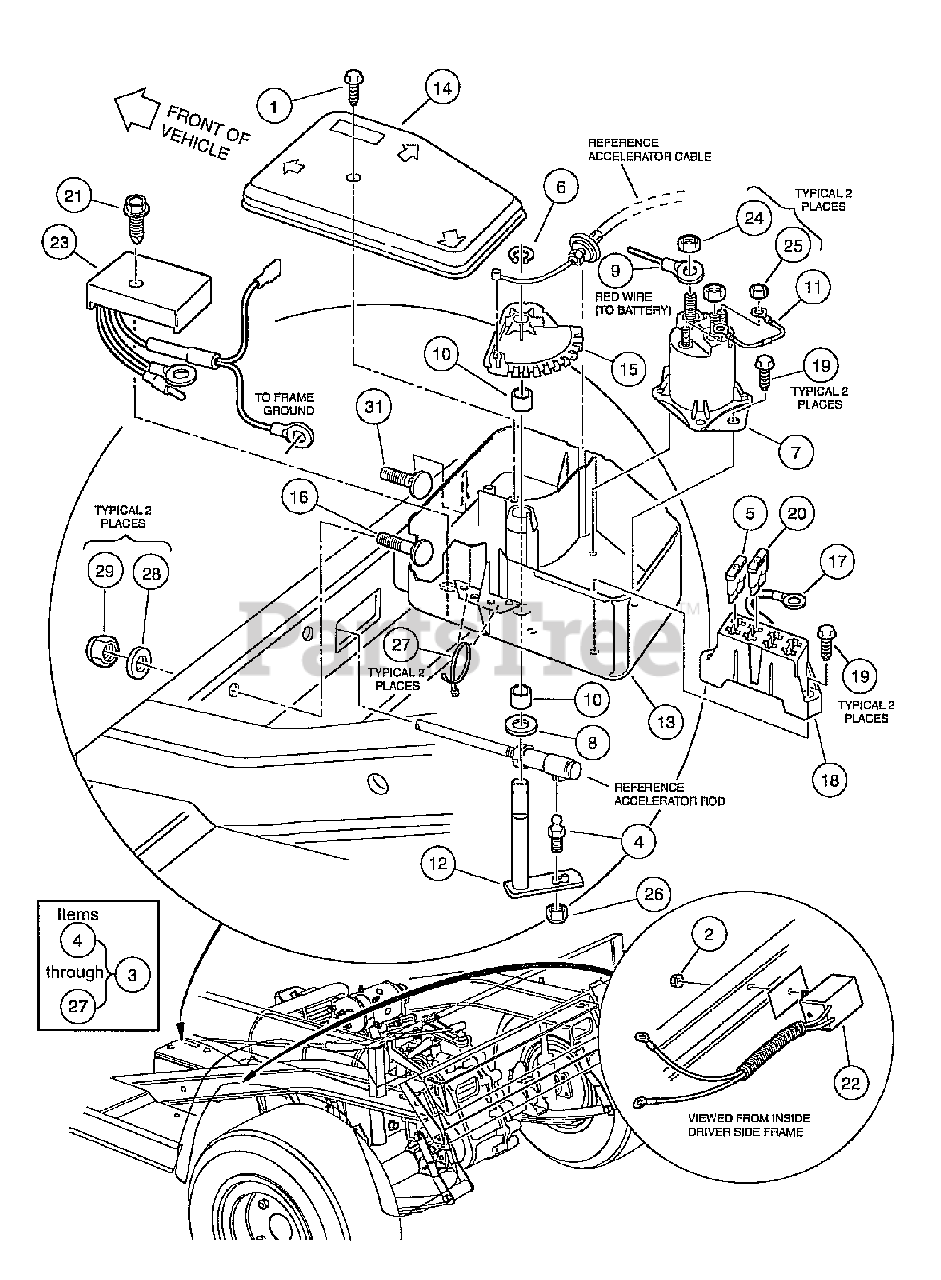

HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Electrical Component Box - Gasoline Vehicle Parts Diagram

4x2 Utility Vehicle

Electrical Component Box - Gasoline Vehicle Parts Diagram

  • Title

1

Husqvarna 603000268

Screw, #12-16 X 0.625 Hi-Lo

$

$

Not available

2

Husqvarna 603000616

Locknut, 5/16-18 Hex Flange

$

$

Not available

3

Husqvarna N/A

Assembly, Electrical Component Box

Note: (includes items 4 through 27)

$

$

Not available

4

Husqvarna 603000117

Stud, 1/4-28 X 0.560 Ball

$

$

Not available

5

Husqvarna 603000135

Fuse, 10-Amp

$

$

Not available

6

Husqvarna 603000177

Ring, 0.338" Internal Retaining

$

$

Not available

7

Husqvarna 603000180

Solenoid, 12-Volt

$

$

Not available

8

Husqvarna 603000204

Washer, 0.38" Id Delrin Flat

$

$

Not available

9

Husqvarna 603000211

Wire Assembly #6 Red

$

$

Not available

10

Husqvarna 603000215

Bushing, Secondary Weight, Split

$

$

Not available

11

Husqvarna 603000238

Assembly, Diode

$

$

Not available

12

Husqvarna 603000249

Bell Crank and Shaft Assembly

$

$

Not available

13

Husqvarna 603000251

Box, Electrical Component

$

$

Not available

14

Husqvarna 603000252

Cover, Electric Box

$

$

Not available

15

Husqvarna 603000253

Cam, Electric Box

$

$

Not available

16

Husqvarna 603000257

Bolt, Carriage, 5/16-18 X 2.0

$

$

Not available

17

Husqvarna 603000266

Wire Assy, #10 Red

$

$

Not available

18

Husqvarna 603000267

Fuse Block

$

$

Not available

19

Husqvarna 603000268

Screw, #12.16 X 0.625 Hi-Lo

$

$

Not available

20

Husqvarna 603000293

Fuse, 20-Amp

$

$

Not available

21

Husqvarna 603000527

Screw, 1/4-15 X 1.50 Hi-Lo Hex

$

$

Not available

22

Husqvarna 603000826

Diode Assembly

$

$

Not available

23

Husqvarna 603002287

Voltage Regulator

$

$

Not available

24

Husqvarna 603000066

Nut, 5/16-18 Hex

$

$

Not available

25

Husqvarna 603000084

Nut, #10-32 Hex

$

$

Not available

26

Husqvarna 603000094

Locknut, 1/4-28 Nylon Insert

$

$

Not available

27

Husqvarna 603000099

Tie Wrap, 8" Nylon
(Superseded to 603002963)

$

$

Not available

28

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

29

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

30

Husqvarna 603000082

Bolt, Carriage, 5/16-18 X 1.5

$

$

Not available
