HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) FE290 Engine - Crankcase And Camshaft Parts Diagram

4x2 Utility Vehicle

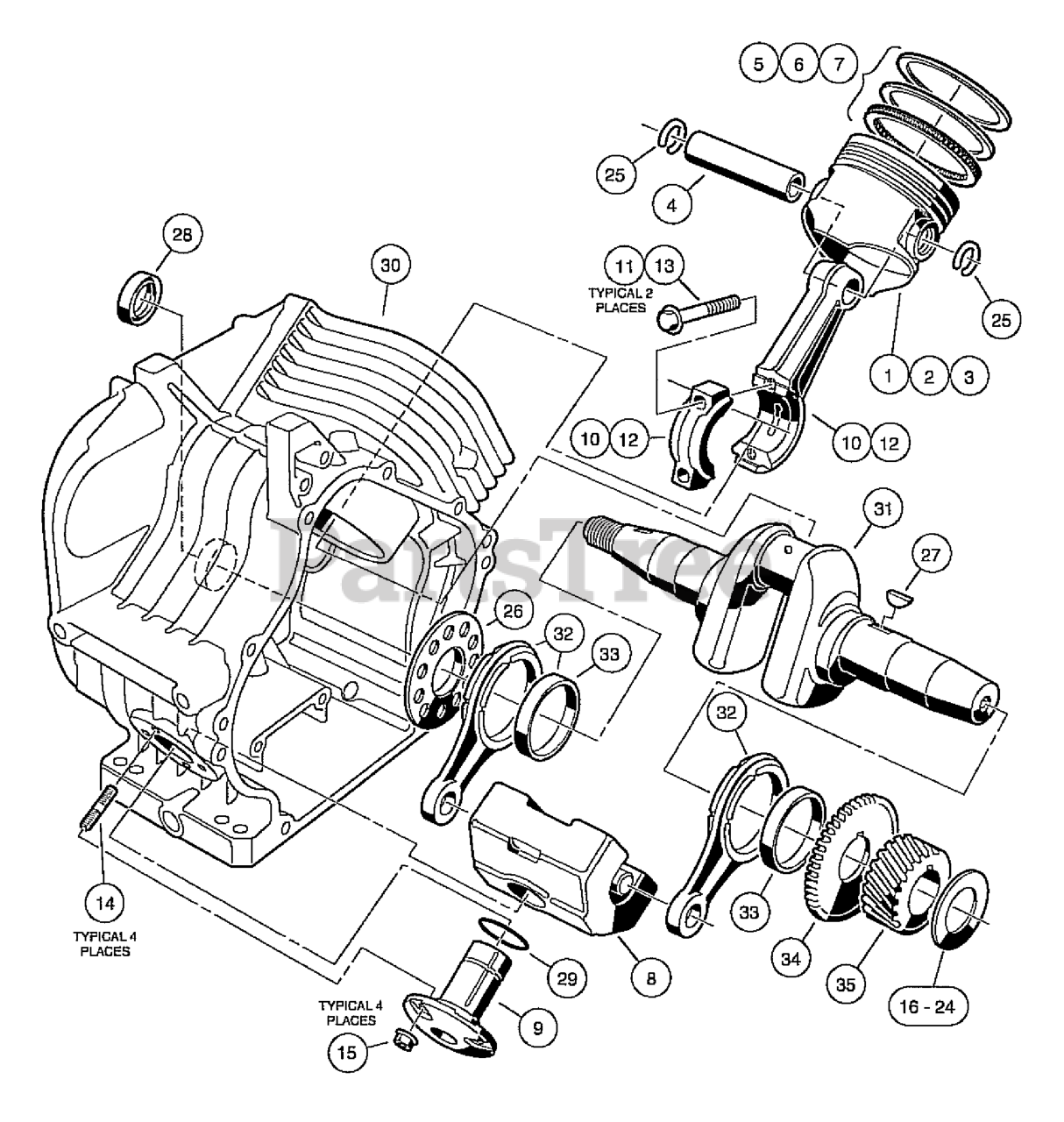

FE290 Engine - Crankcase And Camshaft Parts Diagram

  • Title

1

Husqvarna 603002111

PISTON, ENGINE STD OHV
(Superseded to 603003107)

$

$

Not available

2

Husqvarna 603002112

PISTON, ENGINE .25MM OVER
(Superseded to 603003108)

$

$

Not available

3

Husqvarna 603002113

PISTON, ENGINE .50MM OVER
(Superseded to 603003109)

$

$

Not available

4

Husqvarna 603002114

PIN - PISTON
(Superseded to 603003110)

$

$

Not available

5

Husqvarna 603002115

RING-SET-PISTON STD
(Superseded to 603003111)

$

$

Not available

6

Husqvarna 603002116

RING-SET-PISTON .25MM OVER
(Superseded to 603003112)

$

$

Not available

7

Husqvarna 603002117

RING-SET-PISTON .50MM OVER
(Superseded to 603003113)

$

$

Not available

8

Husqvarna 603002118

WEIGHT, COUNTER-BALANCE
(Superseded to 603003114)

$

$

Not available

9

Husqvarna 603000312

SHAFT, GUIDE, COUNTER-BALANCE

$

$

Not available

10

Husqvarna 603002120

ROD ASM - CONNECTING STD OHV
(Superseded to 603003116)

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603002125

BOLT
(Superseded to 603003121)

$

$

Not available

12

Husqvarna 603002121

ROD ASM - CONNECTING .50MM UND
(Superseded to 603003117)

Note: (includes item 13)

$

$

Not available

13

Husqvarna 603002125

BOLT
(Superseded to 603003121)

$

$

Not available

14

Husqvarna 603000338

STUD, 6X14

$

$

Not available

15

Husqvarna 603000341

NUT

$

$

Not available

16-24

Husqvarna 603002140

SHIM, CRANKSHAFT T=1.13
(Superseded to 603003136)

$

$

Not available

16-24

Husqvarna 603002141

SHIM, CRANKSHAFT T=1.18
(Superseded to 603003137)

$

$

Not available

16-24

Husqvarna 603002142

SHIM, CRANKSHAFT T=1.23
(Superseded to 603003138)

$

$

Not available

16-24

Husqvarna 603002143

SHIM, CRANKSHAFT T=1.28
(Superseded to 603003139)

$

$

Not available

16-24

Husqvarna 603002144

SHIM, CRANKSHAFT T=1.33
(Superseded to 603003140)

$

$

Not available

16-24

Husqvarna 603002145

SHIM, CRANKSHAFT T=1.38
(Superseded to 603003141)

$

$

Not available

16-24

Husqvarna 603002146

SHIM, CRANKSHAFT T=1.43
(Superseded to 603003142)

$

$

Not available

16-24

Husqvarna 603002147

SHIM, CRANKSHAFT T=1.48
(Superseded to 603003143)

$

$

Not available

16-24

Husqvarna 603002148

SHIM, CRANKSHAFT T=1.53 OHV
(Superseded to 603003144)

$

$

Not available

25

Husqvarna 603002149

RING, SNAP
(Superseded to 603003145)

$

$

Not available

26

Husqvarna 603002150

SPACER
(Superseded to 603003146)

$

$

Not available

27

Husqvarna 603000345

KEY

$

$

Not available

28

Husqvarna 603002153

SEAL, OIL
(Superseded to 603003149)

$

$

Not available

29

Husqvarna 603000351

O-RING

$

$

Not available

30

Husqvarna 603002231

CRANKCASE COMPLETE, FE290 CW
(Superseded to 603003225)

$

$

Not available

31

Husqvarna 603002239

CRANKSHAFT, FE290 LH THREAD
(Superseded to 603003232)

Note: (includes items 32 through 35)

$

$

Not available

32

Husqvarna 603002127

ROD
(Superseded to 603003123)

$

$

Not available

33

Husqvarna 603002154

BEARING, PLANE OHV
(Superseded to 603003150)

$

$

Not available

34

Husqvarna 603002134

GEAR, SPUR
(Superseded to 603003130)

$

$

Not available

35

Husqvarna 603002135

GEAR, HELICAL
(Superseded to 603003131)

$

$

Not available
