HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Fuel System - FE350 Parts Diagram

4x2 Utility Vehicle

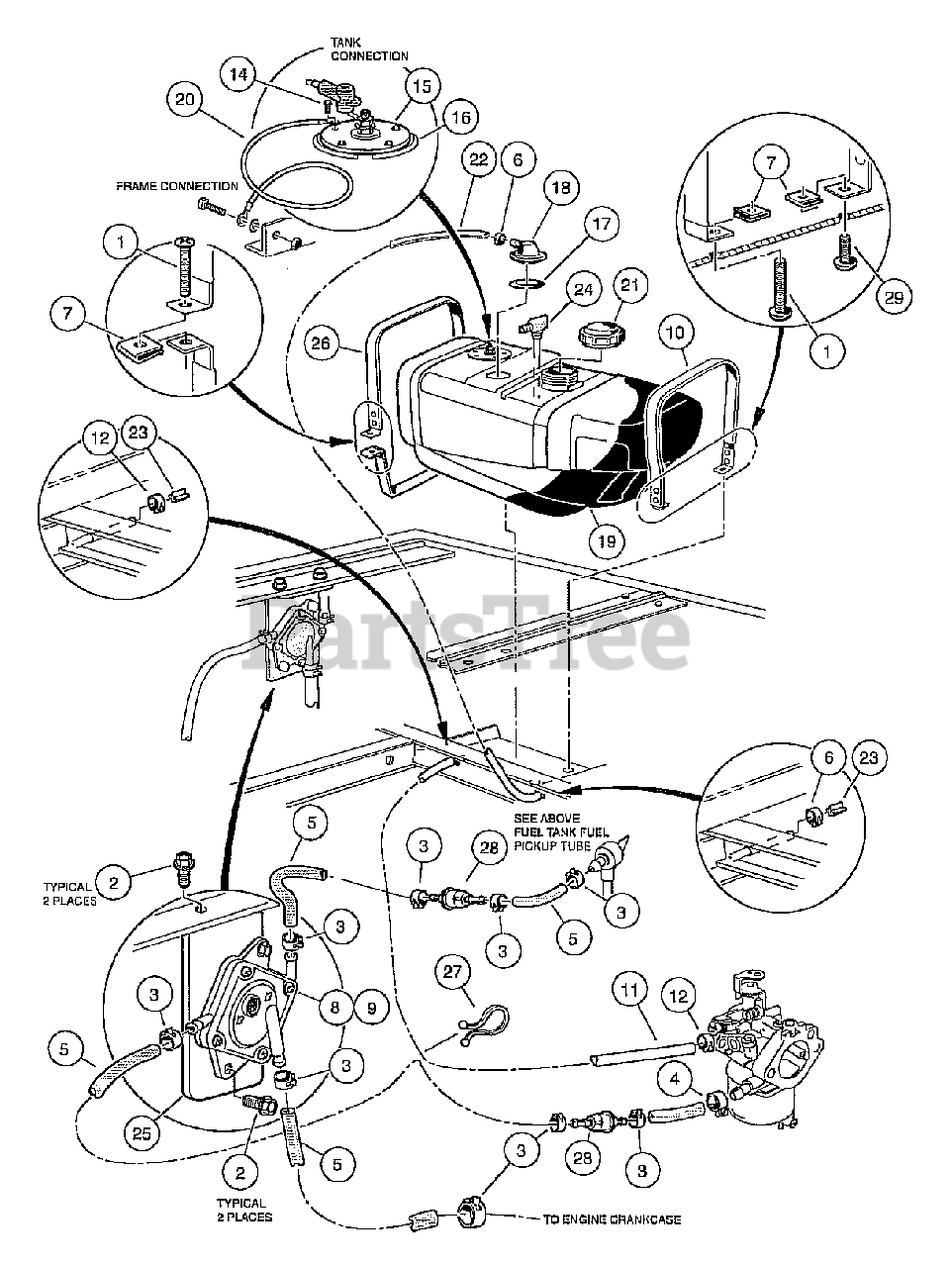

Fuel System - FE350 Parts Diagram

  • Title

1

Husqvarna 603000131

Screw, 1/4-20 X 2.00 Phl.truss

$

$

Not available

2

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

3

Husqvarna 603000149

Clamp, 0.460 Red Hose

$

$

Not available

4

Husqvarna 603000181

Clamp, 3/8" Hose (screw type)

$

$

Not available

5

Husqvarna 603000182

Fuel Line
(Superseded to 531309542)

$

$

Not available

6

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

7

Husqvarna 603000210

Nut, 1/4-20 Speed

$

$

Not available

8

Husqvarna 603000230

Pump, Impulse Fuel

$

$

Not available

9

Husqvarna 603000231

Kit, Impulse Pump Rebuild

$

$

Not available

10

Husqvarna 603000237

Fuel Strap Assembly Rear

$

$

Not available

11

Husqvarna 603000275

Tank Kit w/Sending Unit

Note: (includes Items 12 through 24)

$

$

Not available

12

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

13

Husqvarna 603002085

Fuel Tank with Sending Unit

Note: (includes items 14 through 21)

$

$

Not available

14

Husqvarna 603000173

Screw, #10-16 Hex Head Hi-lo

$

$

Not available

15

Husqvarna 603000174

Sending Unit, Fuel Level

Note: Must replace fuel sending unit gasket when servicing this component.

$

$

Not available

16

Husqvarna 603002051

Gasket, Sending Unit
(Superseded to 603003057)

$

$

Not available

17

Husqvarna 603000241

Insulation Grommet

$

$

Not available

18

Husqvarna 603000242

Vent, Fuel Tank
(Superseded to 589258901)

$

$

Not available

19

Husqvarna N/A

Fuel Tank with Vent and Sending Unit Hole

$

$

Not available

20

Husqvarna N/A

Wire Assembly #16 Black

$

$

Not available

21

Husqvarna 603000243

Cap, Fuel Tank, Gasoline
(Superseded to 531309543)

$

$

Not available

22

Husqvarna 603000465

Tube, Carburetor Air Vent

$

$

Not available

23

Husqvarna 603000503

Vent Barb

$

$

Not available

24

Husqvarna 603000575

Fuel Pickup w/Shut-Off Valve

$

$

Not available

25

Husqvarna 603002242

Mount, Fuel Pump
(Superseded to 603003235)

$

$

Not available

26

Husqvarna 603000611

Fuel Strap Assy, Front

$

$

Not available

27

Husqvarna 603000624

Clamp, Plastic Tie

$

$

Not available

28

Husqvarna 603000008

Filter, Fuel, 30 Micron

$

$

Not available

29

Husqvarna 603000090

Screw, 1/4-20 X .75 Trs Hd Mch

$

$

Not available
