HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Fuel System - FE350 Parts Diagram

4x2 Utility Vehicle

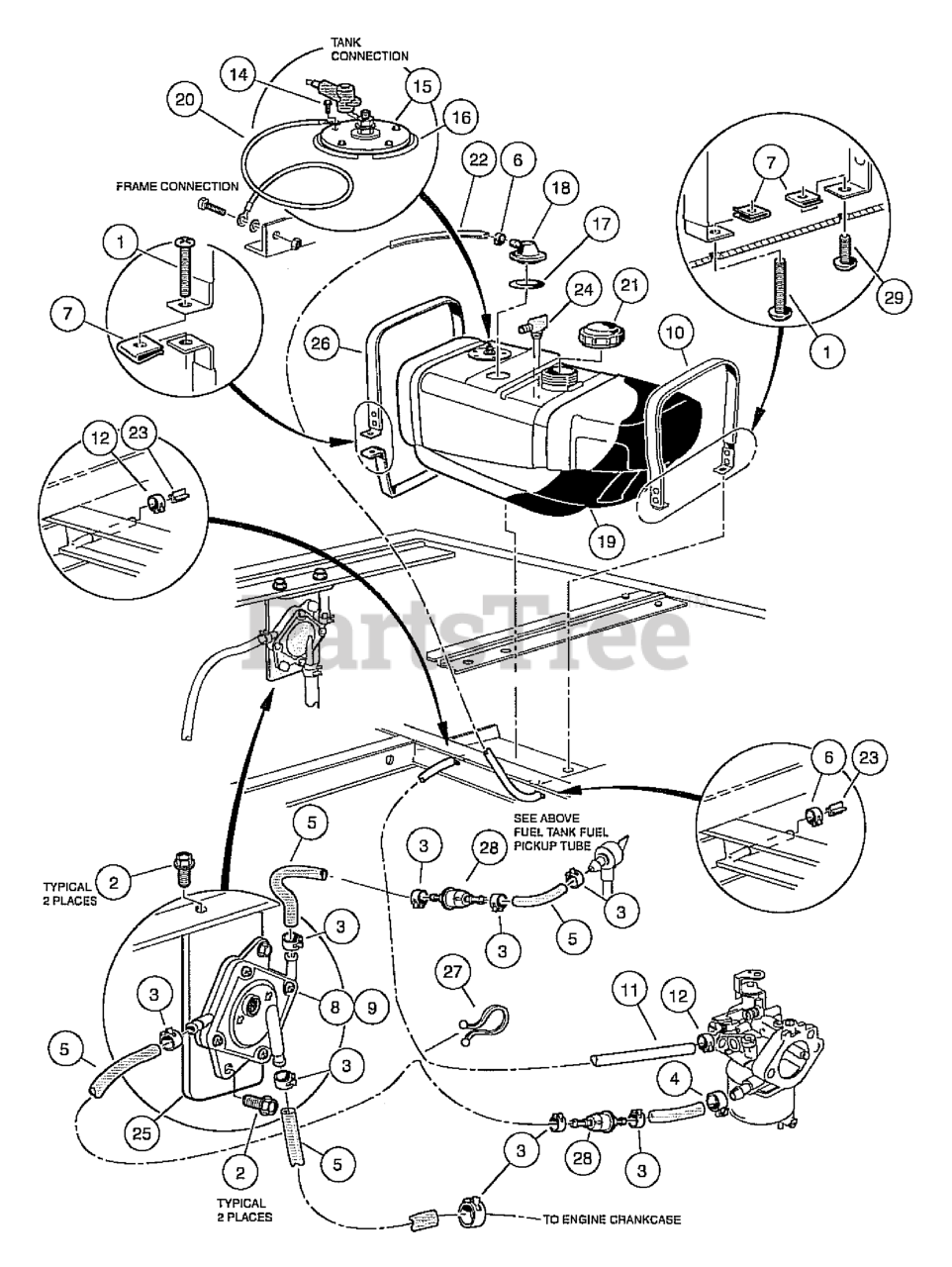

Fuel System - FE350 Parts Diagram

  • Title

1

Husqvarna 603000131

SCREW PHL TRUSS

$

$

Not available

2

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

3

Husqvarna 603000149

CLAMP

$

$

Not available

4

Husqvarna 603000181

LAMP, 3/8" S.S HOSE

$

$

Not available

5

Husqvarna 603000182

FUEL LINE
(Superseded to 531309542)

$

$

Not available

6

Husqvarna 603000185

CLAMP

$

$

Not available

7

Husqvarna 603000210

NUT, 1/4-20 SPEED

$

$

Not available

8

Husqvarna 603000230

PUMP, IMPULSE FUEL

$

$

Not available

9

Husqvarna 603000231

SQ IMPULSE PUMP REBUILD KIT

$

$

Not available

10

Husqvarna 603000237

FUEL STRAP ASSEMBLY REAR

$

$

Not available

11

Husqvarna 603000275

TANK KIT W/ SENDING UNIT

Note: (includes Items 12 through 24)

$

$

Not available

12

Husqvarna 603000185

CLAMP

$

$

Not available

13

Husqvarna 603002085

ASM TANK FUEL W/SU DS UTL

Note: (includes items 14 through 21)

$

$

Not available

14

Husqvarna 603000173

SCREW

$

$

Not available

15

Husqvarna 603000174

FUEL GUAGE SENDING UNIT

Note: Must replace fuel sending unit gasket when servicing this component.

$

$

Not available

16

Husqvarna 603002051

SENDING UNIT GASKET
(Superseded to 603003057)

$

$

Not available

17

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

18

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available

19

Fuel Tank with Vent and Sending Unit Hole

$

$

Not available

20

Wire Assembly #16 Black

$

$

Not available

21

Husqvarna 603000243

CAP
(Superseded to 531309543)

$

$

Not available

22

Husqvarna 603000465

TUBE, CARBURETOR AIR VENT

$

$

Not available

23

Husqvarna 603000503

VENT BARB

$

$

Not available

24

Husqvarna 603000575

FUEL PICKUP W/ SHUTOFF

$

$

Not available

25

Husqvarna 603002242

MOUNT, FUEL PUMP
(Superseded to 603003235)

$

$

Not available

26

Husqvarna 603000611

FUEL STRAP ASSY, FRONT

$

$

Not available

27

Husqvarna 603000624

CLAMP, PLASTIC TIE

$

$

Not available

28

Husqvarna 603000008

FILTER FUEL 30 MICRON

$

$

Not available

29

Husqvarna 603000090

SCREW 1/4-20 X .75

$

$

Not available
