HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Intake Duct, Choke, And Air Box Assembly Parts Diagram

4x2 Utility Vehicle

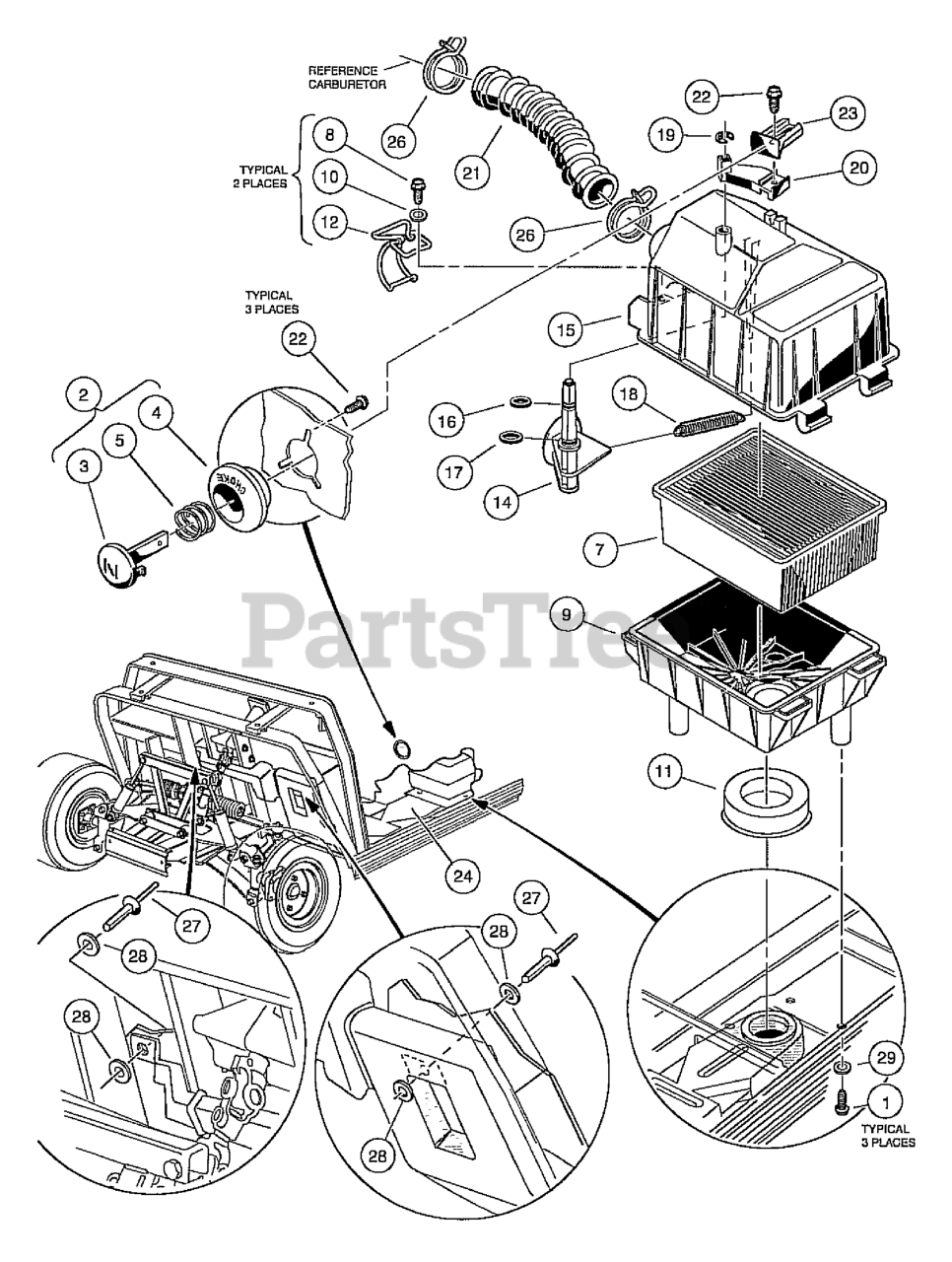

Intake Duct, Choke, And Air Box Assembly Parts Diagram

  • Title

1

Husqvarna 603000268

SCREW, #12-16 X .625 HI-LO

$

$

Not available

2

Husqvarna 603002182

BUTTON ASSY, CHOKE
(Superseded to 603003176)

Note: (Includes items 3 through 5)

$

$

Not available

3

Husqvarna 603002183

LEVER, CHOKE
(Superseded to 603003177)

$

$

Not available

4

Husqvarna 603002184

GUIDE, CHOKE LEVER
(Superseded to 603003178)

$

$

Not available

5

Husqvarna 603002202

COMPRESSION SPRING
(Superseded to 603003196)

$

$

Not available

6

Husqvarna 603000501

AIR BOX ASSY

Note: (includes items 7 through 13)

$

$

Not available

7

Husqvarna 603000004

AIR FILTER OHV

$

$

Not available

8

Husqvarna 603000491

SCREW, #8 X .500 HX HD HI-LO

$

$

Not available

9

Husqvarna 603000494

BOTTOM, AIR BOX

$

$

Not available

10

Husqvarna 603000555

WASHER, #8 SS FLAT WASHER

$

$

Not available

11

Husqvarna 603000592

SEAL, INTAKE

$

$

Not available

12

Husqvarna 603000594

LATCH, WIREFORM

$

$

Not available

13

Husqvarna 603000619

TOP ASSY, AIR BOX

Note: (includes items 14 through 20)

$

$

Not available

14

Valve, Choke

$

$

Not available

15

Top, Air Box

$

$

Not available

16

O-Ring, 5/16

$

$

Not available

17

O-Ring, 3/8

$

$

Not available

18

Husqvarna 603000497

SPRING, EXTENSION RETURN

$

$

Not available

19

Husqvarna 603000498

RETAINING RING .25 SHAFT

$

$

Not available

20

Husqvarna 603000591

LEVER, CHOKE

$

$

Not available

21

Husqvarna 603000523

AIR INTAKE HOSE

$

$

Not available

22

Husqvarna 603002200

SCREW, #12-16 X .50 WSHR HI-LO
(Superseded to 603003194)

$

$

Not available

23

Husqvarna 603002237

CHOKE POSITIONER
(Superseded to 603003231)

$

$

Not available

24

Husqvarna 603002249

DUCT ASSY, DS AIR
(Superseded to 603003241)

$

$

Not available

25

Husqvarna 603002011

Tape Kit, Air Duct Repair

Note: not illustrated.

$

$

Currently unavailable

26

Husqvarna 603000618

CLAMP, 1.58" ID HOSE

$

$

Not available

27

Husqvarna 603000067

RIVET, 3/16 X .5 ALUM POP

$

$

Not available

28

Husqvarna 603000051

WASHER FLAT

$

$

Not available

29

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available
