HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Rear Suspension, Electric Vehicles With Two-Wheel Brakes Parts Diagram

4x2 Utility Vehicle

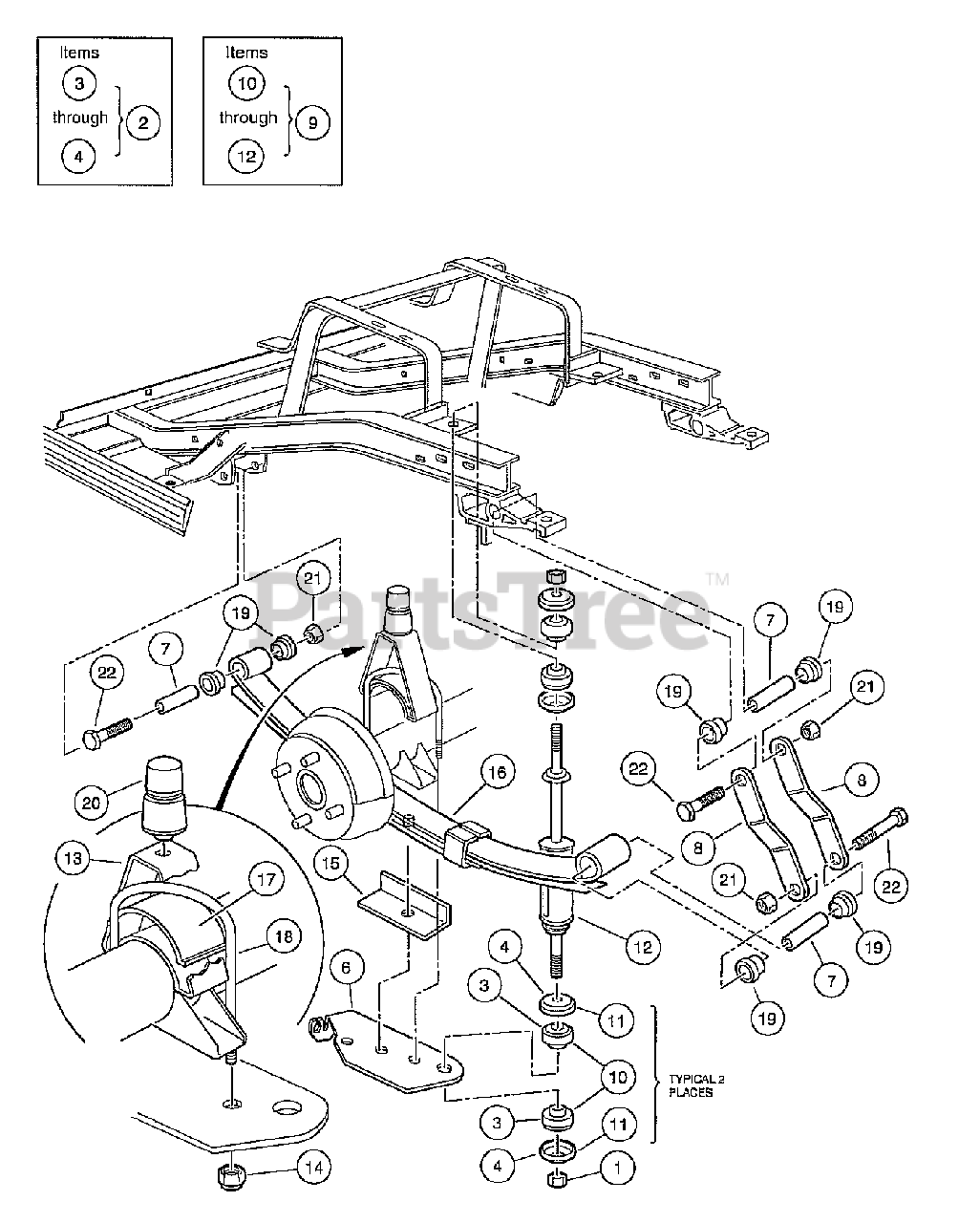

Rear Suspension, Electric Vehicles With Two-Wheel Brakes Parts Diagram

  • Title

1

Husqvarna 603000104

Nut, 3/8-24 Hex

$

$

Not available

2

Husqvarna 603000122

Kit, Shock Absorber Cushion
(Superseded to 603003022)

Note: (includes items 3 and 4)

$

$

Not available

3

Husqvarna N/A

Cushion, Shock Absorber

$

$

Not available

4

Husqvarna N/A

Retainer, Shock Absorber Cushion

$

$

Not available

5

Husqvarna 603002044

Bracket, Shock Mounting, Right (Passenger)
(Superseded to 603003050)

$

$

Not available

6

Husqvarna 603002045

Bracket, Shock Mounting, Left (Driver)
(Superseded to 603003051)

$

$

Not available

7

Husqvarna 603000136

Bushing, Steel

$

$

Not available

8

Husqvarna 603002046

Shackle, Rear Spring
(Superseded to 603003052)

$

$

Not available

9

Husqvarna 603002050

Shock Absorber Kit
(Superseded to 603003056)

Note: (Includes items 10 through 12)

$

$

Not available

10

Husqvarna N/A

Cushion, Shock Absorber

$

$

Not available

11

Husqvarna N/A

Retainer, Shock Absorber Cushion

$

$

Not available

12

Husqvarna 603002286

Shock Absorber Rear
(Superseded to 603004378)

$

$

Not available

13

Husqvarna 603002076

Bumper Mount, Angled
(Superseded to 603003076)

$

$

Not available

14

Husqvarna 603000233

Locknut, 7/16-14 Nylon Insert

$

$

Not available

15

Husqvarna 603002077

Spring Retainer
(Superseded to 603003077)

$

$

Not available

16

Husqvarna 603002078

Rear Leaf Spring
(Superseded to 603003078)

$

$

Not available

17

Husqvarna 603002080

Spacer, Overload Bumper
(Superseded to 603003079)

$

$

Not available

18

Husqvarna 603002081

U-Bolt
(Superseded to 603003080)

$

$

Not available

19

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

20

Husqvarna 603002164

Bumper, Jounce
(Superseded to 603003159)

$

$

Not available

21

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

22

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
