HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Seat Bottom And Armrest Parts Diagram

4x2 Utility Vehicle

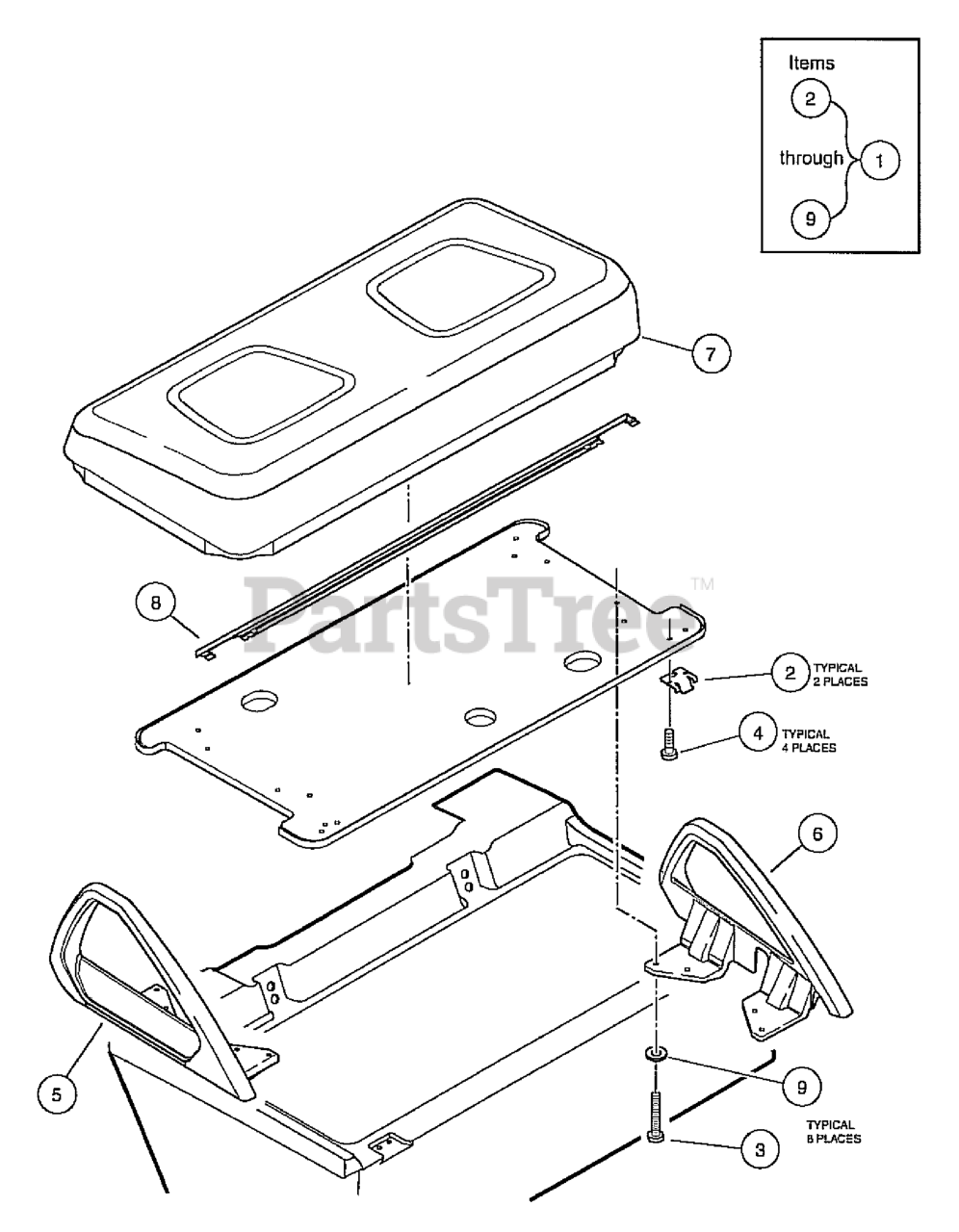

Seat Bottom And Armrest Parts Diagram

  • Title

1

Husqvarna 603002258

SEAT ASSEMBLY GRAY

Note: (includes items 2 through 9)

$

$

Not available

2

Husqvarna 603000125

HINGE PLATE

$

$

Not available

3

Husqvarna 603002157

SCREW, 1/4-20 X 1.50 HX HD CAP
(Superseded to 603003153)

$

$

Not available

4

Husqvarna 60300224B

Screw, 1/4-20 X 0.75 Hex-Head

$

$

Currently unavailable

5

Husqvarna 603002255

ARMREST, RH, DEBADGED
(Superseded to 603003247)

$

$

Not available

6

Husqvarna 603002256

ARMREST, LY, DEBADGED
(Superseded to 603003248)

$

$

Not available

7

Husqvarna 603002259

GRAY VINL COVER SEAT

$

$

Not available

8

Husqvarna 603002260

GASKET, SEAT
(Superseded to 603003250)

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available
