HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2005-06) Steering Gear Assembly Parts Diagram

4x2 Utility Vehicle

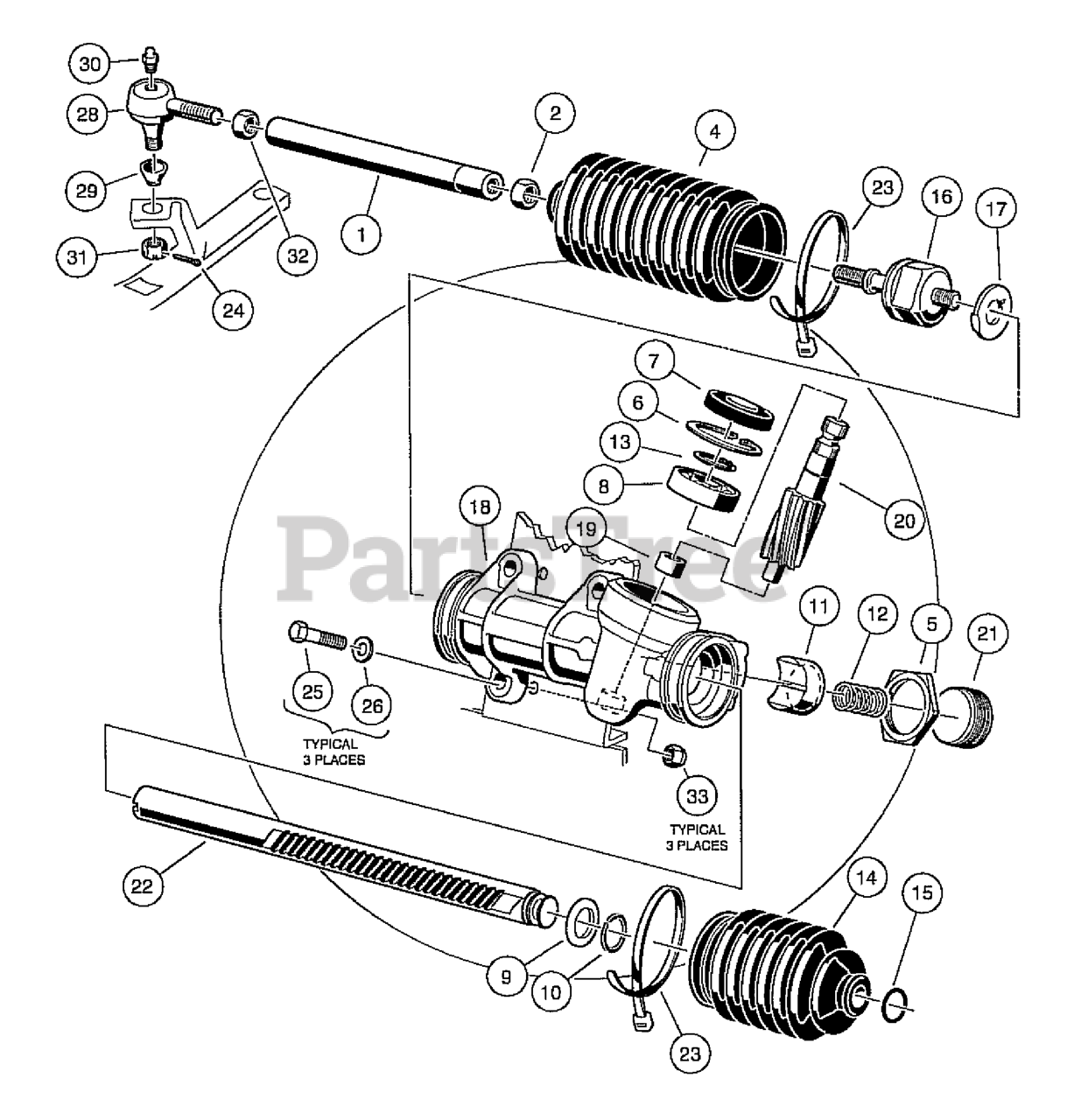

Steering Gear Assembly Parts Diagram

  • Title

1

Husqvarna 603002048

DRAG LINK RACK & PINION
(Superseded to 603003054)

$

$

Not available

2

Husqvarna 603000167

12MM HEX NUT

$

$

Not available

3

Husqvarna 603002207

ASM, STEERING RACK, 3.13
(Superseded to 603003201)

Note: (includes items 4 through 23)

$

$

Not available

4

Husqvarna 603000166

BELLOWS, LONG

$

$

Not available

5

Husqvarna 60300016B

Rack Screw Locknut

$

$

Currently unavailable

6

Husqvarna 603000169

SNAP RING

$

$

Not available

7

Husqvarna 603000170

SEAL, STEERING PINION DUST

$

$

Not available

8

Husqvarna 603000549

BEARING BALL

$

$

Not available

9

Husqvarna 603002208

STOP WASHER
(Superseded to 603003202)

$

$

Not available

10

Husqvarna 603002209

STOP RING C - TYPE
(Superseded to 603003203)

$

$

Not available

11

Husqvarna 603000550

SUPPORT YOKE

$

$

Not available

12

Husqvarna 603000551

RACK GUIDE PRESSURE SPRING

$

$

Not available

13

Husqvarna 603000552

C-TYPE STOP RING

$

$

Not available

14

Husqvarna 603002210

BELLOWS, SHORT
(Superseded to 603003204)

$

$

Not available

15

Husqvarna 603002211

DUST SEAL RETAINING RING
(Superseded to 603003205)

$

$

Not available

16

Husqvarna 603000553

INNER BALL JOINT ASM

$

$

Not available

17

Husqvarna 603002212

WASHER, TAB
(Superseded to 603003206)

$

$

Not available

18

Box, Steering Gear

$

$

Not available

19

Bearing, Lower Pinion

$

$

Not available

20

Pinion, Steering

$

$

Not available

21

Screw, Rack Guide

$

$

Not available

22

Rack, Steering

$

$

Not available

23

Husqvarna 603000099

TIE WRAP, 8" NYLON
(Superseded to 603002963)

$

$

Not available

24

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

25

Husqvarna 603000068

SCREW, 3/8-16 X 1.5 HX HD CAP

$

$

Not available

26

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

27

Husqvarna 603002346

BALL JOINT, LH
(Superseded to 603002040)

Note: (includes items 28 through 31)

$

$

Not available

28

Husqvarna 603002040

BALL JOINT, LH

$

$

Not available

29

Husqvarna 603002041

SEAL, VERTICAL SOCKET DUST
(Superseded to 603003047)

$

$

Not available

30

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 603002348

NUT, 3/8-24 UNF HEX THICK SLOT
(Superseded to 603003309)

$

$

Not available

32

Husqvarna 603002347

NUT, 1/2-20 HEX
(Superseded to 603003308)

$

$

Not available

33

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available
