HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2006-11) Starter and Generator Assembly Model G425419 Parts Diagram

4x2 Utility Vehicle

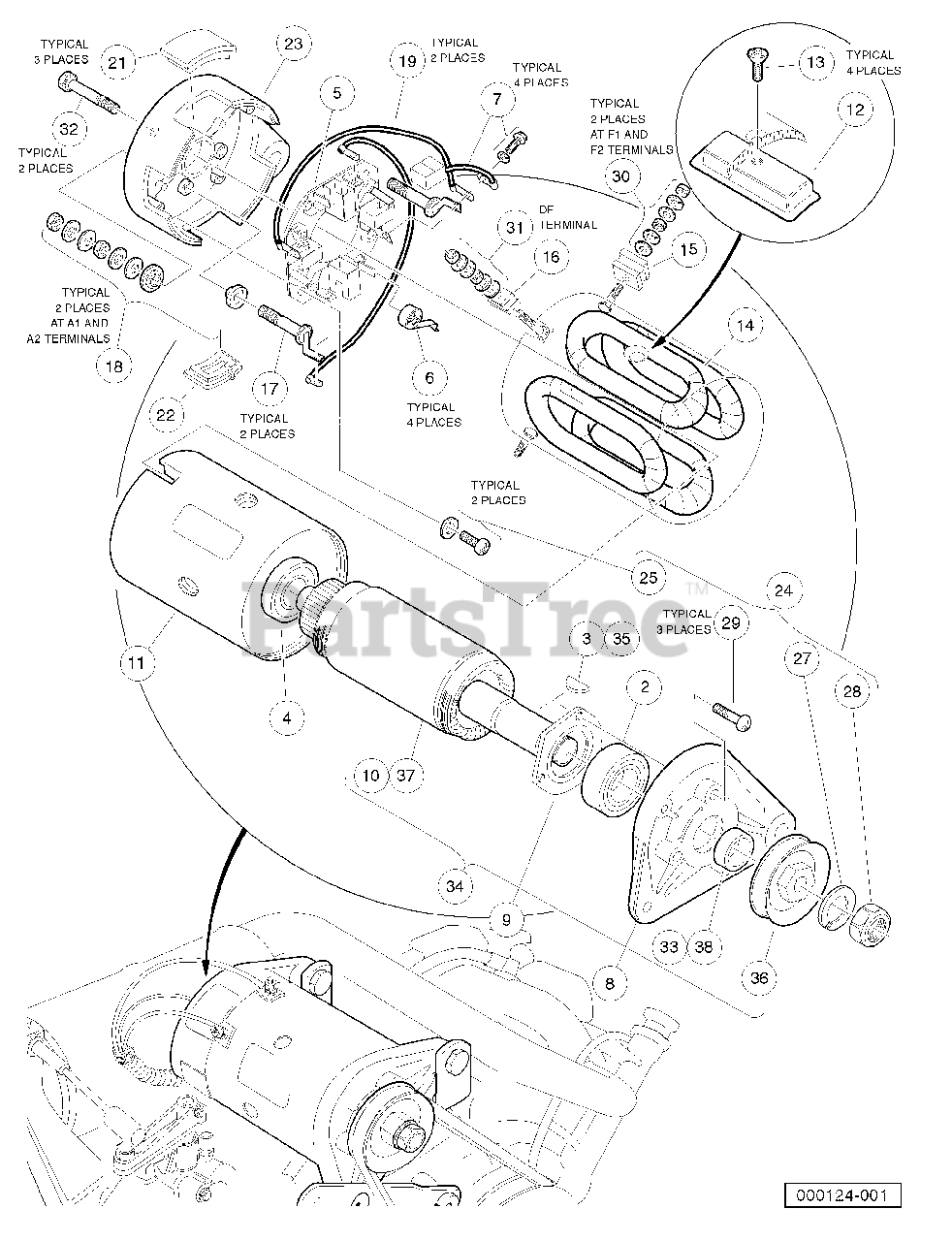

Starter and Generator Assembly Model G425419 Parts Diagram

  • Title

1

Husqvarna 603000516

Starter/Generator

Note: (cw) (includes items 2 through 33)

$

$

Not available

2

Husqvarna 603000163

Bearing, Output Shaft Ball

$

$

Not available

3

Husqvarna 603000164

Key, Starter/Generator

$

$

Not available

4

Husqvarna 603000165

Bearing, Ball

$

$

Not available

5

Husqvarna 603000456

Brush Holder Assembly

Note: (cw) (includes item 6)

$

$

Not available

6

Husqvarna 603000547

Brush Spring Set

$

$

Not available

7

Husqvarna 603000529

Brush and Screw Set

Note: (cw)

$

$

Not available

8

Husqvarna 603000530

Front BrackGt

$

$

Not available

9

Husqvarna 603000531

Retainer

$

$

Not available

10

Armature

$

$

Not available

11

Husqvarna 603000533

Field Coil Housing

$

$

Not available

12

Husqvarna 603000534

Pole Set

$

$

Not available

13

Husqvarna 603000535

Screw Set

$

$

Not available

14

Husqvarna 603000536

Field Stator Coil Assembly

$

$

Not available

15

Husqvarna 603000537

F Insulator Set

$

$

Not available

16

Husqvarna 603000538

DF Insulator

$

$

Not available

17

Husqvarna 603000539

A Connector

Note: (cw)

$

$

Not available

18

Husqvarna 603000540

Screw and Mold Assembly

$

$

Not available

19

Husqvarna 603000541

Brush Connector Assembly

Note: (cw)

$

$

Not available

20

Husqvarna 603000542

Cover Set

Note: (includes items 21 and 22)

$

$

Not available

21

Brush Inspection Port Cover

$

$

Not available

22

Brush Port Cover w/Drain

$

$

Not available

23

Husqvarna 603000543

Rear Bracket

Note: (cw)

$

$

Not available

24

Husqvarna 603000544

Nut and Screw Set

Note: (includes items 25 through 29)

$

$

Not available

25

Husqvarna 603000574

Brush Holder Asm Screw

$

$

Not available

26

Washer, M5 Flat

$

$

Not available

27

Washer, M14 Lock

$

$

Not available

28

Nut, Hex, M14 x 2

$

$

Not available

29

Screw, M5 x 0.8 x 18mm

$

$

Not available

30

Husqvarna 603000545

Nut and Washer Set

$

$

Not available

31

Husqvarna 603000546

Nut and Washer Set

$

$

Not available

32

Husqvarna 603000548

Through Bolt Set

$

$

Not available

33

Husqvarna 603000609

Spacer

$

$

Not available

34

Husqvarna 603000532

Armature Asm Conversion Kit

Note: (includes items 35 through 38)

$375.99

$

Usually ships in 3-10 days

0

35

Husqvarna 603000164

Key, Starter/Generator

$

$

Not available

36

Husqvarna 603000221

Pulley, Starter/Generator

Note: Item 36 will ONLY fit Model G425419 Starter/Generator.

$

$

Not available

37

Armature

$

$

Not available

38

Husqvarna 603000609

Spacer

$

$

Not available
