HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) FUEL SYSTEM 2 Parts Diagram

4x2 Utility Vehicle

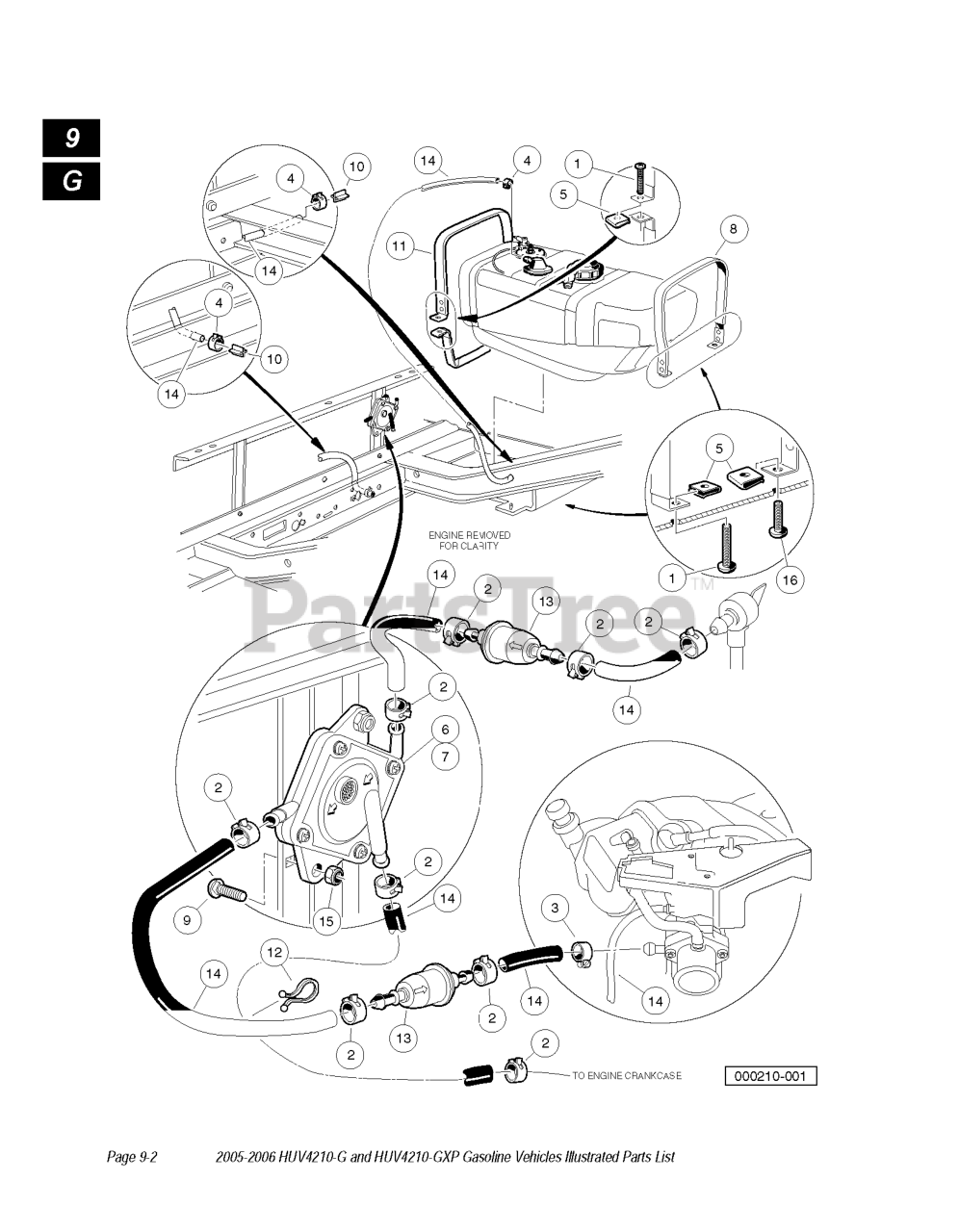

FUEL SYSTEM 2 Parts Diagram

  • Title

9

Husqvarna 603003625

BOLT, 1/4-20 X 1.0 RD HD SQ NK

$

$

Not available

12

Husqvarna 603000624

CLAMP, PLASTIC TIE

$

$

Not available

10

Husqvarna 603000503

VENT BARB

$

$

Not available

7

Husqvarna 603000231

SQ IMPULSE PUMP REBUILD KIT

$

$

Not available

8

Husqvarna 603000237

FUEL STRAP ASSEMBLY REAR

$

$

Not available

5

Husqvarna 603000210

NUT, 1/4-20 SPEED

$

$

Not available

6

Husqvarna 603000230

PUMP, IMPULSE FUEL

$

$

Not available

4

Husqvarna 603000185

CLAMP

$

$

Not available

16

Husqvarna 603000090

SCREW 1/4-20 X .75

$

$

Not available

14

Husqvarna 531309542

HOSE, FUEL, 1/4SAEJ1737 BULK

$

$

Not available

2

Husqvarna 603000149

CLAMP

$

$

Not available

3

Husqvarna 603000181

LAMP, 3/8" S.S HOSE

Note: SCREW TYPE

$

$

Not available

13

Husqvarna 603000008

FILTER FUEL 30 MICRON

$

$

Not available

11

Husqvarna 603000611

FUEL STRAP ASSY, FRONT

$

$

Not available

15

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

1

Husqvarna 603000131

SCREW PHL TRUSS

$

$

Not available
