HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Brake Pedal Assembly Parts Diagram

4x2 Utility Vehicle

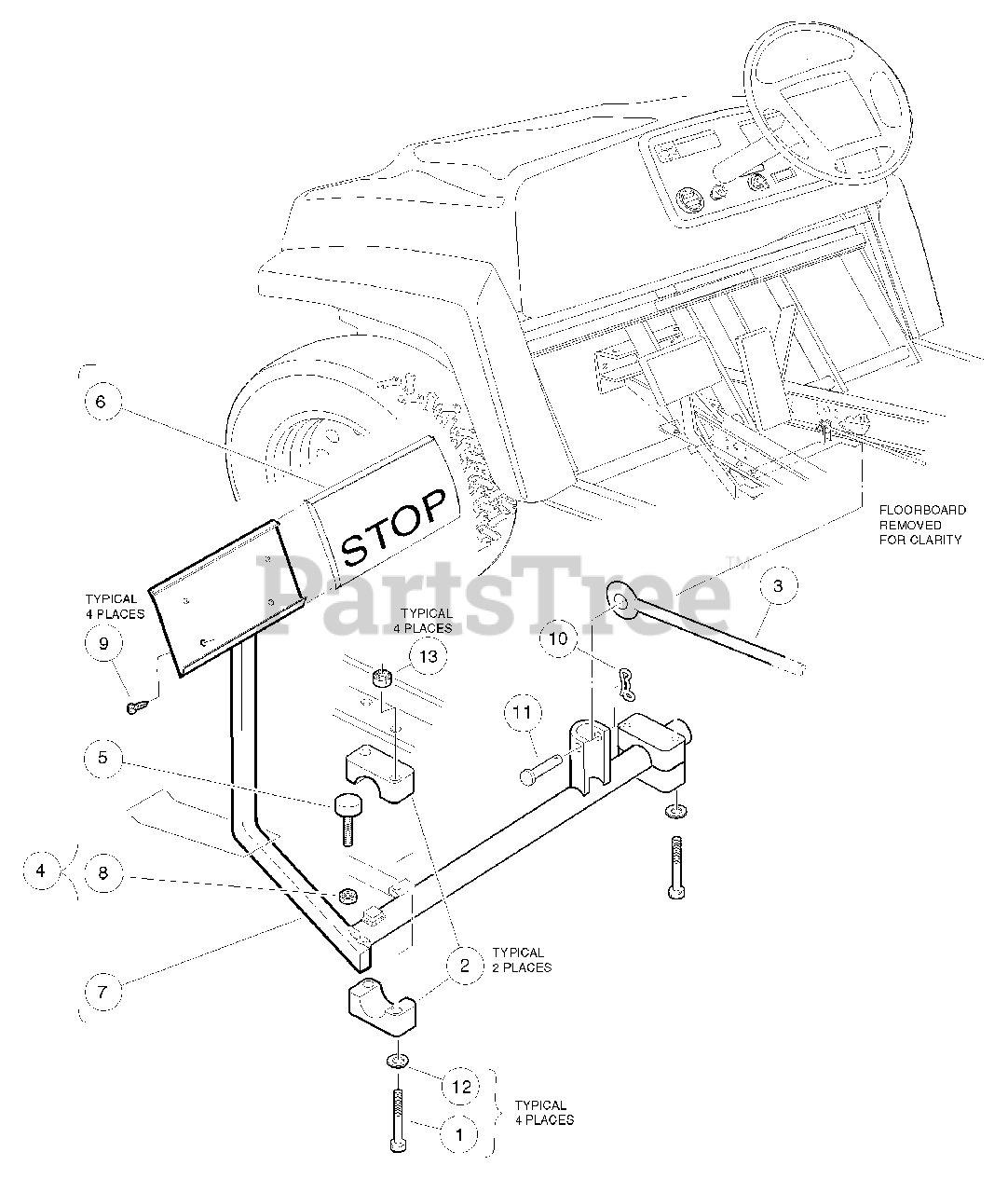

Brake Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 603000115

Screw, 5/16-18 X 2.50 Hex Cap

$

$

Not available

2

Husqvarna 603000121

Package, Brake Mounting Block

$

$

Not available

3

Husqvarna 603000610

Rod, Equalizer, 13.30"

$

$

Not available

4

Husqvarna 603000704

Assembly, Brake Pedal

Note: (includes items 5 through 9)

$

$

Not available

5

Husqvarna 603000113

Bumper, Rubber

$

$

Not available

6

Husqvarna 603000703

Pad, Hydraulic Brake Pedal

$

$

Not available

7

Husqvarna 603004415

Brake Pedal Weld Asm

$

$

Currently unavailable

8

Husqvarna 603000062

Nut, 1/4-20 Hex

$

$

Not available

9

Husqvarna 603000081

Screw, #10-16 Type AB, Sheet Metal

$

$

Not available

10

Husqvarna 603000872

Pin, Bow Tie Locking - .072

$

$

Not available

11

Husqvarna 603002601

Pin, 3/8 X 1-5/16 Clevis

$

$

Not available

12

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

13

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available
