HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Carburetor Assembly, FE400 Engine Parts Diagram

4x2 Utility Vehicle

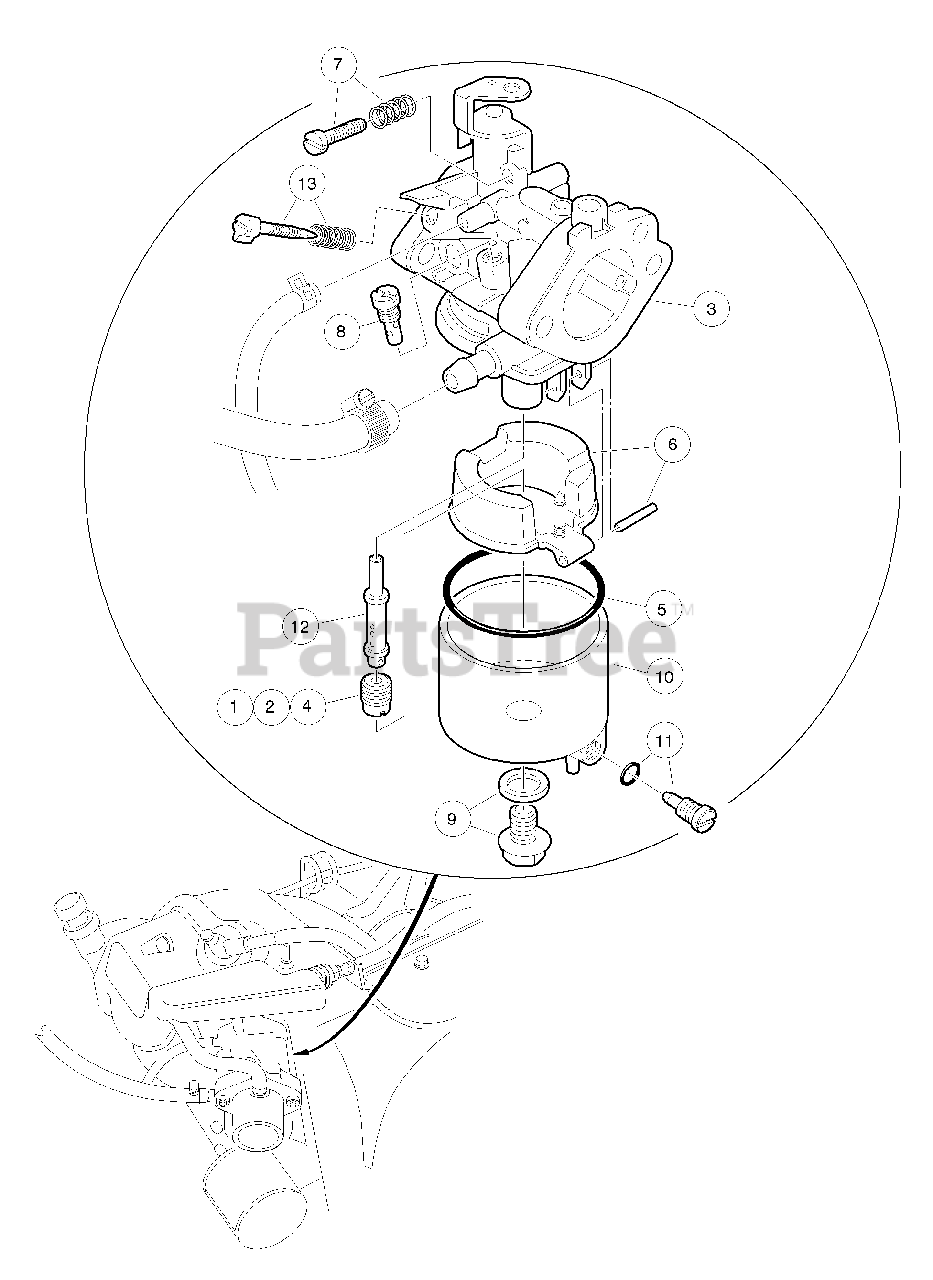

Carburetor Assembly, FE400 Engine Parts Diagram

  • Title

1

Husqvarna 603000467

Jet, Altitude, # 82

$

$

Not available

2

Husqvarna 603000468

Jet, Altitude, # 85

$

$

Not available

3

Husqvarna 603000852

Carburetor

Note: (includes items 4 through 13)

$

$

Not available

4

Husqvarna 603000469

Jet, # 88

$

$

Not available

5

Husqvarna 603000297

Gasket, Carburetor Bowl OHV

$

$

Not available

6

Husqvarna 603000319

Float Assembly

$

$

Not available

7

Husqvarna 603000325

Screw Assembly

$

$

Not available

8

Husqvarna 603000353

Jet #45 Pilot

$

$

Not available

9

Husqvarna 603000361

Bolt

$

$

Not available

10

Husqvarna 603000409

Chamber Assembly, Float

Note: (includes item 11)

$

$

Not available

11

Husqvarna 603000324

Screw Assembly

$

$

Not available

12

Husqvarna 603000858

Nozzle, Main, Carburetor

$

$

Not available

13

Assembly, Pilot Air Screw

$

$

Not available
