HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Drive Clutch Parts Diagram

4x2 Utility Vehicle

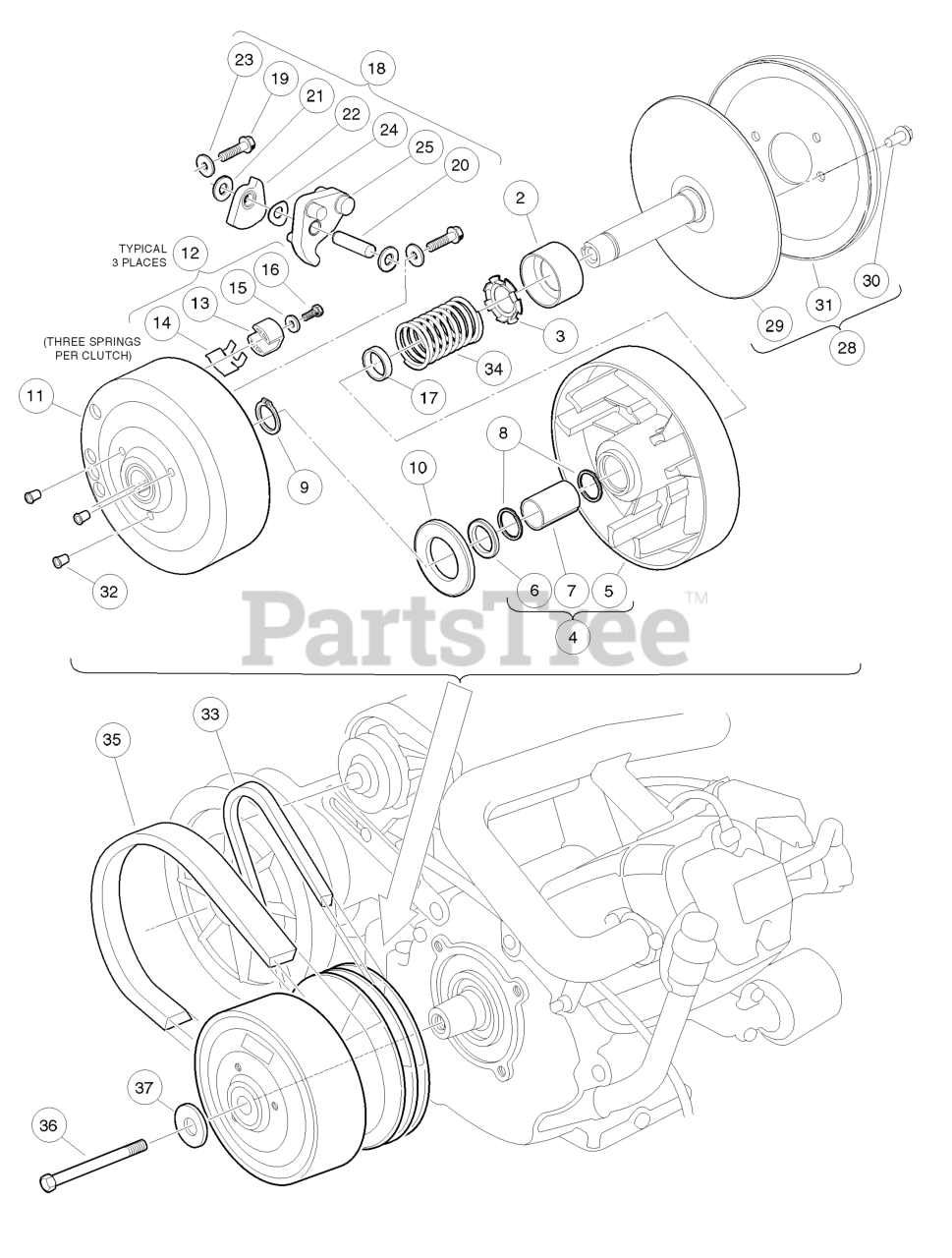

Drive Clutch Parts Diagram

  • Title

1

Husqvarna 603000517

DRIVE CLUTCH ASSY. FE 400

Note: (includes items 2 through 37)

$

$

Not available

2

Husqvarna 603000195

BEARING IDLER

$

$

Not available

3

Husqvarna 603000196

RETAINER, SPRING

$

$

Not available

4

Husqvarna 603000197

MOVABLE FACE ASSEMBLY

Note: (includes items 5 through 7)

$

$

Not available

5

Drive Clutch Movable Face

$

$

Not available

6

Husqvarna 603000198

RETAINER

$

$

Not available

7

Bushing, Split, Drive Clutch

$

$

Not available

8

Husqvarna 603000199

RING, SPIRAL BACKUP

$

$

Not available

9

Husqvarna 603000200

RING .810" INTERNAL

$

$

Not available

10

Husqvarna 603000201

WASHER, THRUST

$

$

Not available

11

Husqvarna 603000202

DRIVE HUB ASSY

$

$

Not available

12

Husqvarna 603000227

DRIVE CLUTCH BUTTON KIT

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000203

DRIVER, DRIVE CLUTCH

$

$

Not available

14

Husqvarna 603000219

SPRING, DRIVE BUTTON

$

$

Not available

15

Husqvarna 603000051

WASHER FLAT

$

$

Not available

16

Husqvarna 603000092

SCREW, # 10-24 X .50 HEX

$

$

Not available

17

Husqvarna 603000285

SPACER, FIXED FACE SHAFT

$

$

Not available

18

Husqvarna 603000369

DRIVE CLUTCH WEIGHT KIT DS OHV

Note: (includes items 19 through 25)

$

$

Not available

19

Husqvarna 603003068

SCREW, 1/4-20 X 1.00 HEX HEAD

$

$

Not available

20

Pin, 0.3752 X 1.50 Dowel

$

$

Not available

21

Husqvarna 603000204

WASHER

$

$

Not available

22

Clutch Weight, Secondary

$

$

Not available

23

Washer

$

$

Not available

24

Husqvarna 603000282

WASHER, WAVE

$

$

Not available

25

Weight, Primary

$

$

Not available

26

Husqvarna 603000473

FIXED FACE DRIVE

Note: (includes items 27 and 28)

$

$

Not available

27

Desiccant Bag

Note: (Not Shown)

$

$

Not available

28

Fixed Face Drive

Note: (includes items 29 through 31)

$

$

Not available

29

Fixed Face Assembly, Drive Clutch

$

$

Not available

30

Husqvarna 603000220

SCREW

$

$

Not available

31

Pulley, Drive Clutch

$

$

Not available

32

Cap Plug

$

$

Not available

33

Husqvarna 603000589

BELT, STARTER-GENERATOR

$

$

Not available

34

Husqvarna 603000828

SPRING DRIVE CLUTCH FE400

$

$

Not available

35

Husqvarna 603000830

DRIVE BELT

$

$

Not available

36

Husqvarna 603004380

SCREW 3/8-24X5.5 HEX LOC PTCH

$

$

Not available

37

Husqvarna 603003617

WASHER, 3/8 TYPE B FLAT

$

$

Not available
