HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Electrical Components, Dash Panel Parts Diagram

4x2 Utility Vehicle

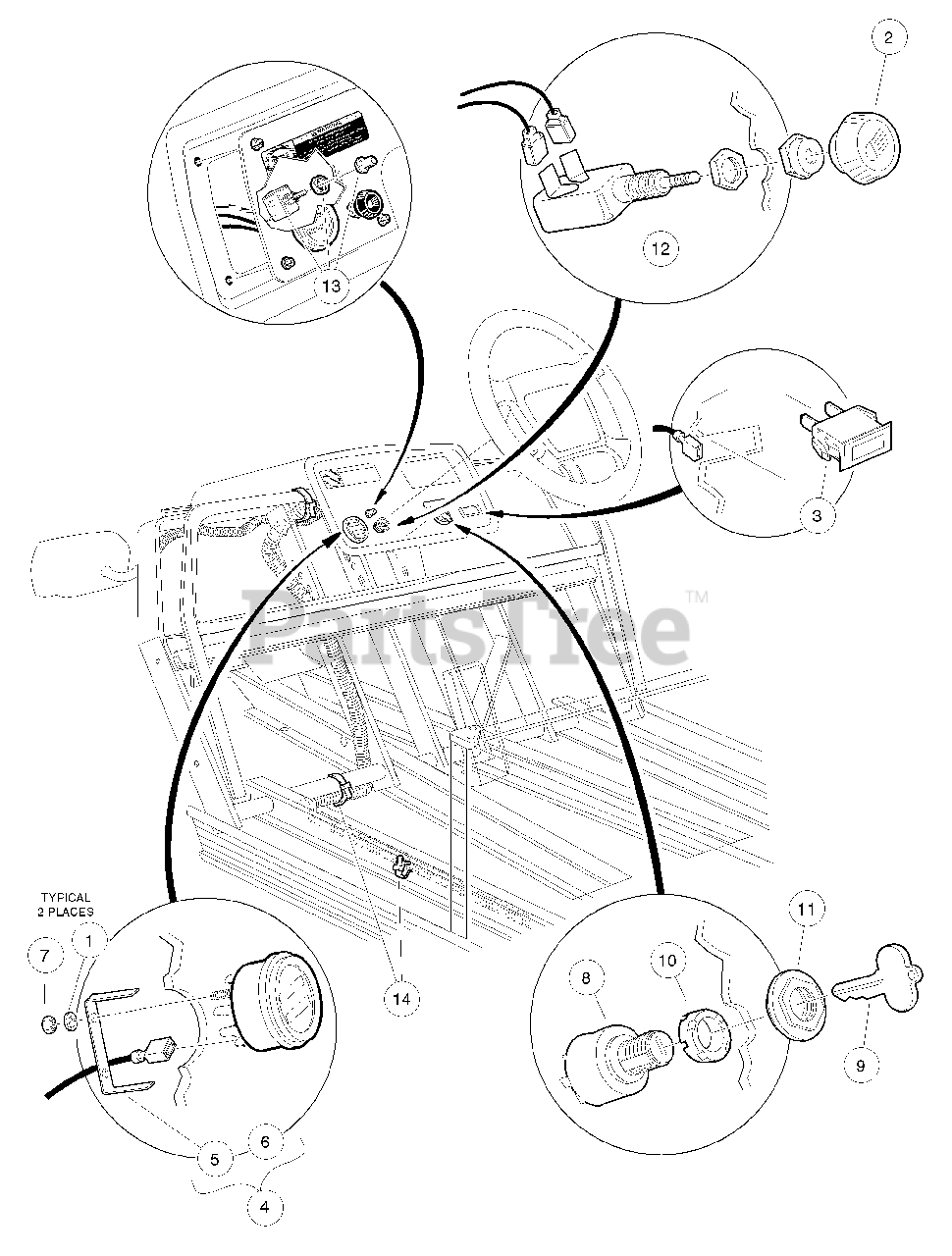

Electrical Components, Dash Panel Parts Diagram

  • Title

1

Lockwasher, M4

$

$

Not available

2

Husqvarna 603000191

Knob, Light Switch

$

$

Not available

3

Husqvarna 603000366

Liqht, Oil

$

$

Not available

4

Husqvarna 603002619

Gauge, Fuel/Hour, with Bracket
(Superseded to 603004603)

Note: (includes items 5 and 6)

$

$

Not available

5

Bracket, Fuel Gauge/Hour Meter

$

$

Not available

6

Gauge, Fuel/Hour

$

$

Not available

7

Husqvarna 603000633

Nut, M4-0.7

$

$

Not available

8

Husqvarna 603000727

Key Switch 12v Key Start

$

$

Not available

9

Husqvarna 603000728

Key Set

$

$

Not available

10

Husqvarna 603000760

Spacer, Keyswitch

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 603000761

Nut, Key Switch

$

$

Not available

12

Husqvarna 603000762

Switch, Light

$

$

Not available

13

Husqvarna 603000794

Switch

$

$

Not available

14

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available
