HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Front Body Trim Parts Diagram

4x2 Utility Vehicle

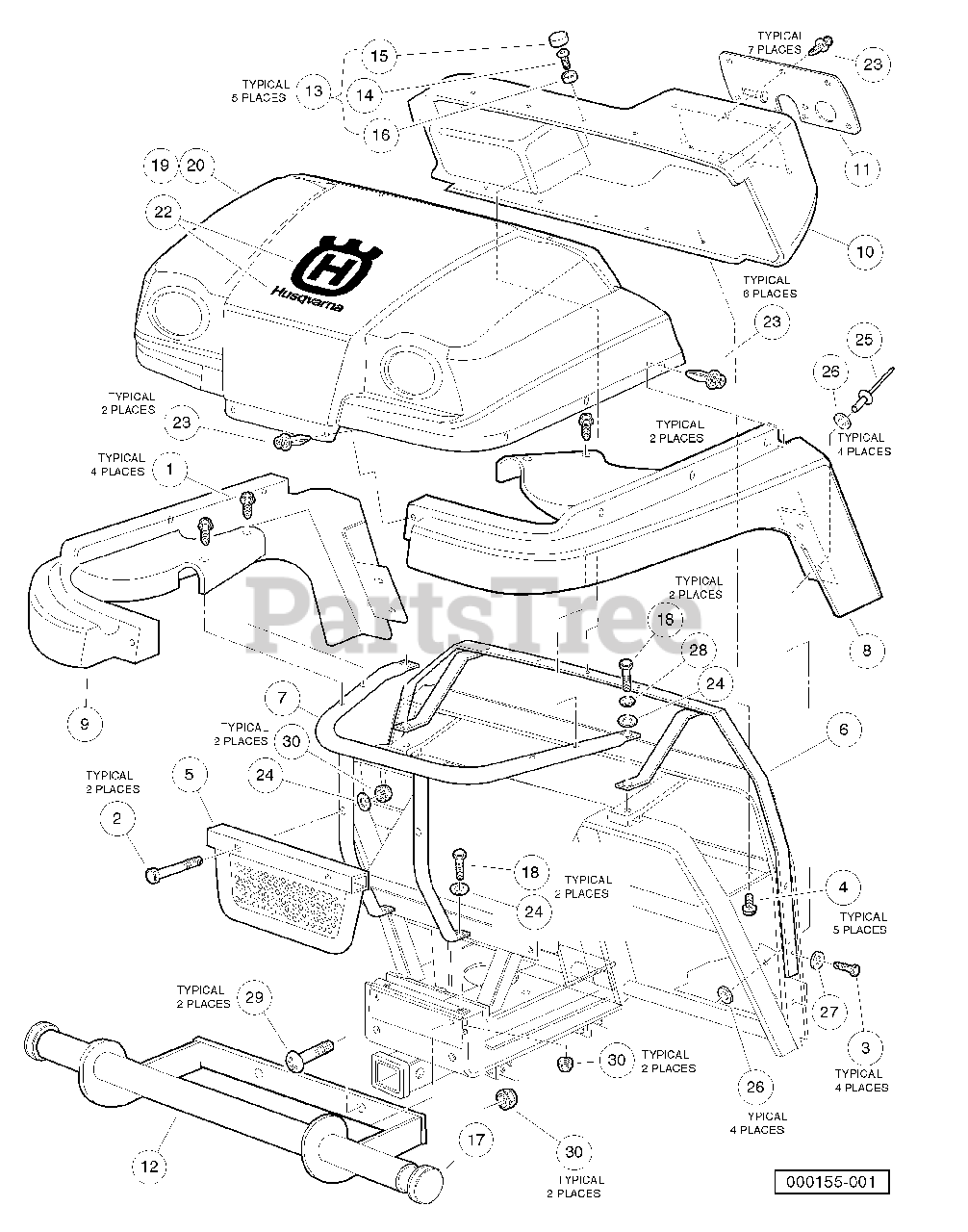

Front Body Trim Parts Diagram

  • Title

1

Husqvarna 603000110

Screw, Hex Washer Head 1/4-14 X .75

$

$

Not available

2

Husqvarna 603000115

Screw, 5/16-18 X 2.50 Hex Cap

$

$

Not available

3

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

4

Husqvarna 603000394

Screw, #12 X .50 Hex, Washer-Head

$

$

Not available

5

Husqvarna 603000644

Grill Assembly

$

$

Not available

6

Husqvarna 603000645

Support, Upper Cowl

$

$

Not available

7

Husqvarna 603000646

Support, Lower Fender

$

$

Not available

8

Husqvarna 603000673

Fender, Left Front

$

$

Not available

9

Husqvarna 603000675

Fender, Right Front

$

$

Not available

10

Husqvarna 603000677

Dashboard

$

$

Not available

11

Husqvarna 603000707

Panel, Dash

$

$

Not available

12

Husqvarna 603000768

Bumper Assembly

$

$

Not available

13

Husqvarna 603000770

Kit, Dash Hardware

Note: (includes items 14 through 16)

$

$

Not available

14

Husqvarna 603000696

Screw, 1/4-20 X .75 Torx Pn Hd

$

$

Not available

15

Husqvarna 603000729

Cap, 1/4" Plastic Screw Head

$

$

Not available

16

Husqvarna 603000737

Washer, 1/4 Id Scalloped Plast

$

$

Not available

17

Husqvarna 603000772

Cap-Tube

$

$

Not available

18

Husqvarna 603000791

Screw, 5/16-18 X 2.50 Hex Cap

$

$

Not available

19

Husqvarna 603001678

Cowl, Camo

$475.99

$

Usually ships in 3-10 days

0

20

Husqvarna 603001679

Cowl, Orange

$

$

Not available

21

Husqvarna 603002648

Floormat

$

$

Not available

22

Husqvarna 603001793

Decal, Husqvarna Cowl

$51.99

$

In Stock, only 1 left!

0

23

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

24

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

25

Husqvarna 603000067

Rivet, 3/16 X .500 Alum Pop

$

$

Not available

26

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

27

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

28

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

29

Husqvarna 603000077

Screw, 5/16-18 X 1.25 Truss Hd

$

$

Not available

30

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available
