HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Hydraulic Brake System Parts Diagram

4x2 Utility Vehicle

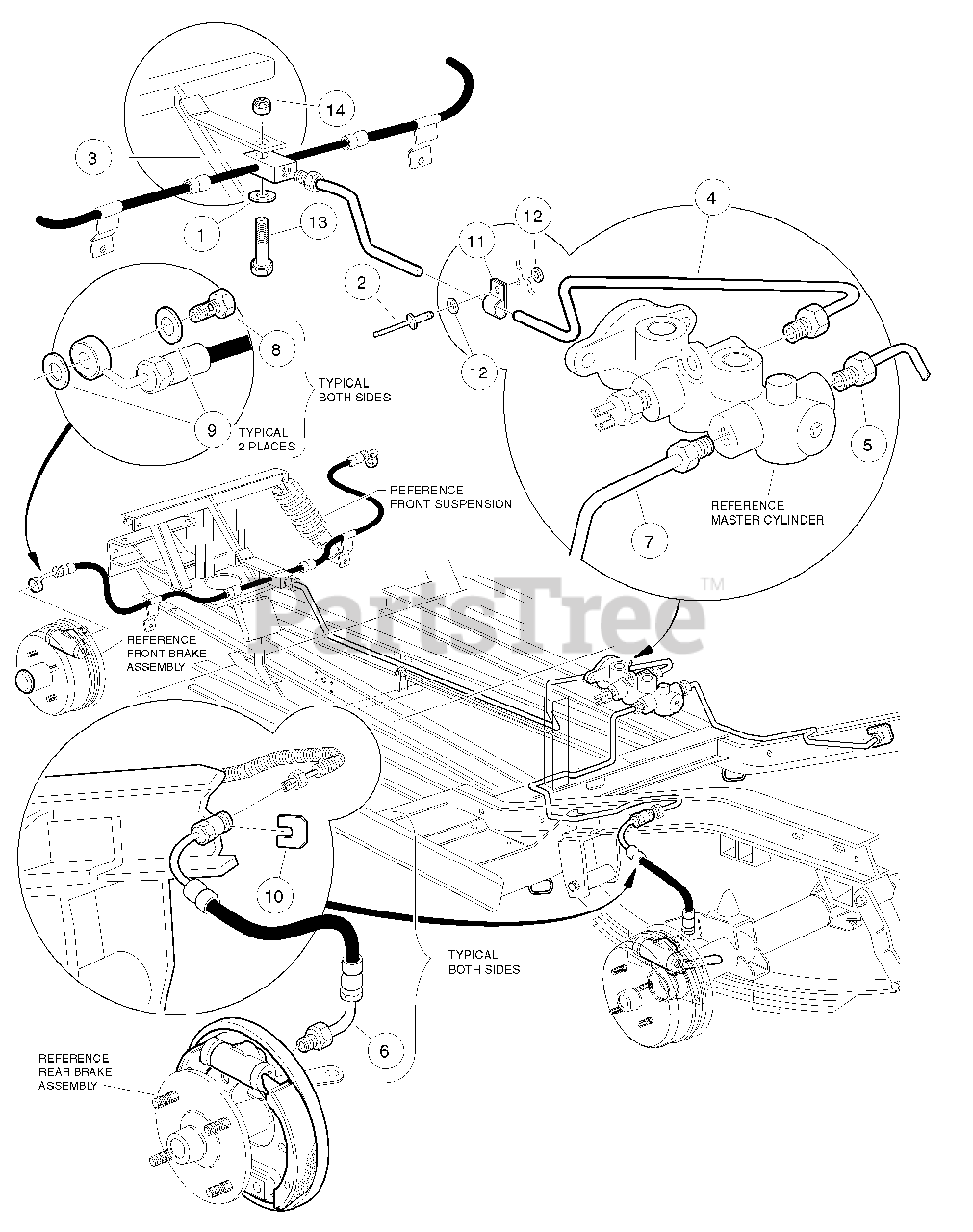

Hydraulic Brake System Parts Diagram

  • Title

1

Husqvarna 603000194

Washer, 1/4 Flat

$

$

Not available

2

Husqvarna 603000214

Rivet, 3/16 Diameter Drive

$

$

Currently unavailable

3

Husqvarna 603000713

Hose, Hydraulic, Front Brake

$

$

Not available

4

Husqvarna 603000714

Line, Hydraulic Rear Brake Front

$

$

Not available

5

Husqvarna 603000715

Line, Hydraulic Rear Brake, Right-Hand

$

$

Not available

6

Husqvarna 603000716

Hose Flex Rear

$

$

Not available

7

Husqvarna 603000723

Line Hyd Rear Brake LS

$

$

Not available

8

Husqvarna 603000725

Bolt, Banjo

$

$

Not available

9

Husqvarna 603000730

Copper Washer

$

$

Not available

10

Husqvarna 603000732

Horse Shoe Clamp

$

$

Not available

11

Husqvarna 603000733

P-Clamp

$

$

Not available

12

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

13

Husqvarna 603000079

Screw, 1/4-20 X 125 Hex-Head Cap

$

$

Not available

14

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available
