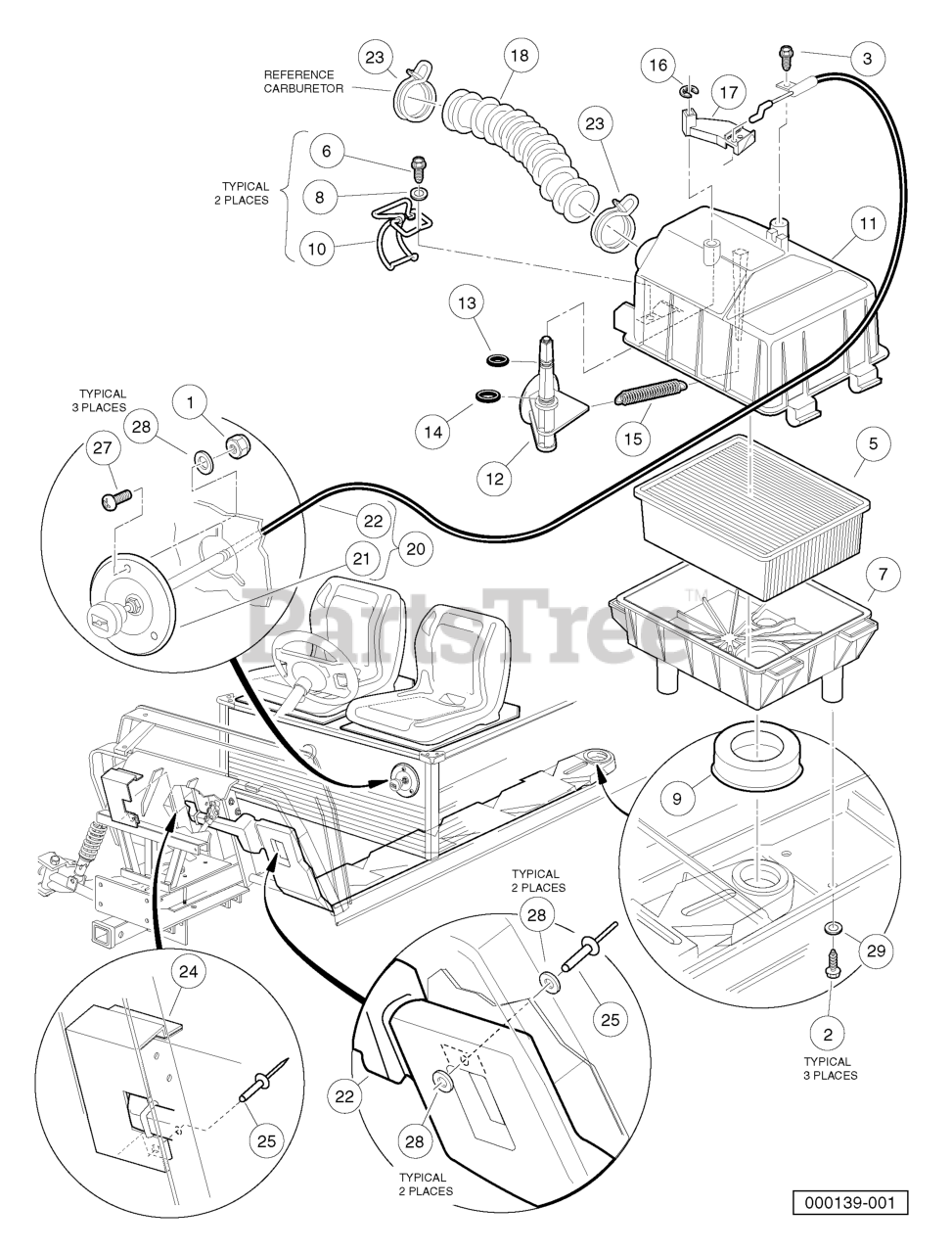

HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) INTAKE DUCT, CHOKE, AND AIR BOX ASSEMBLY Parts Diagram

4x2 Utility Vehicle

INTAKE DUCT, CHOKE, AND AIR BOX ASSEMBLY Parts Diagram

  • Title

17

Husqvarna 603000498

RETAINING RING .25 SHAFT

$

$

Not available

30

Husqvarna 603000069

SCREW, #10-24 X .75 PHL PAN HD

$

$

Not available

24

Husqvarna 603000618

CLAMP, 1.58" ID HOSE

$

$

Not available

8

Husqvarna 603000555

WASHER, #8 SS FLAT WASHER

$

$

Not available

20

Husqvarna 603000595

ASM, CHOKE CABLE CA2

$

$

Not available

29

Husqvarna 603000067

RIVET, 3/16 X .5 ALUM POP

$

$

Not available

28

Husqvarna 603000085

RIVET

$

$

Not available

4

Husqvarna 603000501

AIR BOX ASSY

$

$

Not available

3

Husqvarna 603000491

SCREW, #8 X .500 HX HD HI-LO

$

$

Not available

5

Husqvarna 603000004

AIR FILTER OHV

$

$

Not available

1

Husqvarna 603000141

LOCKNUT

$2.49

$

Usually ships in 3-10 days

0

16

Husqvarna 603000497

SPRING, EXTENSION RETURN

$

$

Not available

2

Husqvarna 603000268

SCREW, #12-16 X .625 HI-LO

$

$

Not available

10

Husqvarna 603000594

LATCH, WIREFORM

$

$

Not available

25

Husqvarna 603000800

AIR DUCT SHIELD FIELD

$

$

Not available

9

Husqvarna 603000592

SEAL, INTAKE

$

$

Not available

6

Husqvarna 603000491

SCREW, #8 X .500 HX HD HI-LO

$

$

Not available

21

Husqvarna 603000608

CHOKE CABLE BEZEL

$

$

Not available

31

Husqvarna 603000051

WASHER FLAT

$

$

Not available

23

Husqvarna 603000612

DUCT ASSY, CAII AIR

$

$

Not available

11

Husqvarna 603000619

TOP ASSY, AIR BOX

$

$

Not available

32

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

7

Husqvarna 603000494

BOTTOM, AIR BOX

$

$

Not available

19

Husqvarna 603000523

AIR INTAKE HOSE

$

$

Not available

18

Husqvarna 603000591

LEVER, CHOKE

$

$

Not available
