HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Latch Plate and Prop Rod Parts Diagram

4x2 Utility Vehicle

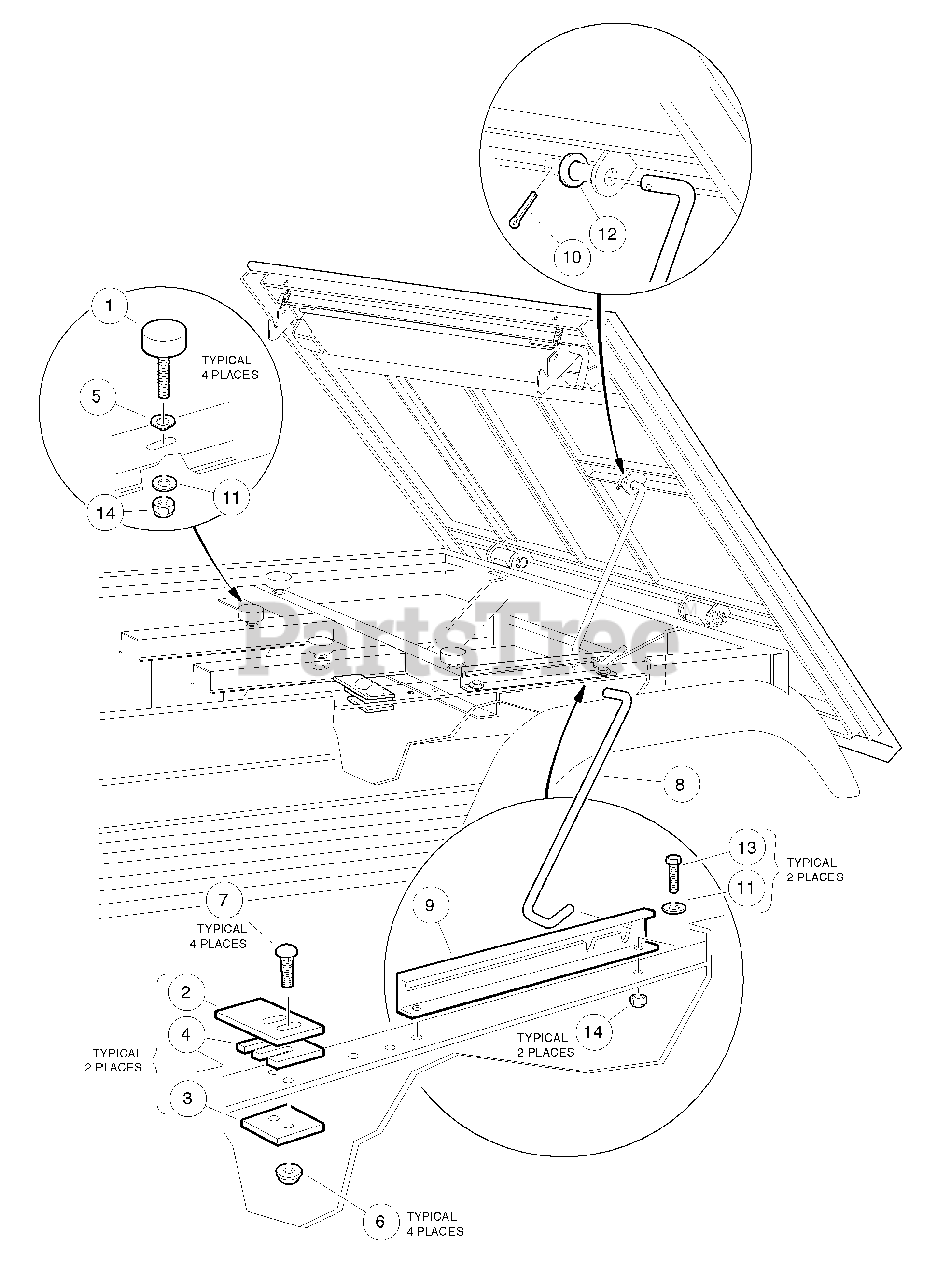

Latch Plate and Prop Rod Parts Diagram

  • Title

1

Husqvarna 603000113

Bumper, Rubber

$

$

Not available

2

Husqvarna 603000246

Latch Plate, Tilt Bed

$

$

Not available

3

Husqvarna 603000276

Plate, Latch Support

$

$

Not available

4

Husqvarna 603000278

Latch Plate Shim

$

$

Not available

5

Husqvarna 603000282

Washer, Wave

$

$

Not available

6

Husqvarna 603000521

Locknut, 1/4-20 Hex Whiz

$

$

Not available

7

Husqvarna 603000613

Bolt, Carriage, 1/4-20 X 1.0

$

$

Not available

8

Husqvarna 603000878

Rod, Prop

$

$

Not available

9

Husqvarna 603002763

Track, Prop Rod

$

$

Not available

10

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

11

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

12

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

13

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available

14

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available
