HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Light Bar Parts Diagram

4x2 Utility Vehicle

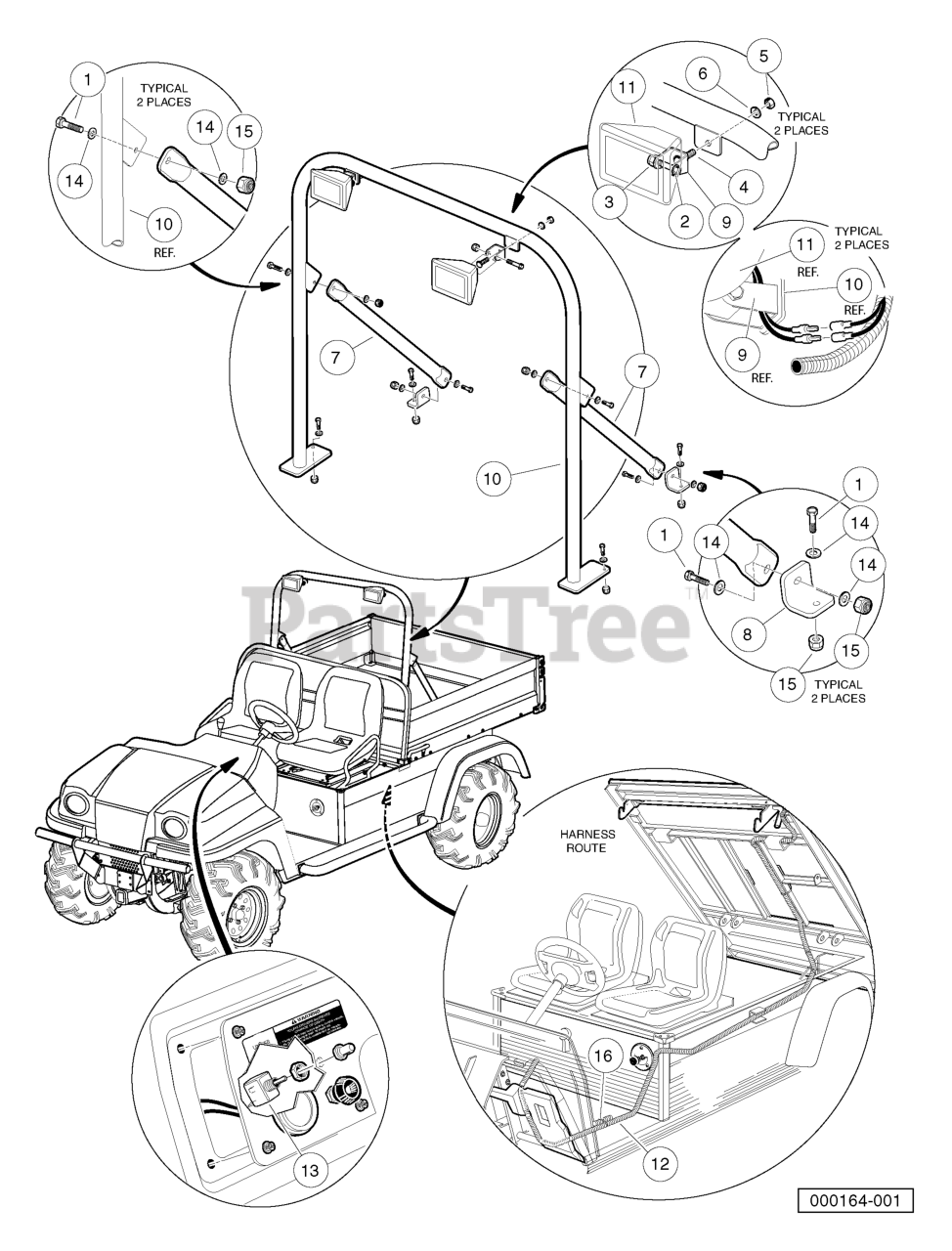

Light Bar Parts Diagram

  • Title

1

Husqvarna 603000116

SCREW HEX CAP

$

$

Not available

2

Screw, M8 x 1.25 x 47, Hex Flange

$

$

Not available

3

Nut, Nylon Lock, M8 x 1.25

$

$

Not available

4

Bolt, Carriage, M8 x 1.25 x 25

$

$

Not available

5

Nut, Hex, M8 x 1.25

$

$

Not available

6

Washer, lock, 5/16

$

$

Not available

7

Husqvarna 603000786

BRACE. LIGHT BAR

$

$

Not available

8

Husqvarna 603000787

BRACKET, BRACE MTG

$

$

Not available

9

Husqvarna 603000788

BRACKET, LIGHT MTG

$

$

Not available

10

Husqvarna 603000789

LIGHT BAR

$

$

Not available

11

Husqvarna 603000790

LIGHT, LIGHT BAR

$

$

Not available

12

Husqvarna 603000793

WIRE HARNESS, LIGHT BAR

$

$

Not available

13

Husqvarna 603000794

SWITCH

$

$

Not available

14

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

15

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

16

Husqvarna 603002963

TIE WRAP, 8" NYLON

$

$

Not available

17

Husqvarna 603001804

37.5 Watt Light Bar Bulb

Note: Item 17 is not illustrated.

$

$

Not available
